Operation CHARM: Car repair manuals for everyone.
Home >> Chevy Truck >> 2007 >> Equinox FWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Components

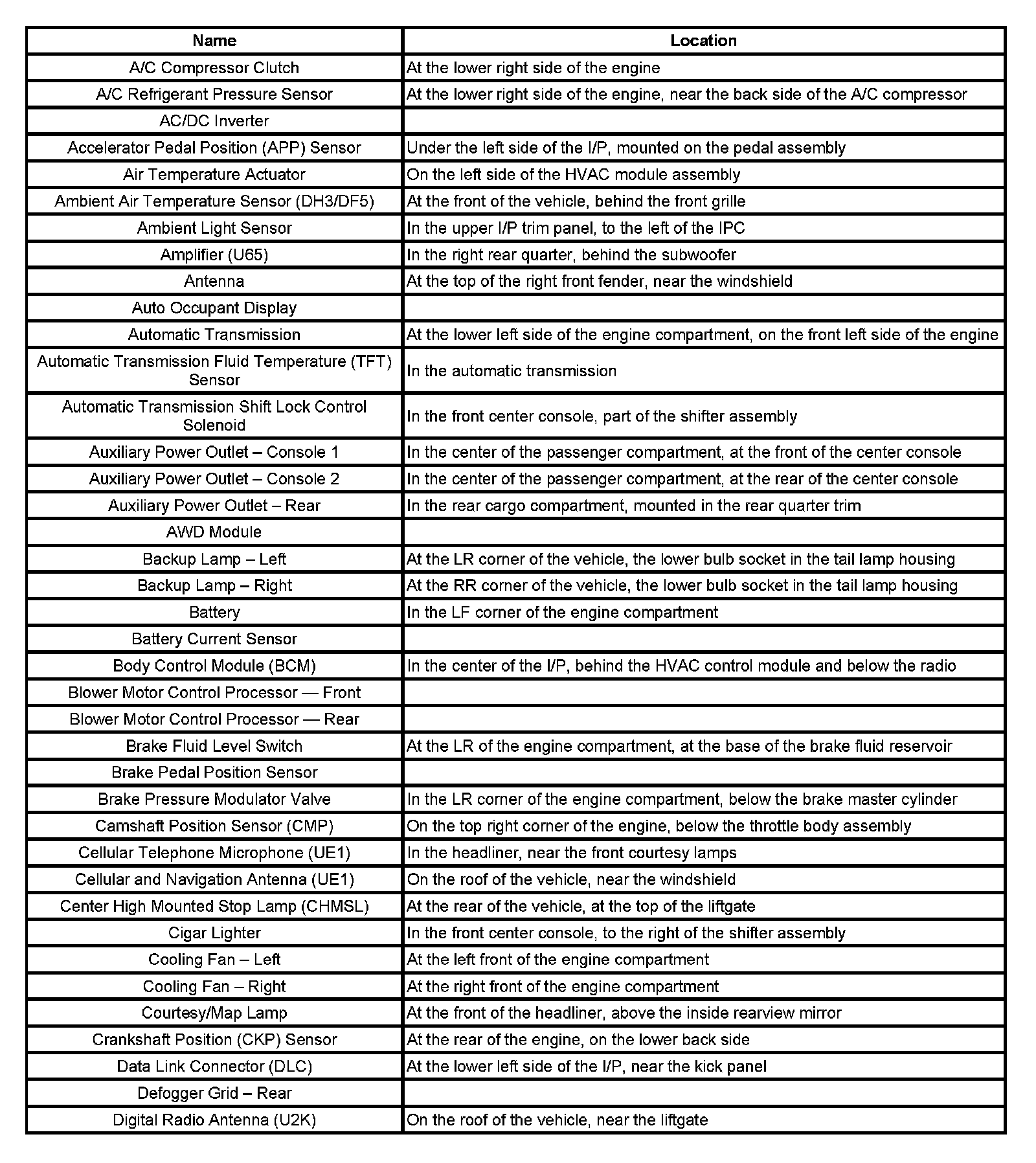

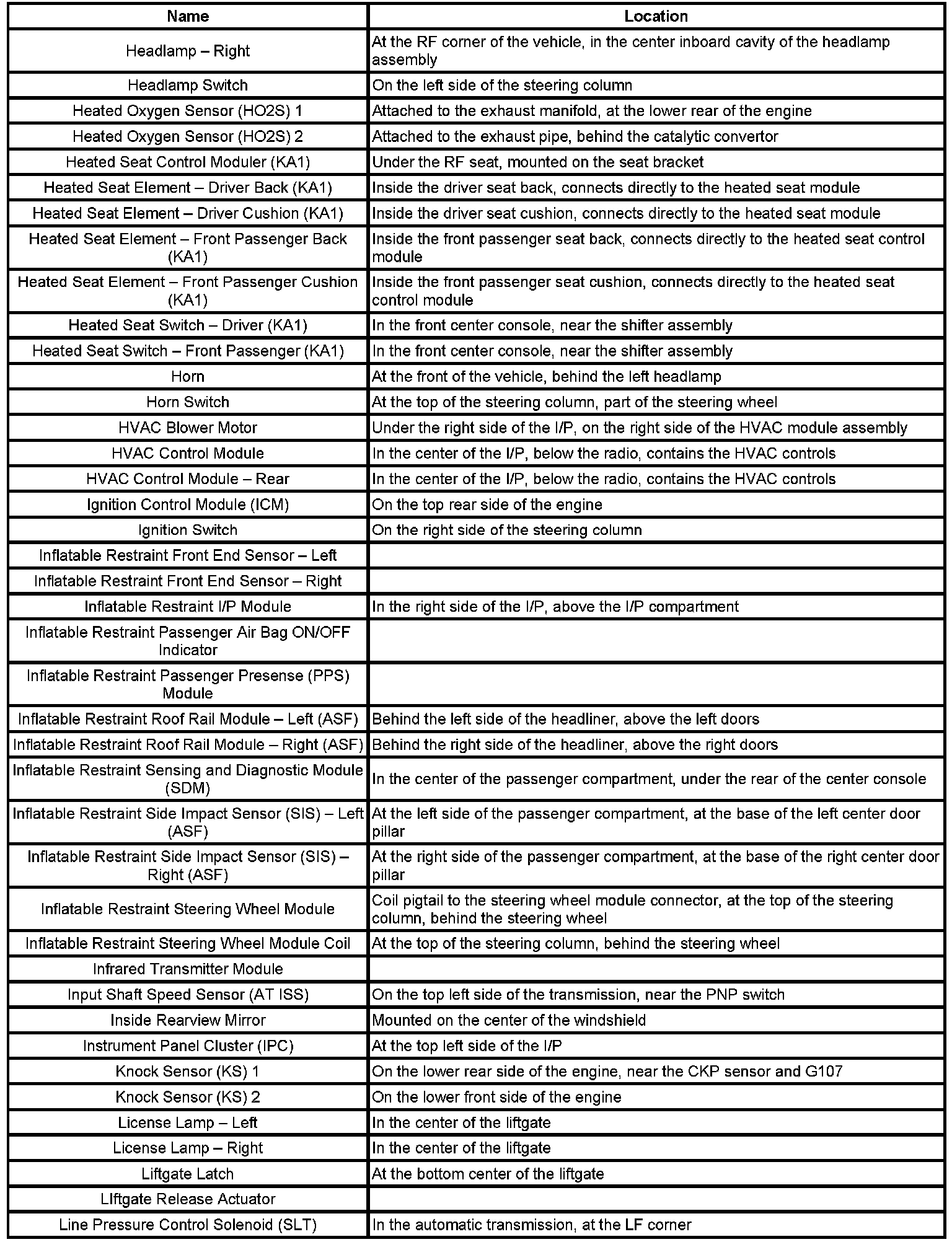

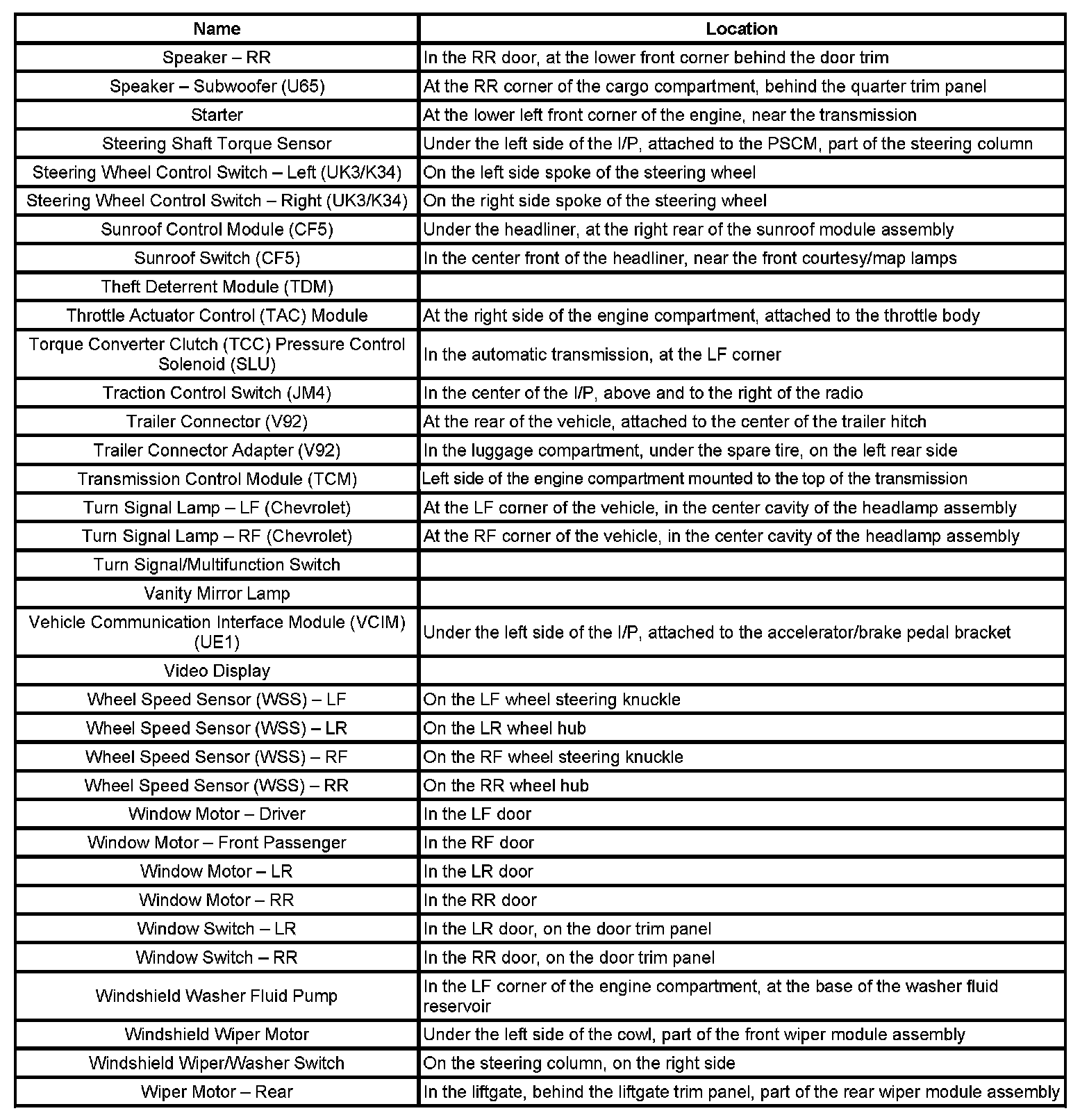

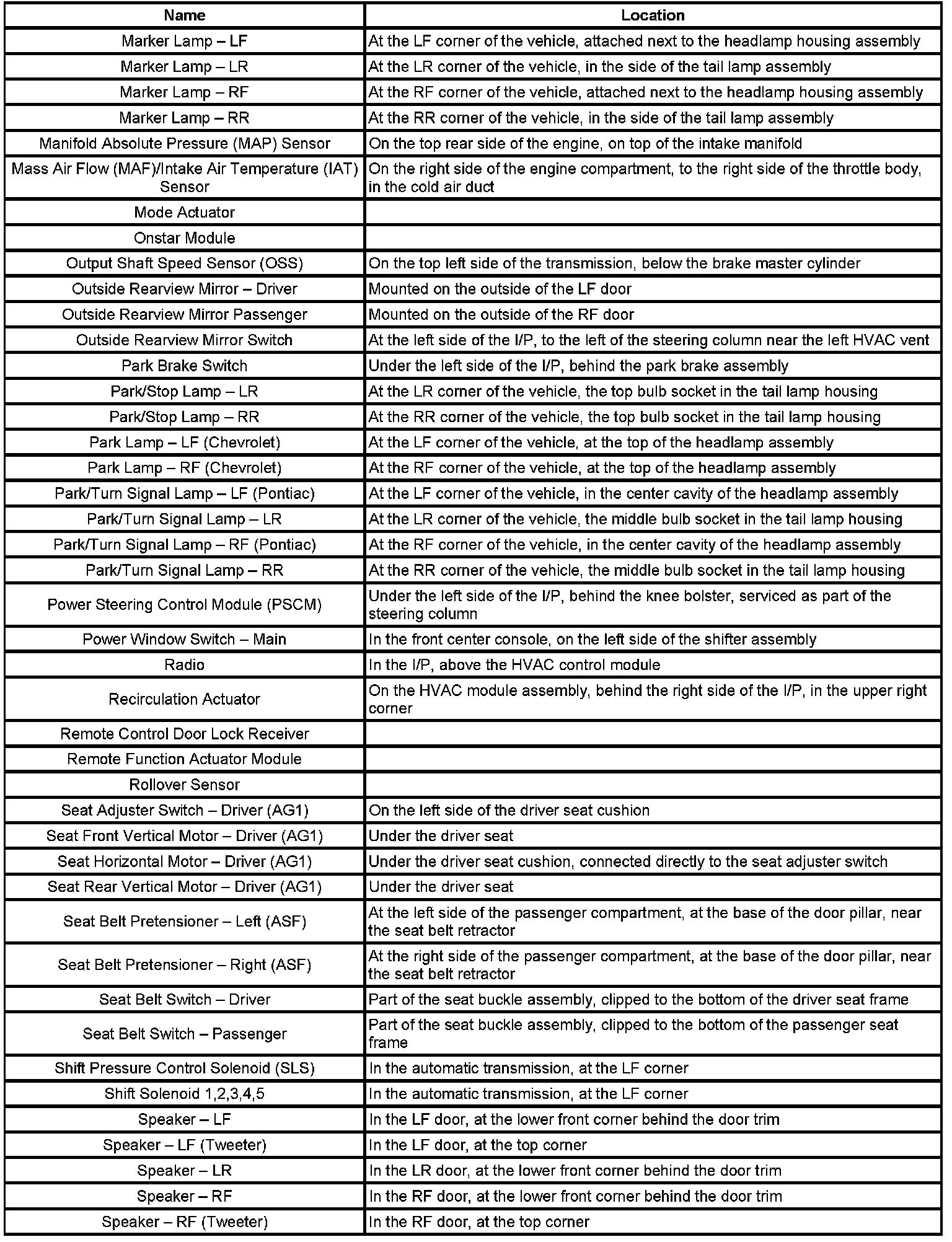

Components

A/C Co - Di:













Sp - Wi:
