4L60-E/4L65-E/4L70-E Automatic Transmission
>>
Transmission Fluid Pressure Manual Valve Position Switch Logic
Transmission Fluid Pressure Manual Valve Position Switch Logic
Transmission Fluid Pressure Manual Valve Position Switch Logic

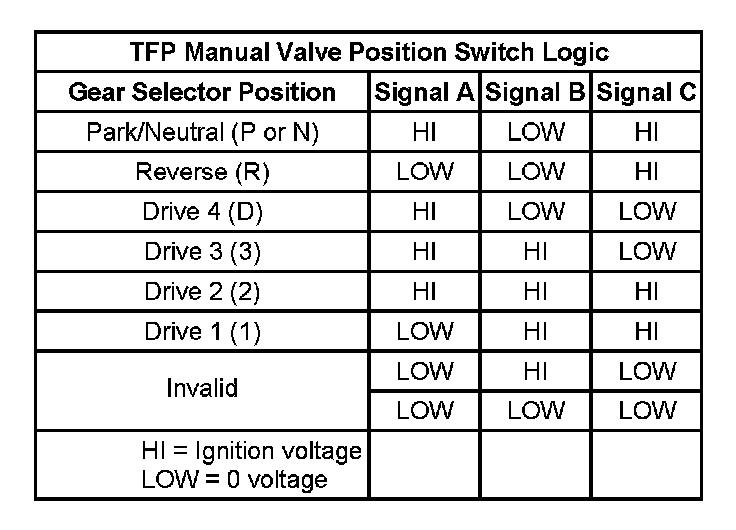

TFP Manual Valve Position Switch Logic:
