Throttle Position Sensor



Engine Controls Connector End Views

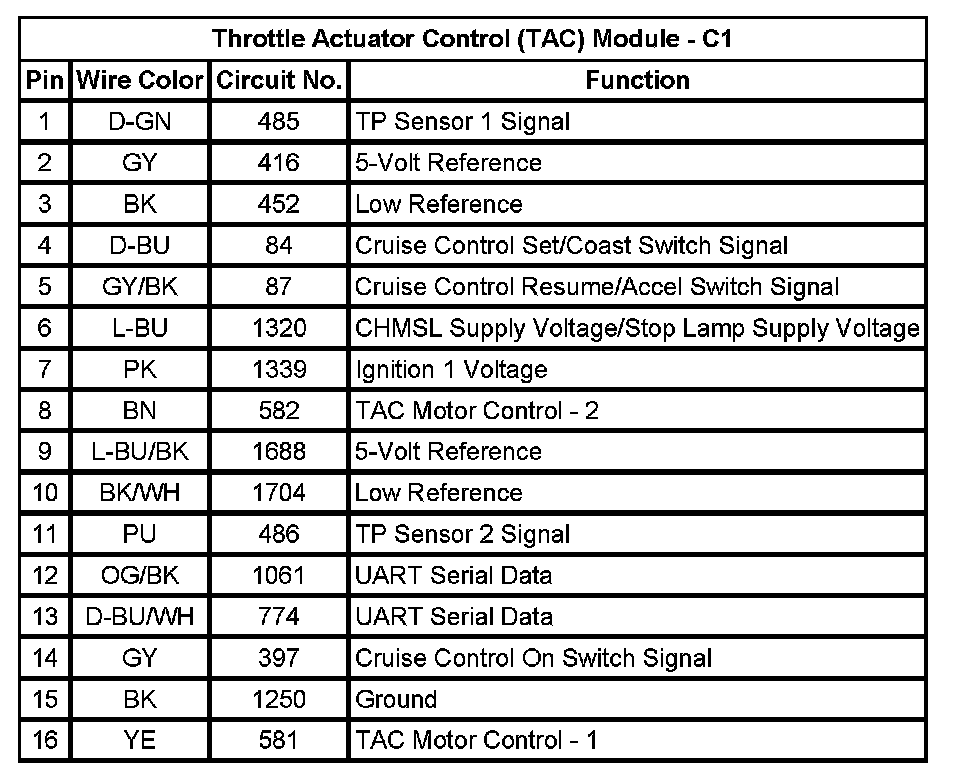

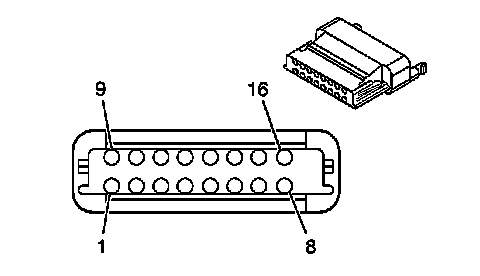

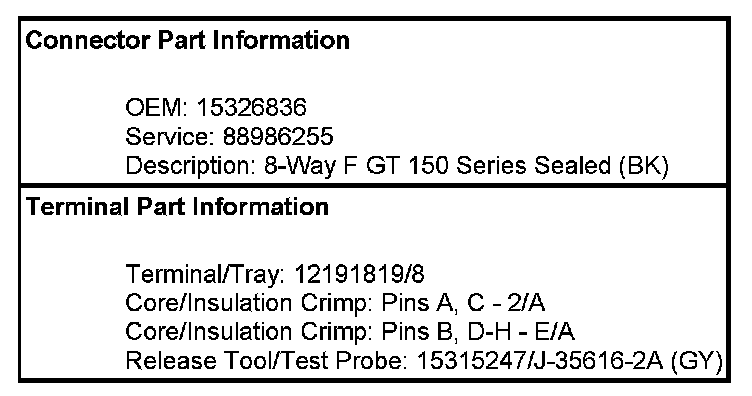

Throttle Actuator Control (TAC) Module - C1

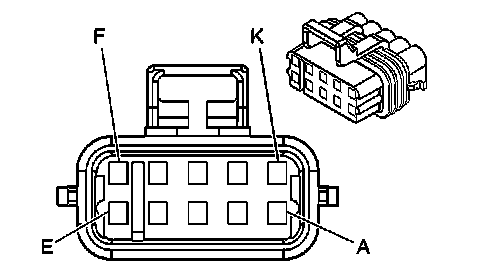

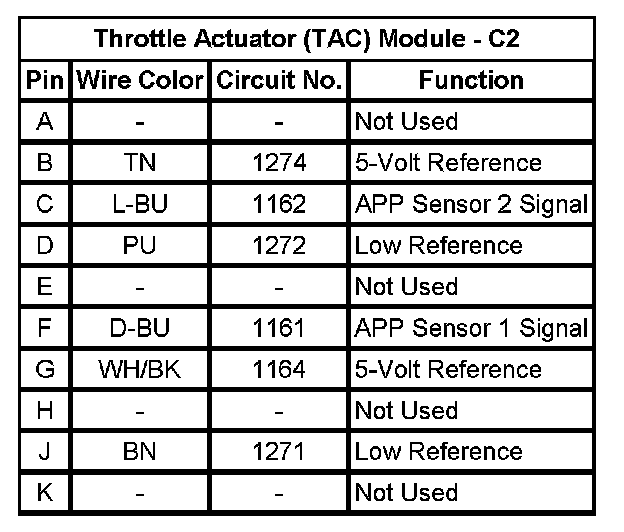

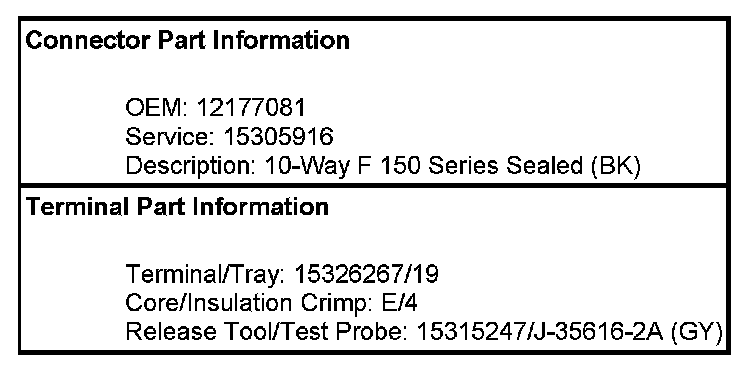

Throttle Actuator Control (TAC) Module - C2

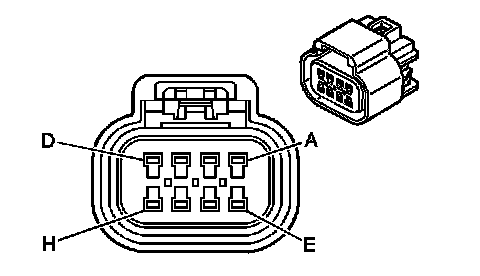

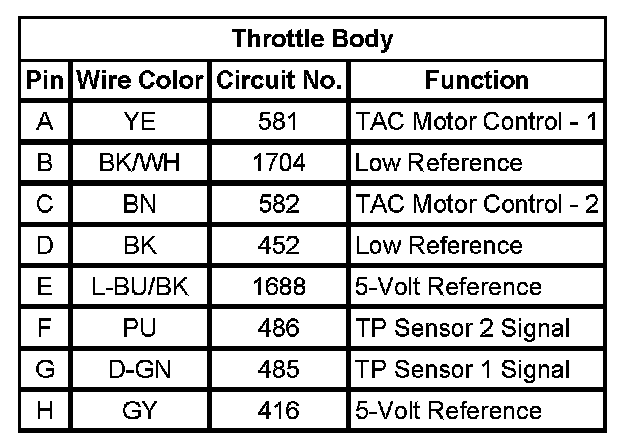

Throttle Body
