Heated Glass Element
>>
Diagrams
>>
Connector Views
Connector Views

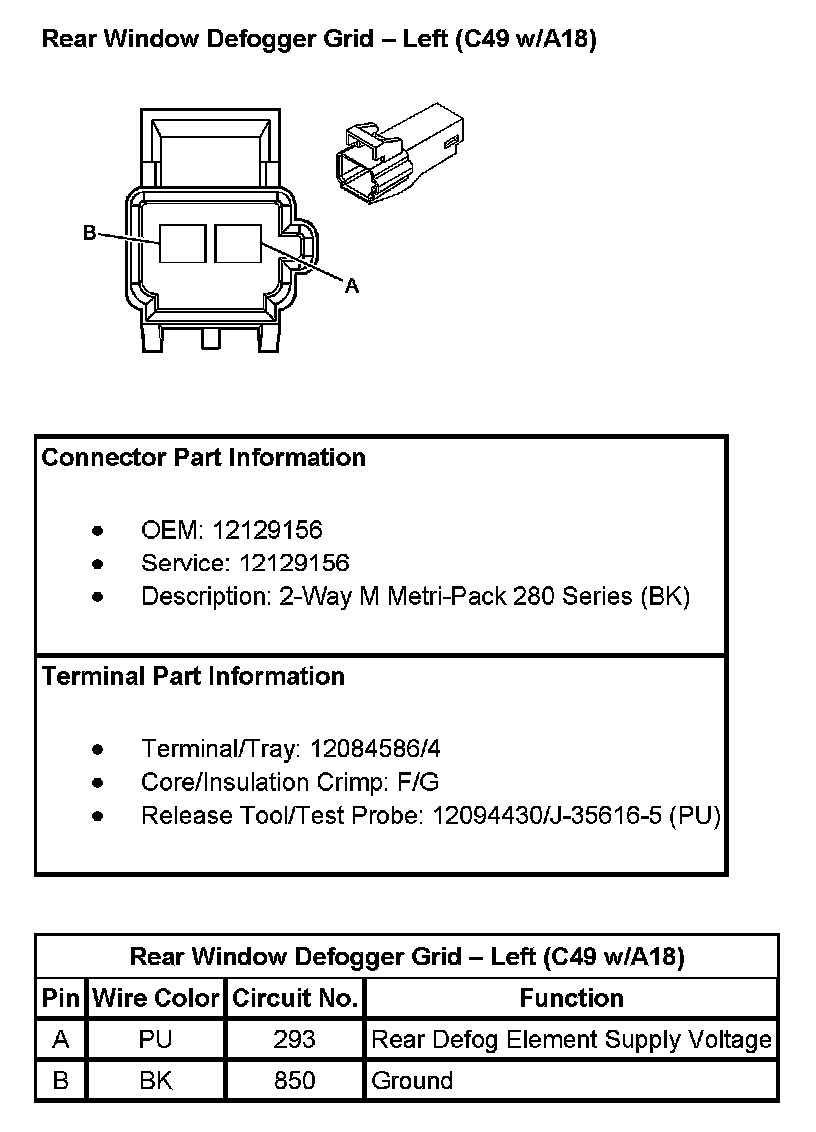

Rear Window Defogger Grid - Left(C49 With RPO Code A18):

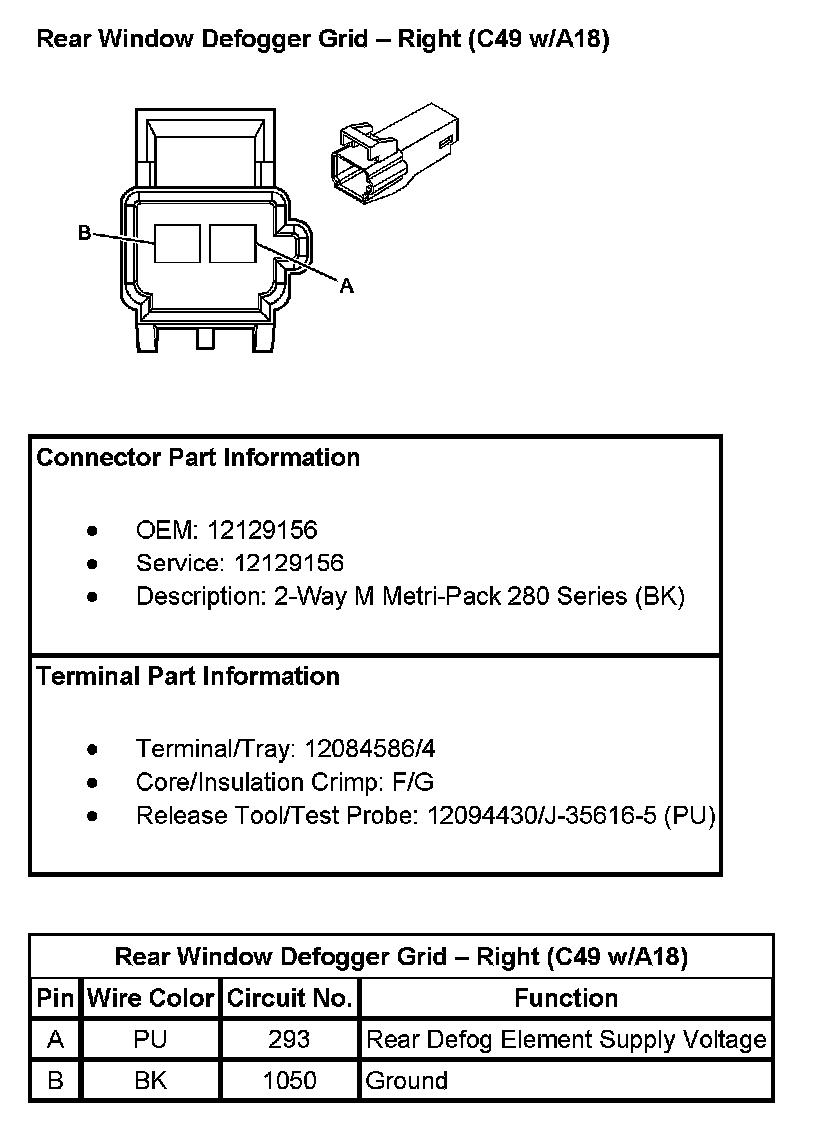

Rear Window Defogger Grid - Right (C49 With RPO Code A18):
