C318
C318
C318 I/P Harness To Body Harness:

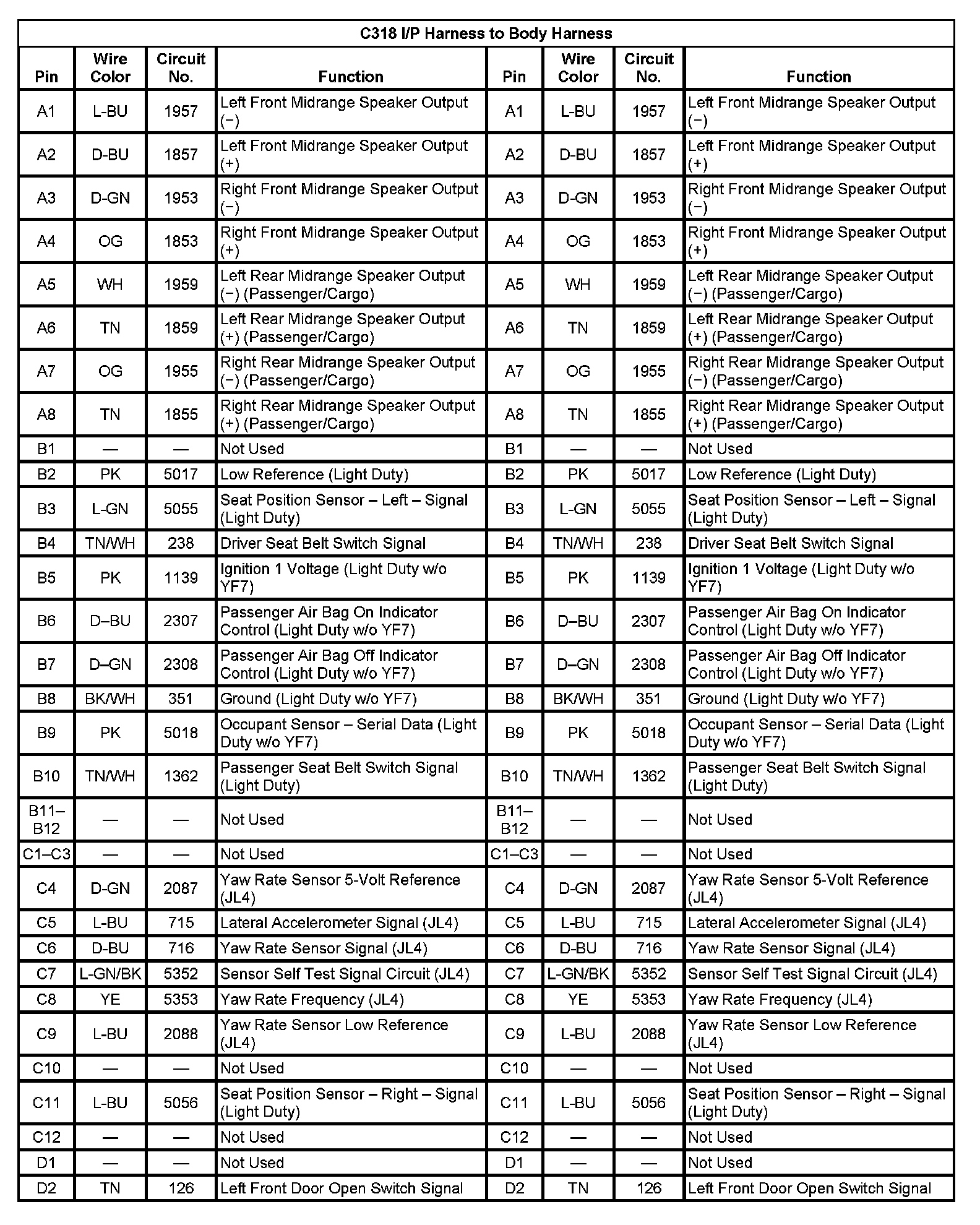

C318 I/P Harness To Body Harness (Pin A1 To D2):

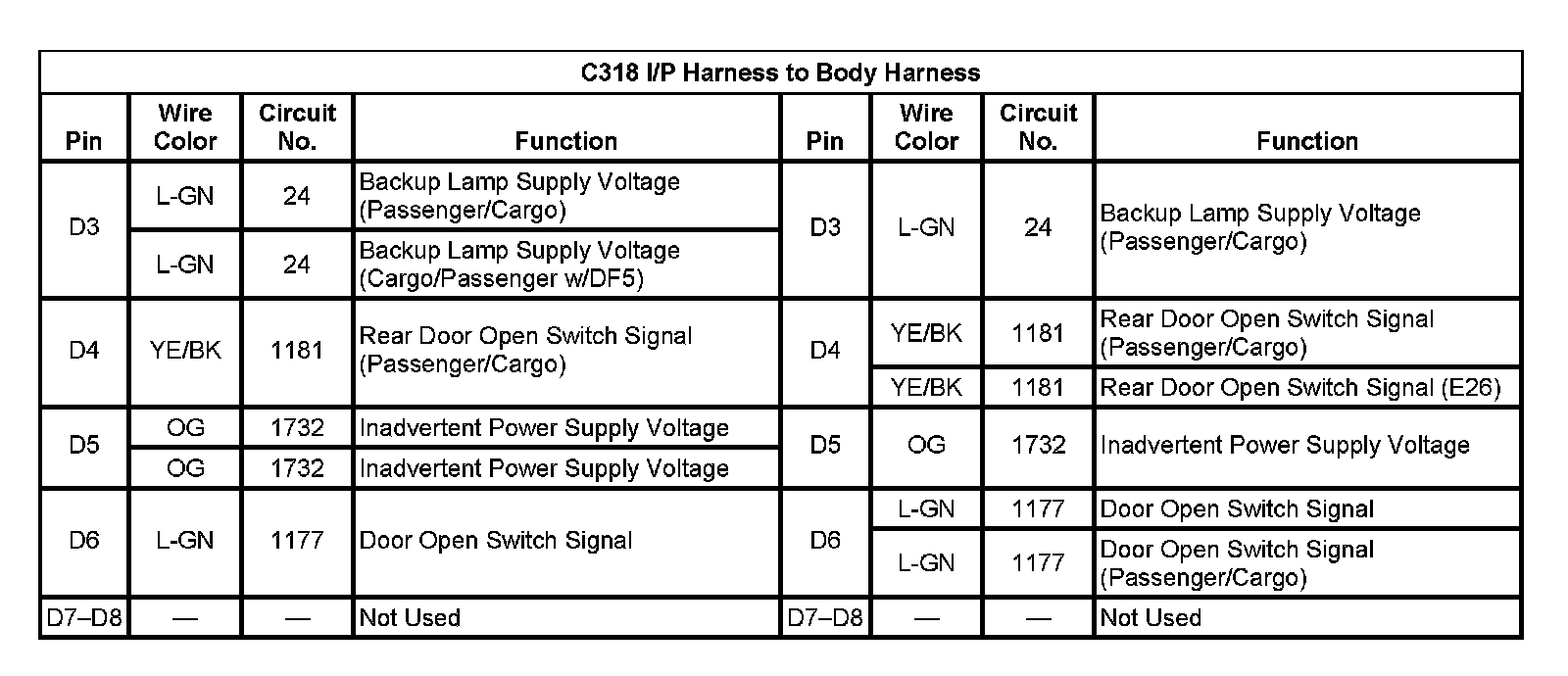

C318 I/P Harness To Body Harness (Pin D3 To D8):
