Exhaust Manifold

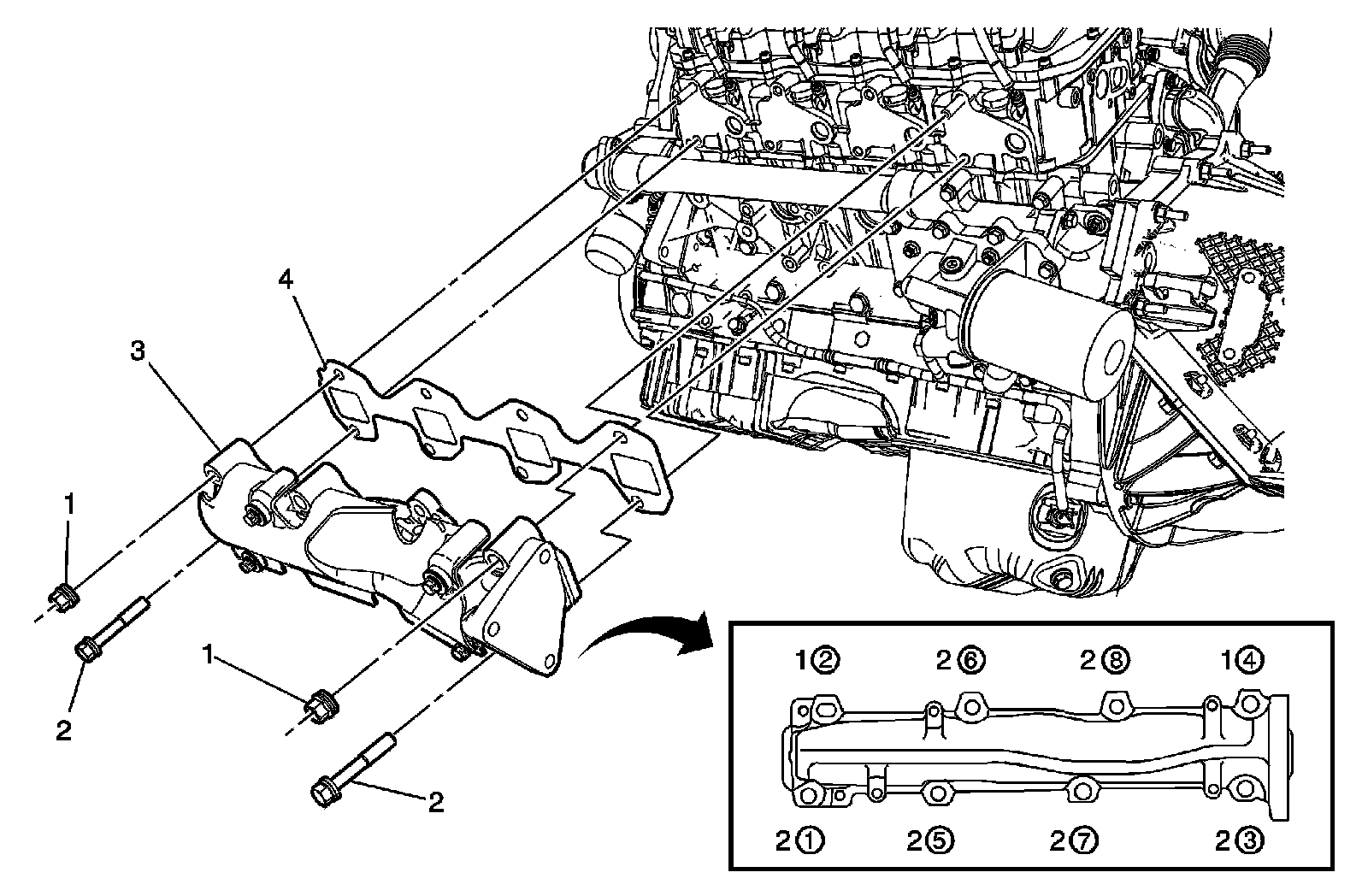

Exhaust Manifold Replacement - Right Side (6.6L)
Torque the bolts/nuts (QTY.6) to the sequence shown 38 N.m (28 ft lb)





Exhaust Manifold Replacement - Left Side (6.6L)
Torque the bolts/nuts (QTY.6) to the sequence shown 38 N.m (28 ft lb)
