Heated Oxygen Sensor (HO2S) (California Emissions W/LR4)

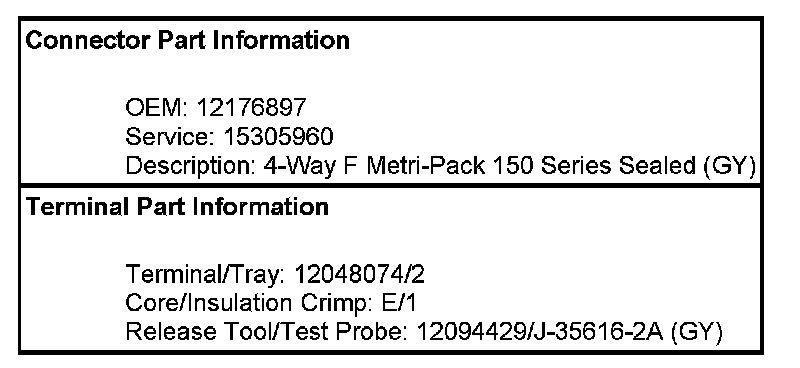

Engine Controls Connector End Views

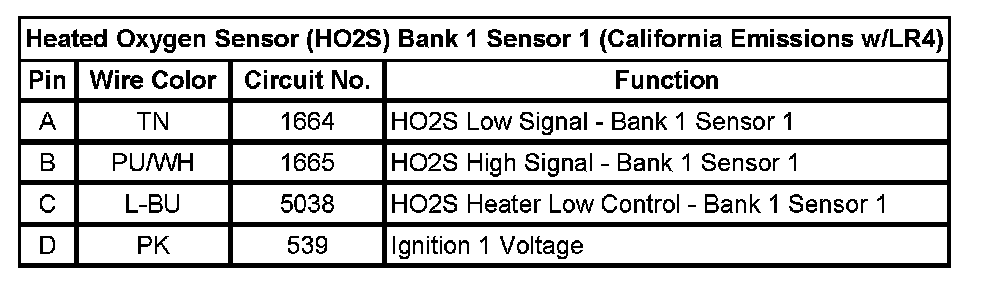

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (California Emissions w/LR4)

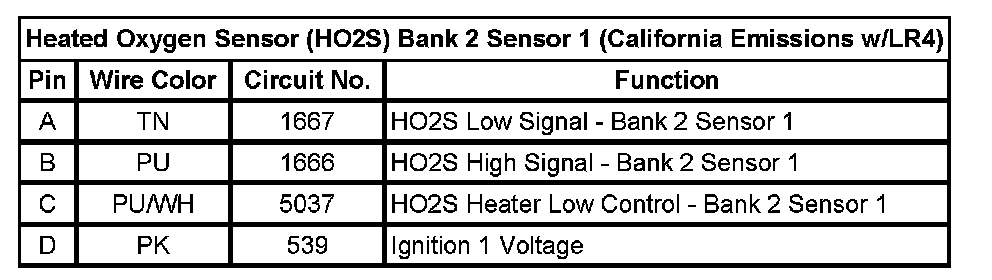

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (California Emissions w/LR4)
