Home >> Chevy Truck >> 2007 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Components

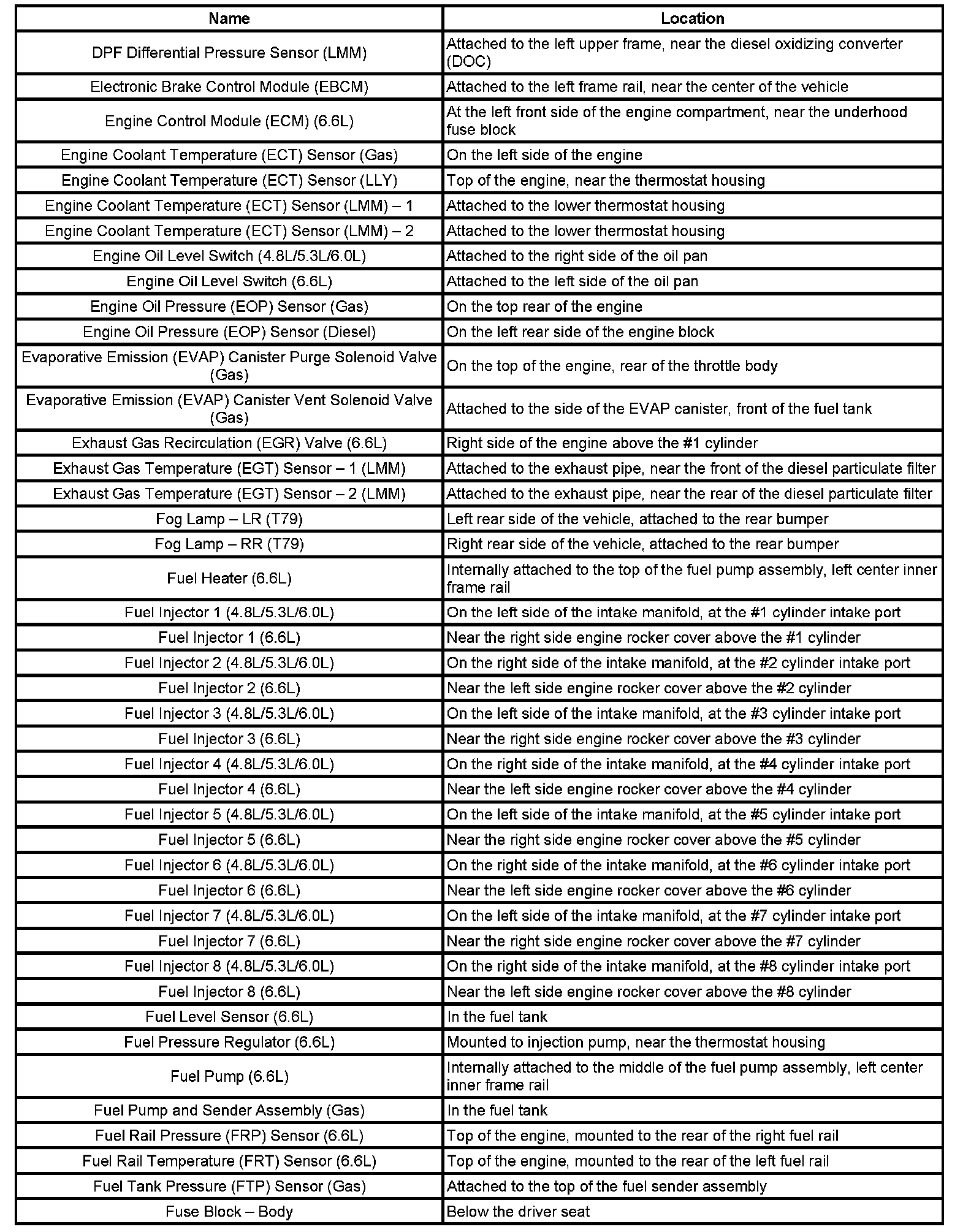

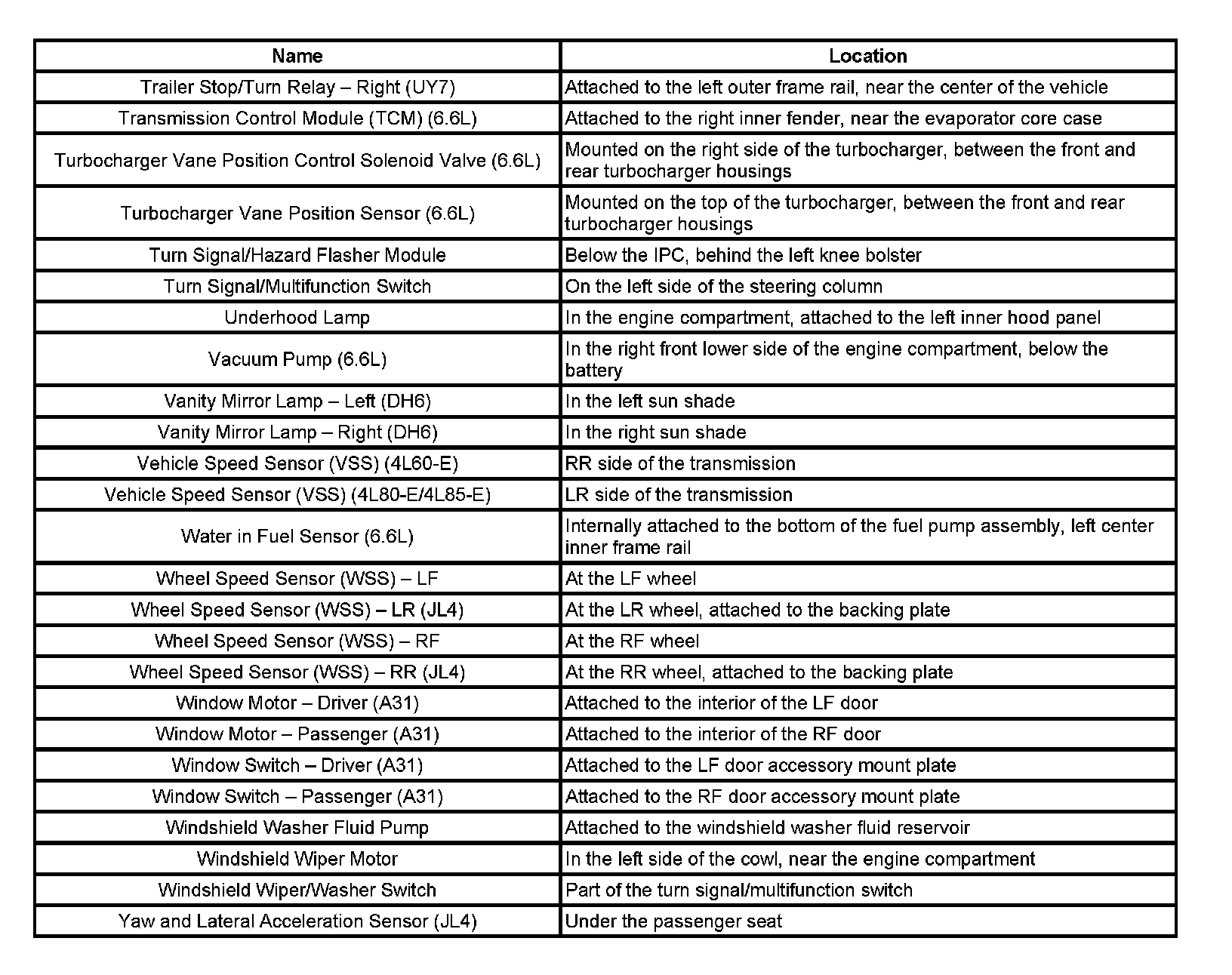

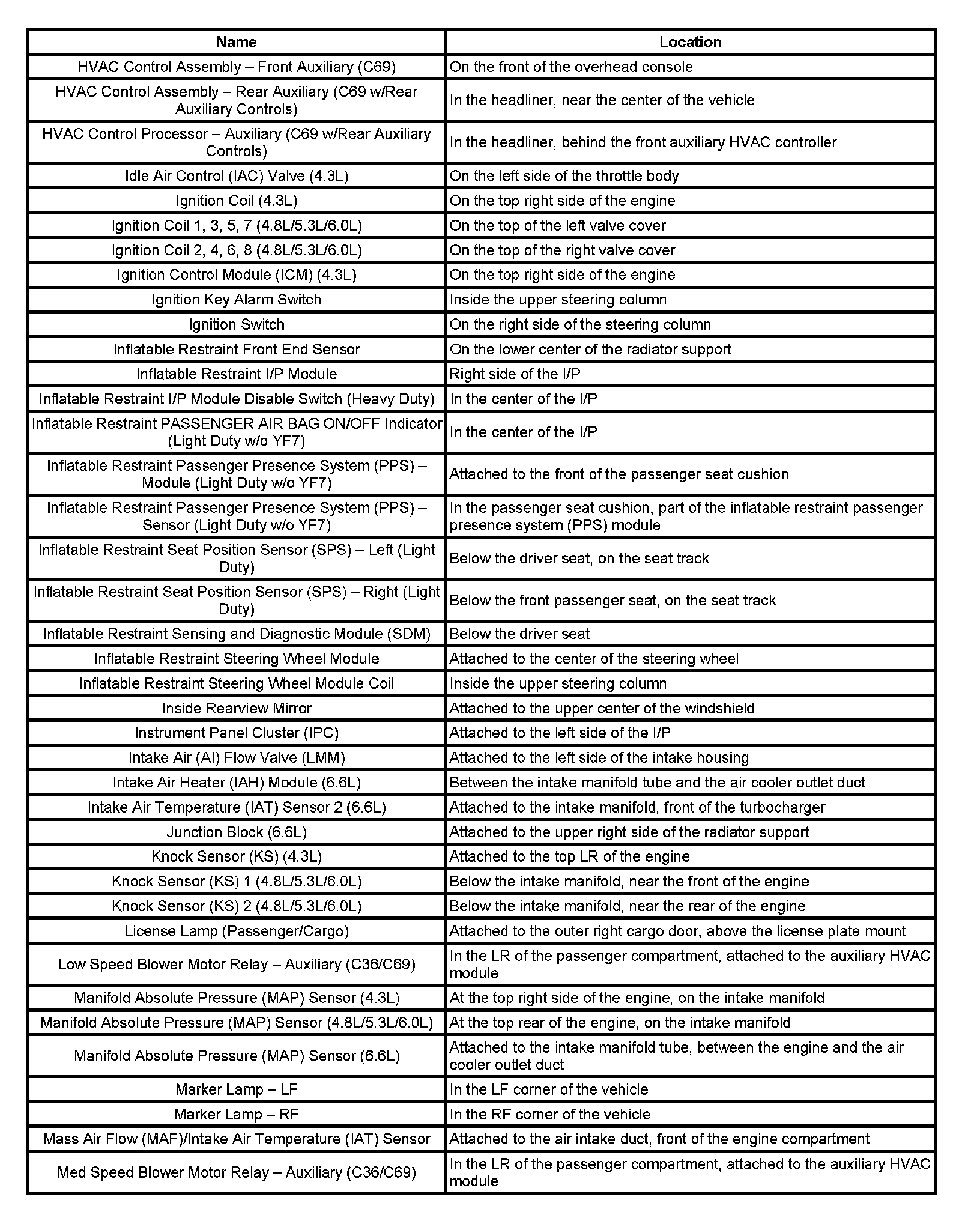

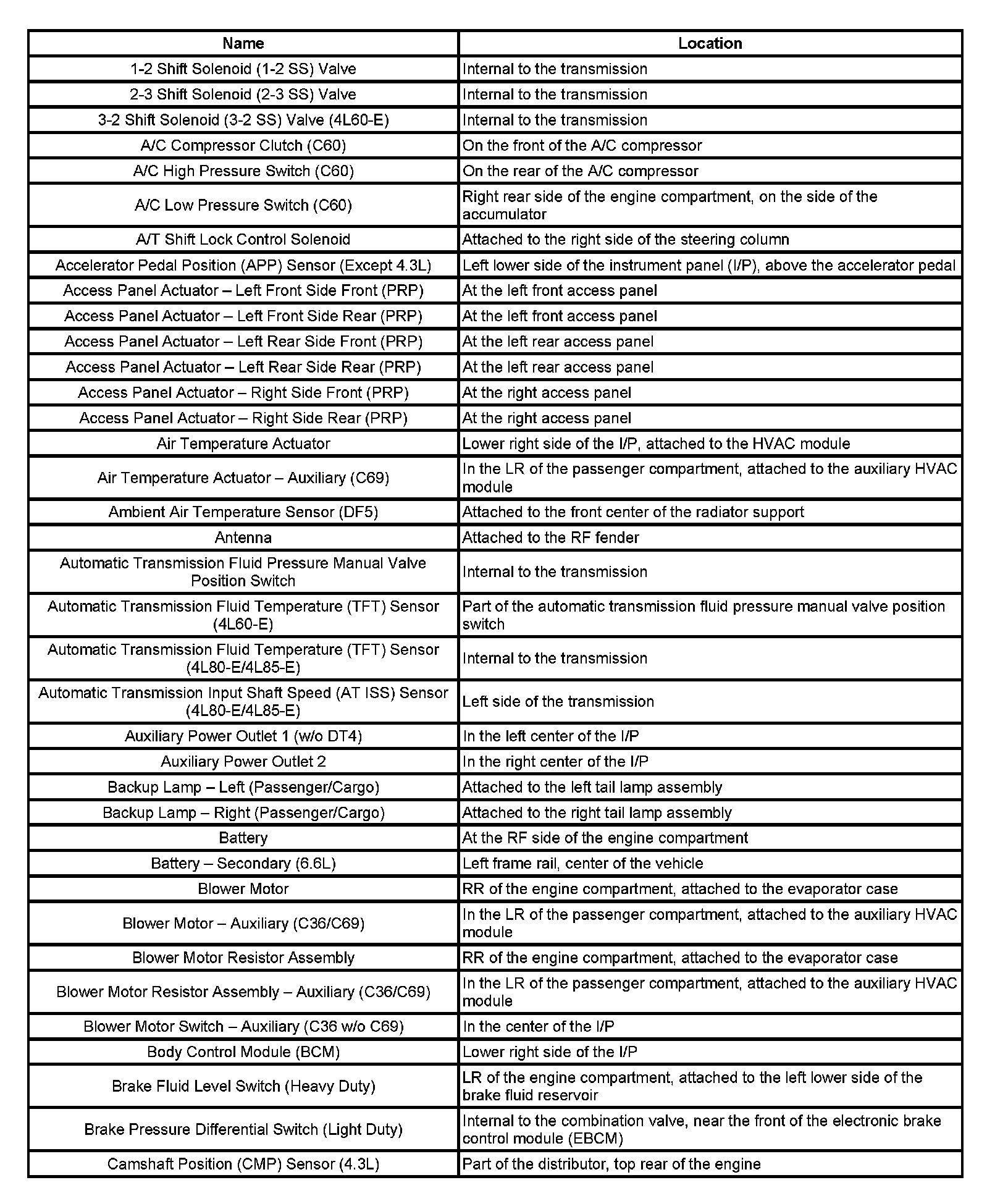

Components

1-2 - Ca:

Ca - Do:

DP - Fu:

HV - Me:

Mo - Tr:

Tr - Ya:
