Fuel Pressure Sensor
Fuel Pressure Sensor

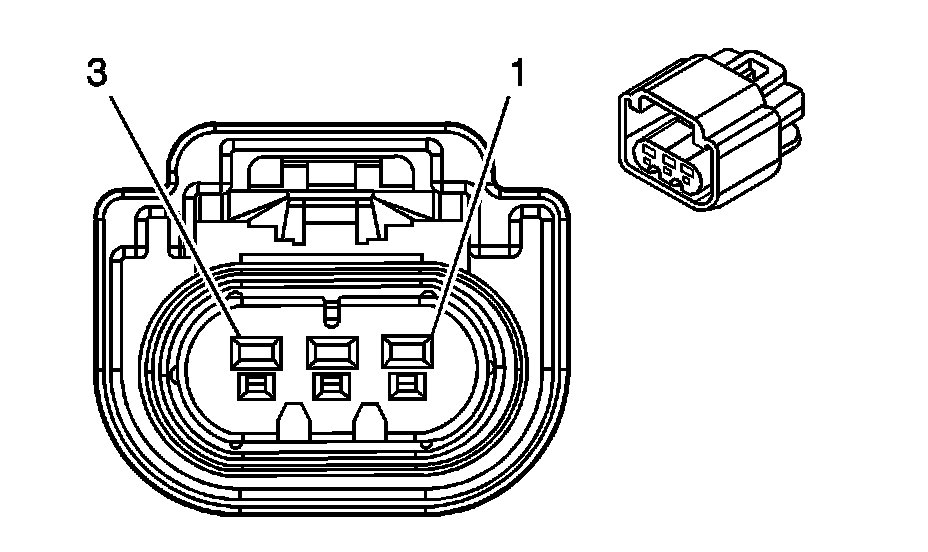

Engine Controls Connector End Views

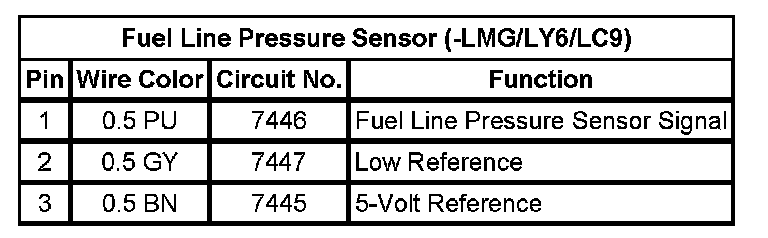

Fuel Line Pressure Sensor (-LMG/LY6/LC9)
