Torque Converter Housing with Fluid Pump Assembly Removal

Torque Converter Housing with Fluid Pump Assembly Removal





Notice: Refer to Torque Converter Housing/Low and Reverse Clutch Housing Bolt Size Notice.

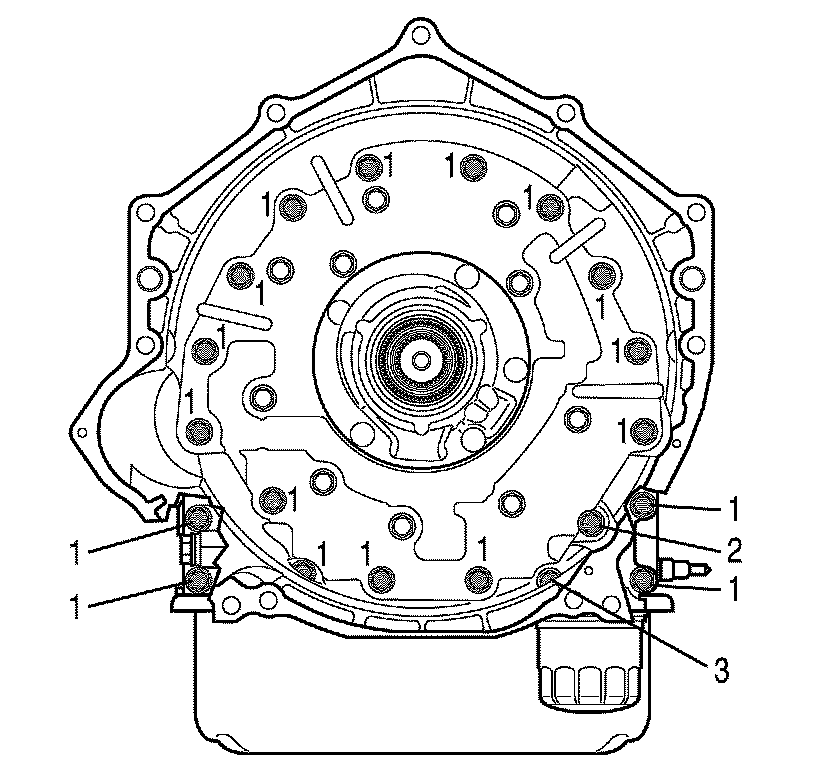

1. Remove 18 bolts (1), one bolt (2), and one bolt (3).





Caution: The torque converter housing/oil pump cover assembly dry weights are approximately 27 kg (60 lb). To help avoid personal injury and/or property damage:

* Use caution when installing, removing, or moving the converter housing/oil pump cover assembly.

* Get help when lifting the converter housing/oil pump cover assembly.

* Assistance from a hoist or another person may be required.

* Make sure lifting equipment can properly support the converter housing/oil pump cover assembly.

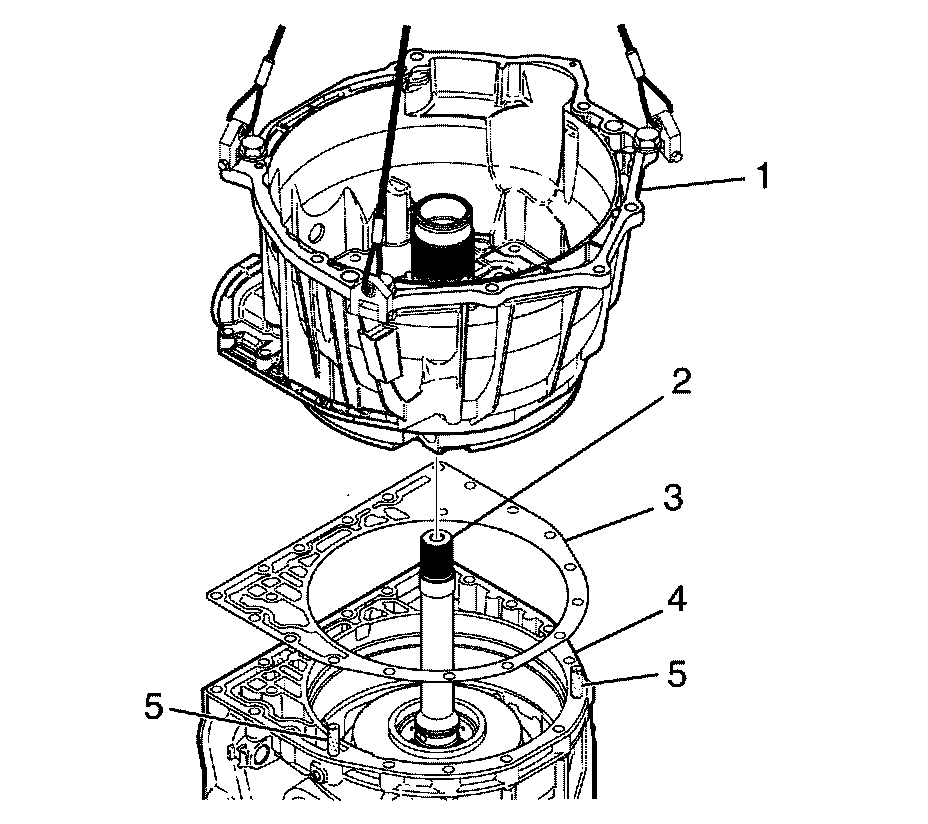

Attach a sling to the converter housing (1).
2. Attach a hoist to the sling.
3. Remove the converter housing/oil pump cover assembly (1) from the transmission case (4) and the turbine shaft (2).
4. Place the converter housing/oil pump cover assembly on the work table.
5. Remove the sling.
6. Remove and discard the main housing/separator plate gasket (3).
