6L50/6L80/6L90 - Automatic Transmission
>>

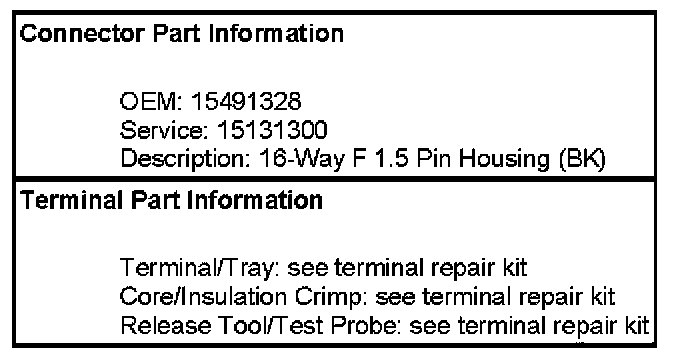

Automatic Transmission Inline 16-Way Connector End View
Automatic Transmission Inline 16-Way Connector End View
Automatic Transmission Inline 16-Way Connector End View

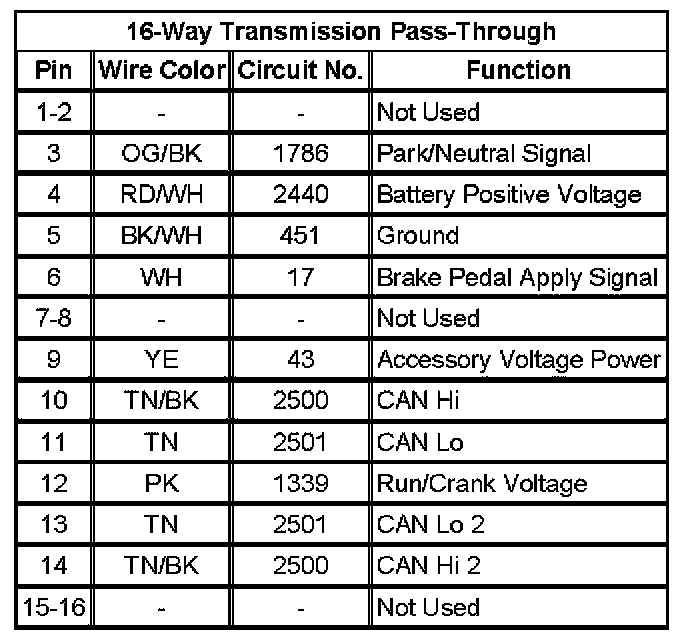

16-Way Transmission Pass-Through:
