Intake Air Heater: Diagrams



Engine Controls Connector End Views

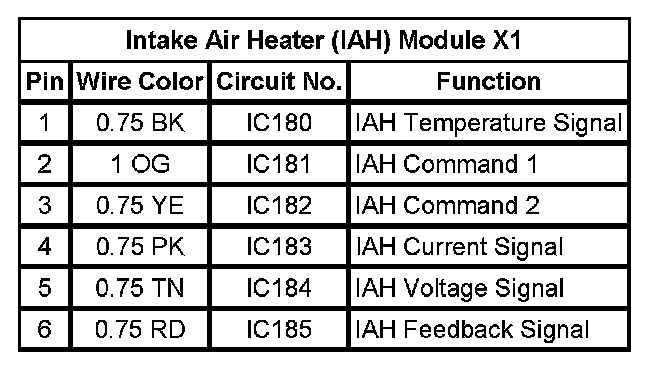

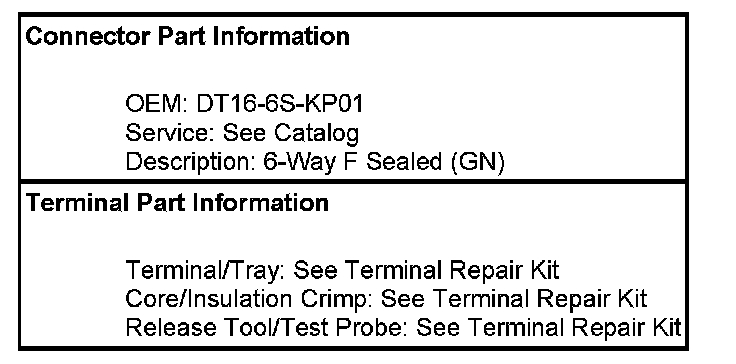

Intake Air Heater (IAH) Module X1
