Radiator Cooling Fan Motor
>>
Cooling Fan - Right
Cooling Fan - Right
Cooling System
Connector End Views

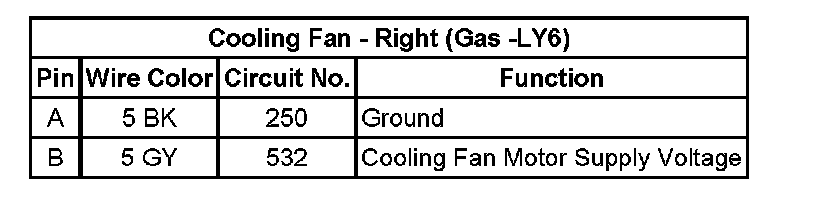

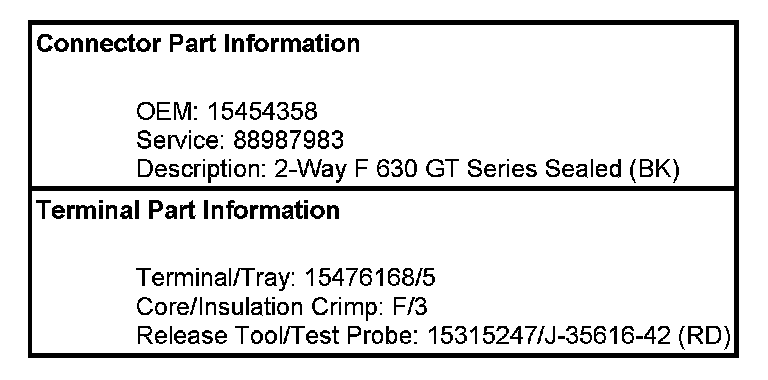

Cooling Fan - Right (Gas -LY6)
Cooling Fan - Right (Gas -LY6):
