Alternator
>>

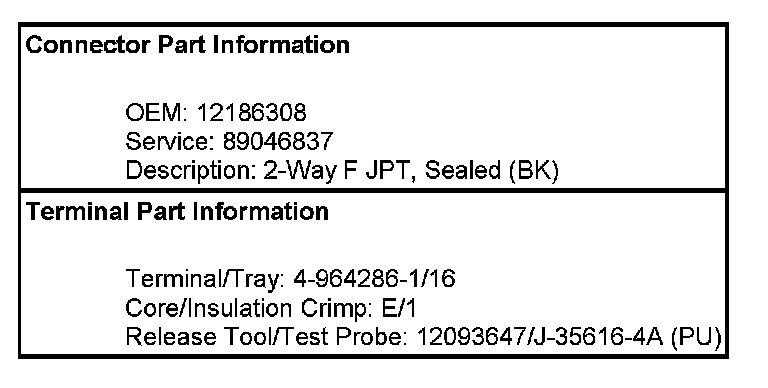

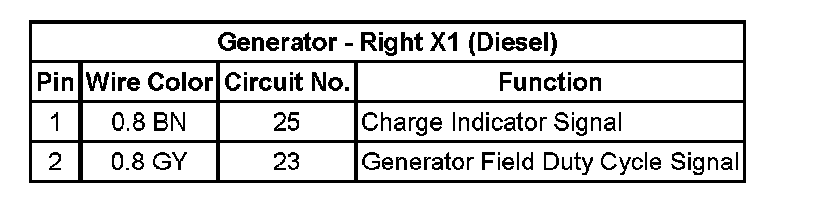

Generator - Right X1 (Diesel)
Generator - Right X1 (Diesel)
Generator - Right X1 (Diesel)
Generator - Right X1 (Diesel):
