Headliner Harness Regular Cab
Headliner Harness Regular Cab
Harness Routing Views

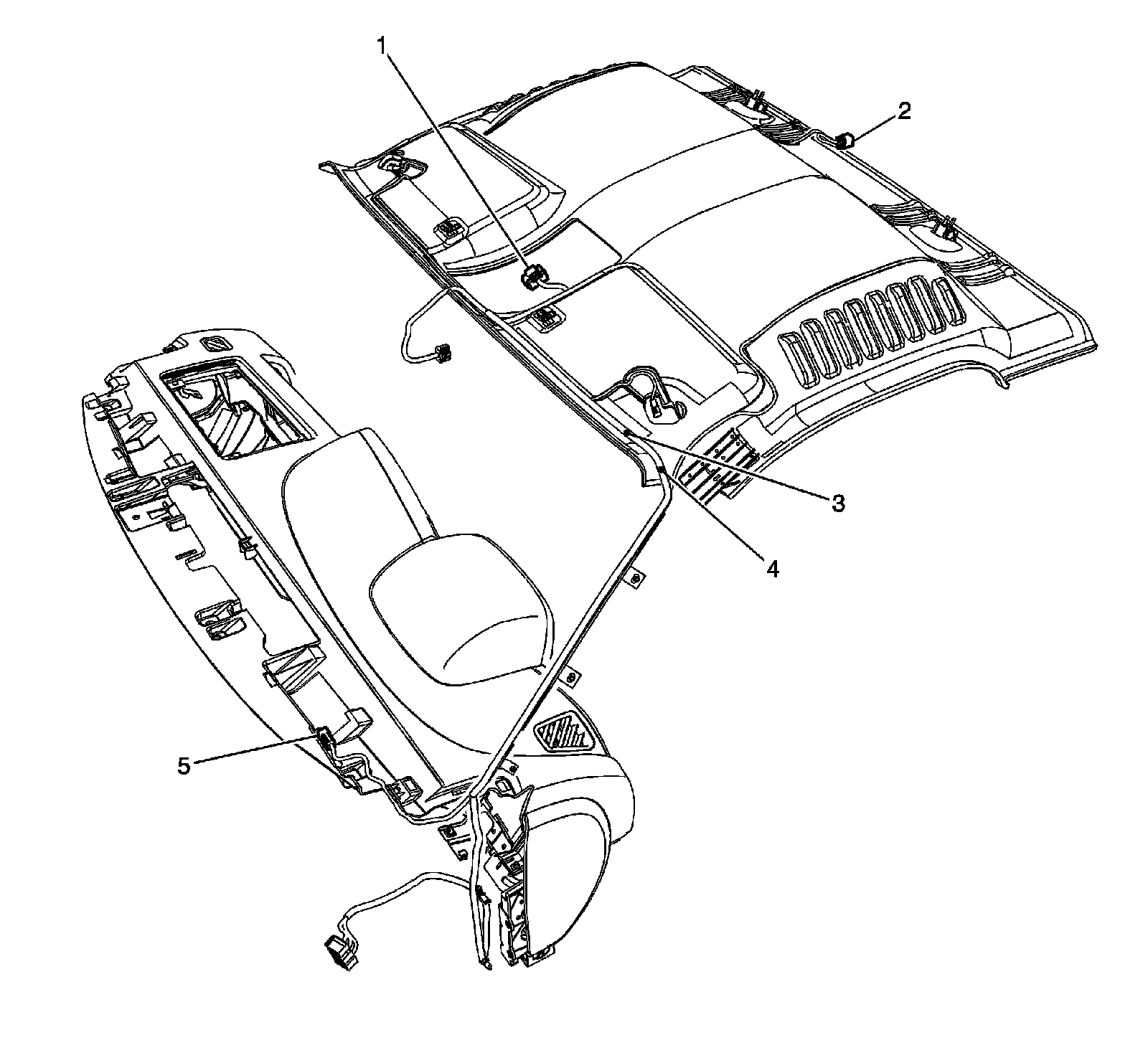

Headliner Harness Regular Cab
1
- X304
2
- X318
3
- J327
4
- J328
5
- X203 (UE1)
