Exhaust System - Exhaust Filter Lamp/MIL ON/DTC's Set
TECHNICALBulletin No.: 07-06-04-033B
Date: October 15, 2008
Subject:
LMM Clean Exhaust Filter Light Illuminated, MIL/SES Light Illuminated with DTC(s) P244B and/or P2463 Set (Perform All SI Diagnostics for DTC(s) set, If NTF, Replace Air Filter)
Models:
2007 Chevrolet Silverado
2007 GMC Sierra
with 6.6L Duramax(TM) Turbo Diesel Engine (VIN 6 - RPO LMM)
Attention:
The Clean Exhaust Filter light will illuminate and the MIL/SES light illuminates immediately after due to the result of an incorrect or improperly installed engine air filter and may not be a warrantable claim. The best way to avoid air filter quality concerns is to purchase ACDelco(R) air filters directly from GMSPO.
Supercede:
This bulletin is being revised to remove the 2008 model year. Please discard Corporate Bulletin Number 07-06-04-033A (Section 06 - Engine/Propulsion System).
Condition
Some customers may comment that the Clean Exhaust Filter light is illuminated and that the MIL/SES light illuminates immediately after. This may or may not have allowed the customer to get the vehicle into the regeneration window. Upon further investigation, technicians may find that the following DTC(s) were stored:
^ P244B - Diesel Particulate Filter Differential Pressure Too High
^ P2463 - Diesel Particulate Filter Soot Level Accumulation
Cause
The cause may be due to excessive soot production when pulling a trailer or loads in excess of 2,268 kg (5,000 lbs). The soot production may increase while pulling these loads over light or medium grades. The air filter may contribute to the soot accumulation at these operating conditions.
Correction
Technicians should perform all SI diagnostics for the following DTC(s):
^ P244B - Diesel Particulate Filter Differential Pressure Too High
^ P2463 - Diesel Particulate Filter Soot Level Accumulation
If no concern is found (NTF), then replace the air filter with P/N 25839611.

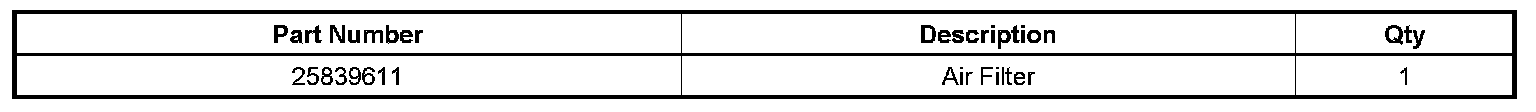

Parts Information
Warranty Information
