Park Brake System Diagnosis
Park Brake System Diagnosis
Park Brake System Diagnosis

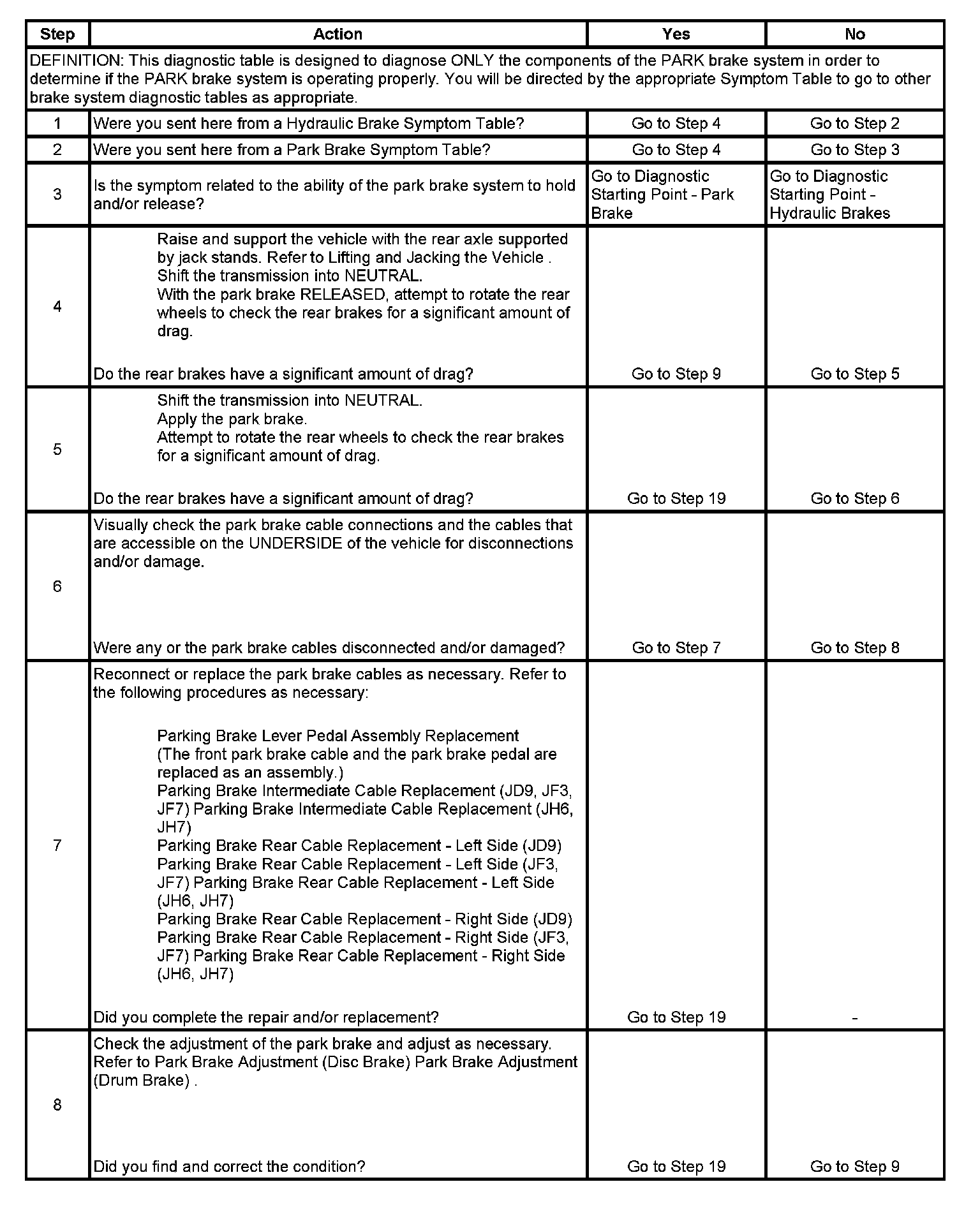

Step 1 - Step 8:
Step 9 - Step 16:

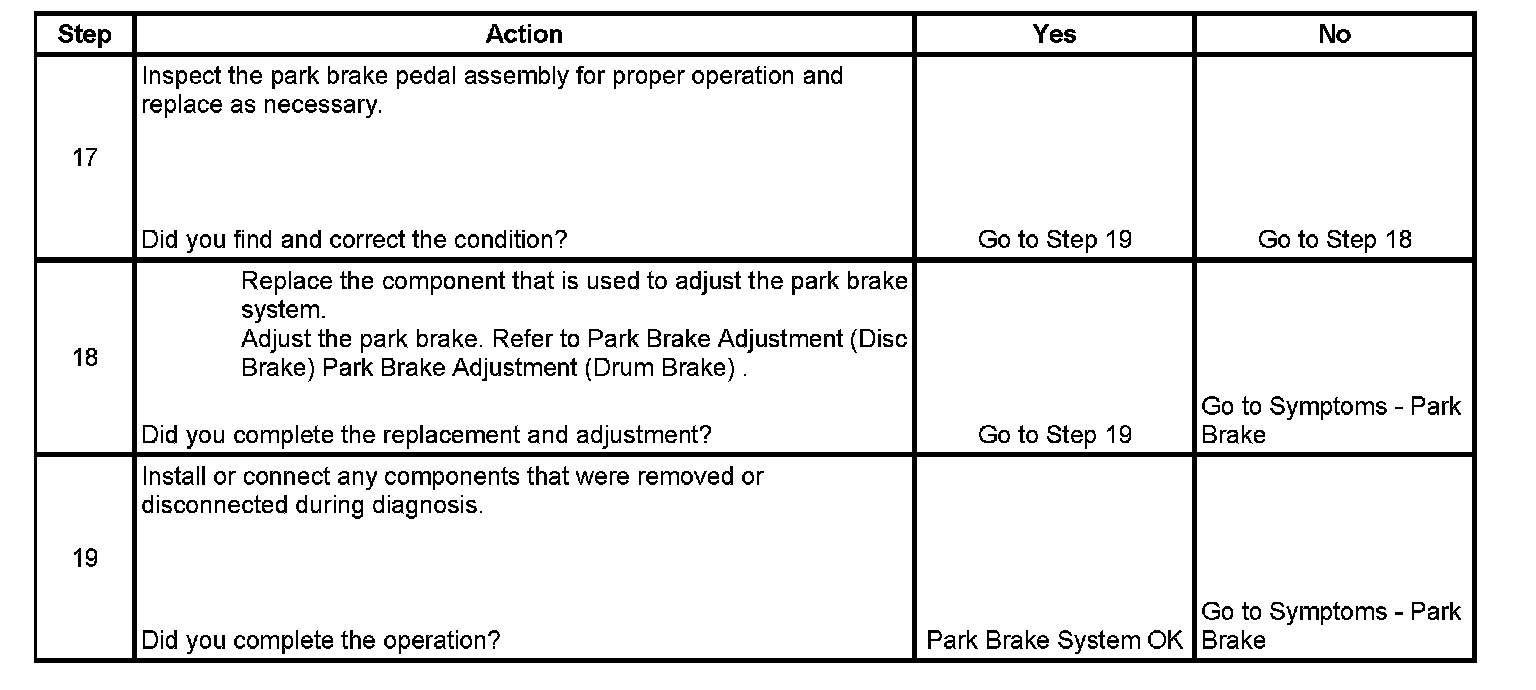

Step 17 - Step 19:
