MP 1222/1225/1226-NQG - Transfer Case

Transfer Case Control Schematics

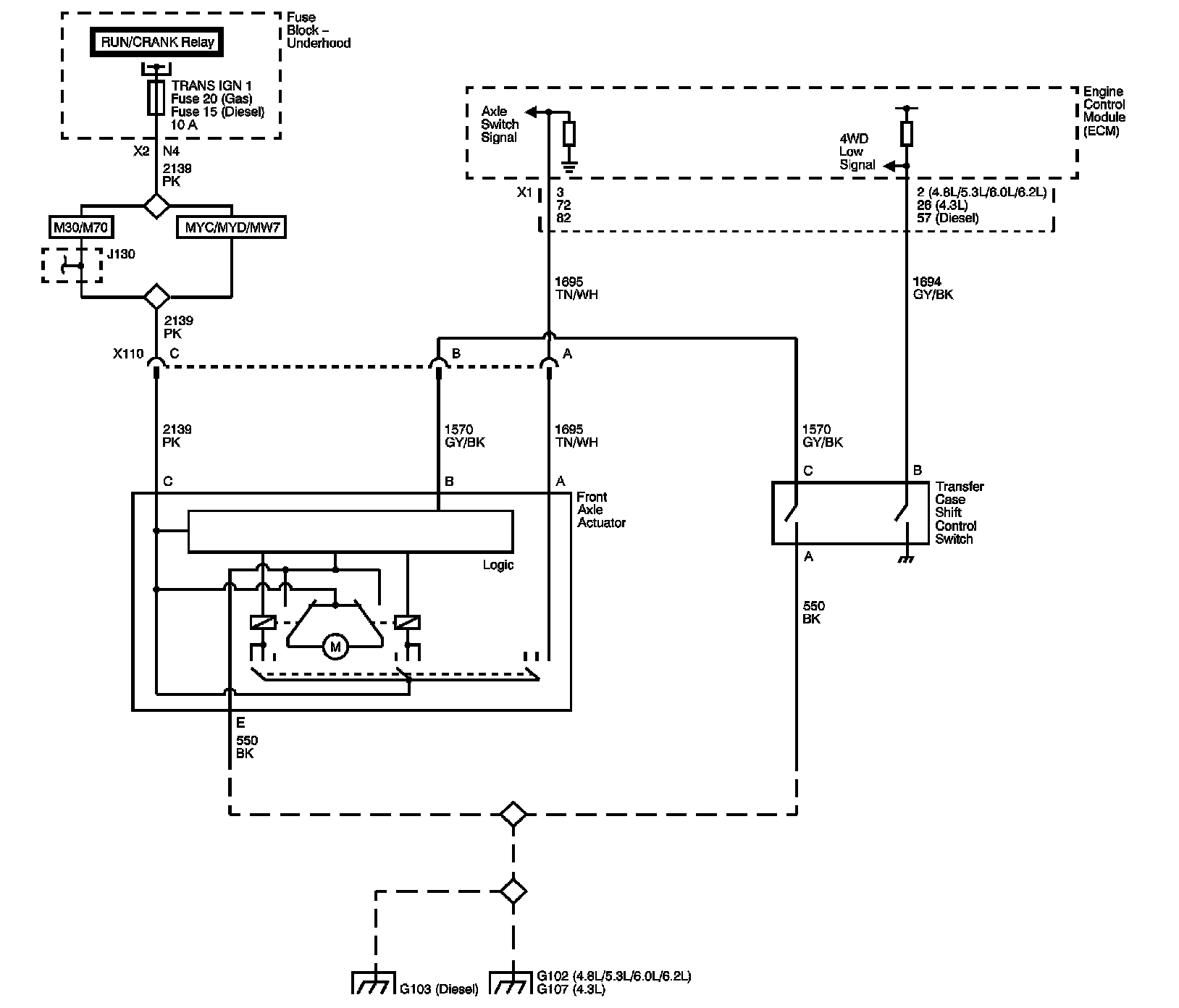

Transfer Case Control Schematics:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
