Underhood Fuse Block - Secondary

Fuse Block - Underhood - Secondary Top View:

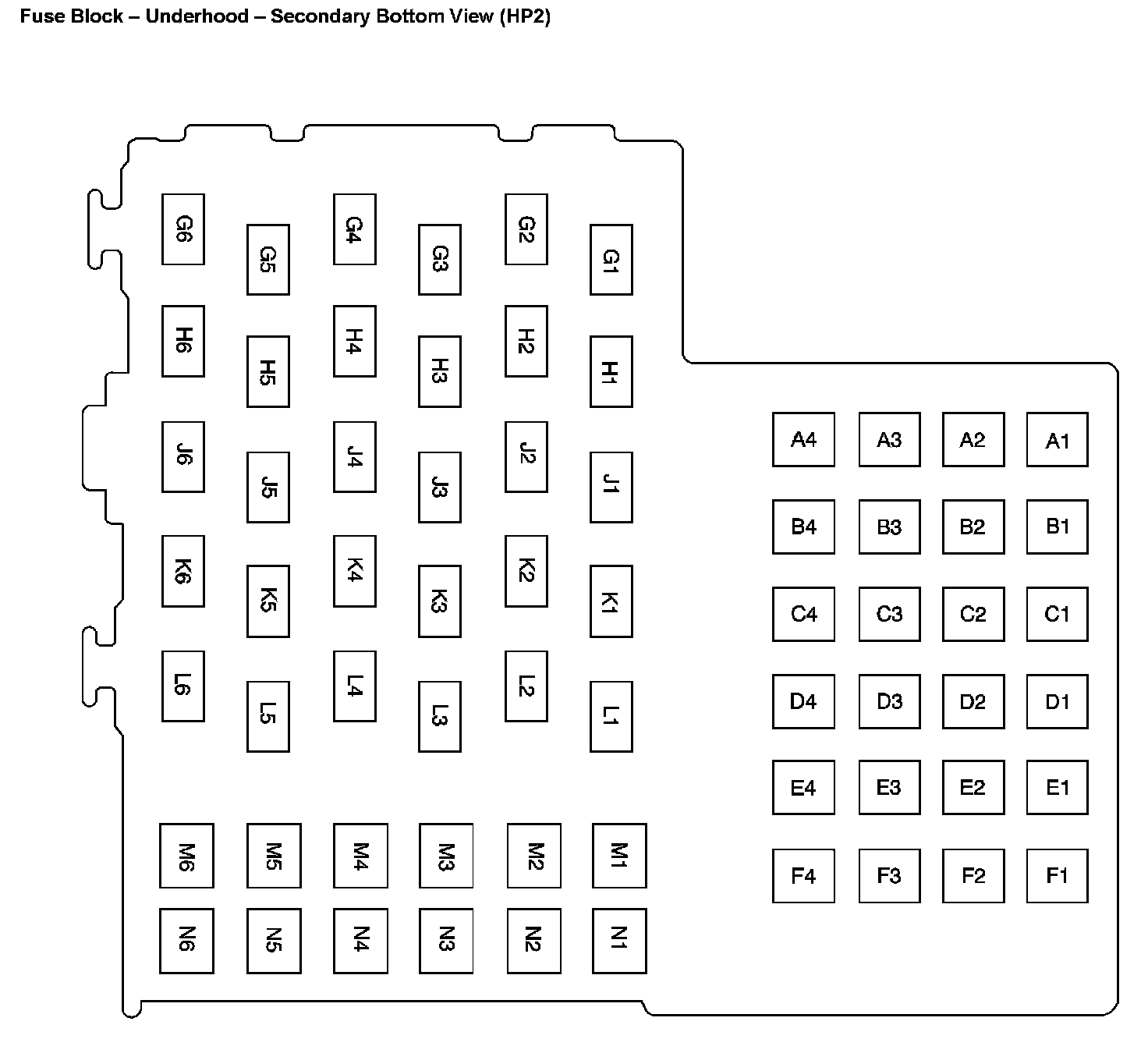

Fuse Block - Underhood - Secondary Bottom View:

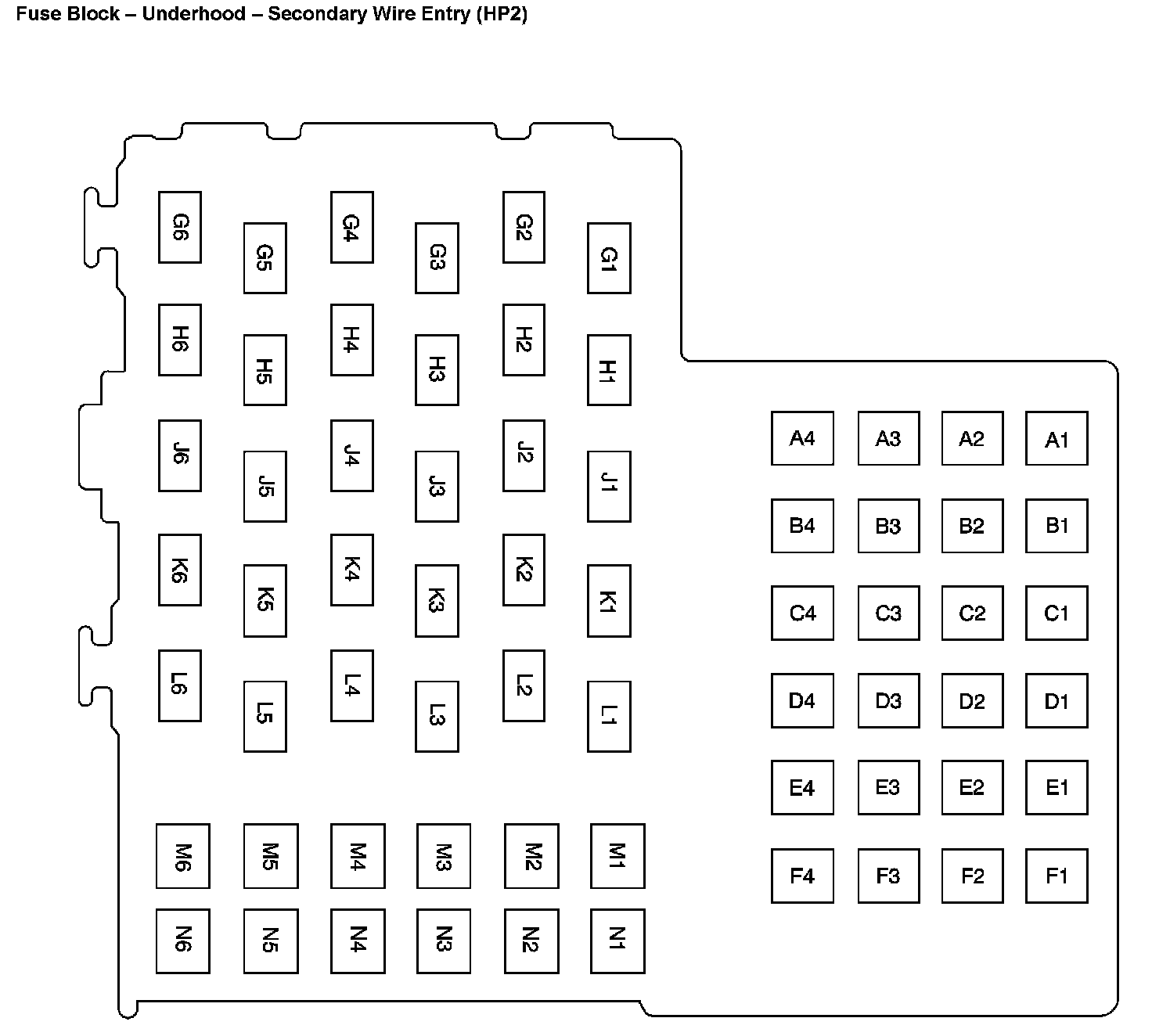

Fuse Block - Underhood - Secondary Wire Entry:

Fuse Block - Underhood - Secondary Wire Entry (Pin A1 To K3):

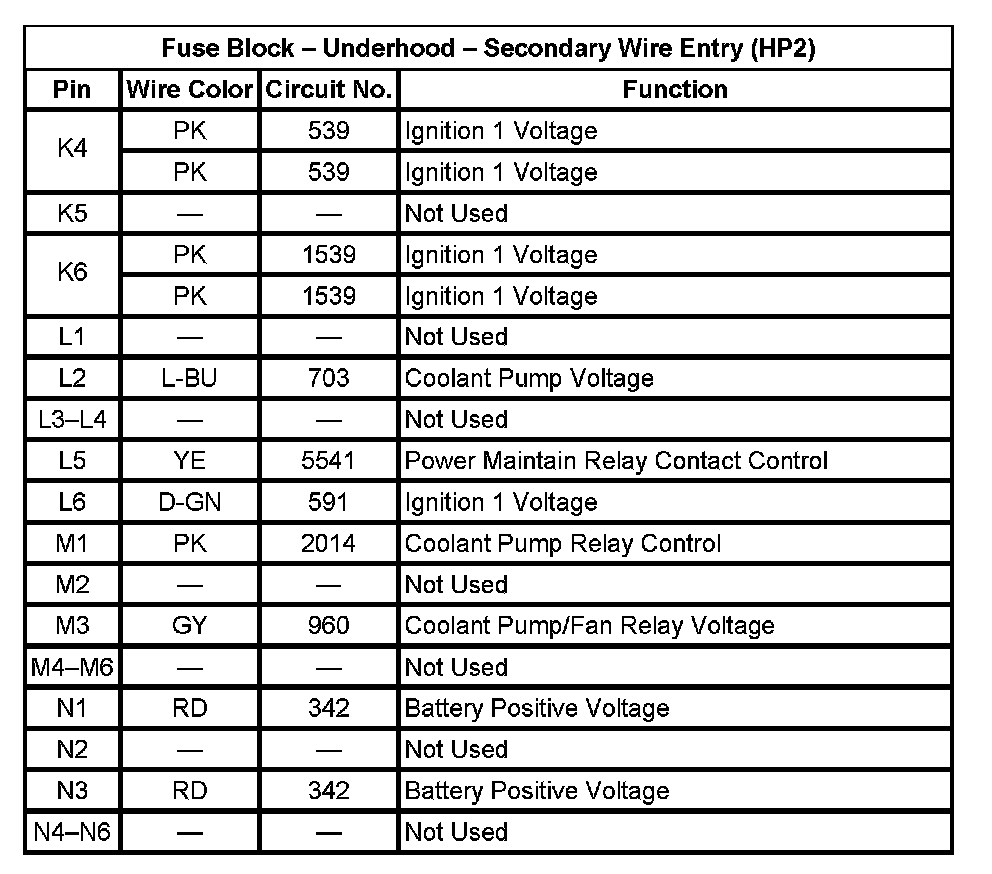

Fuse Block - Underhood - Secondary Wire Entry (Pin K4 To N6):
