Engine General Specifications & Service Limits

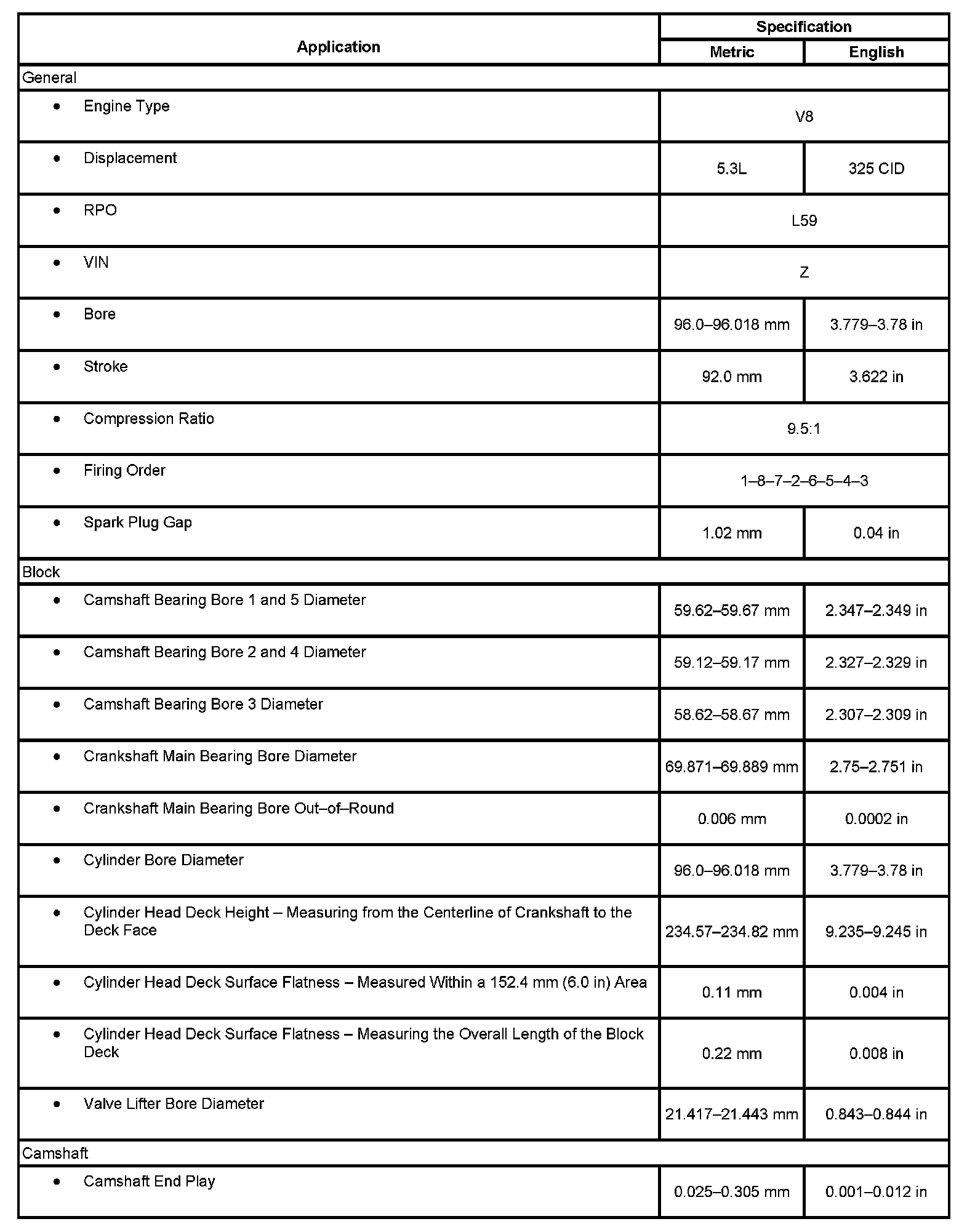

Engine Mechanical Specifications (L59 VIN Z) (Part 1):

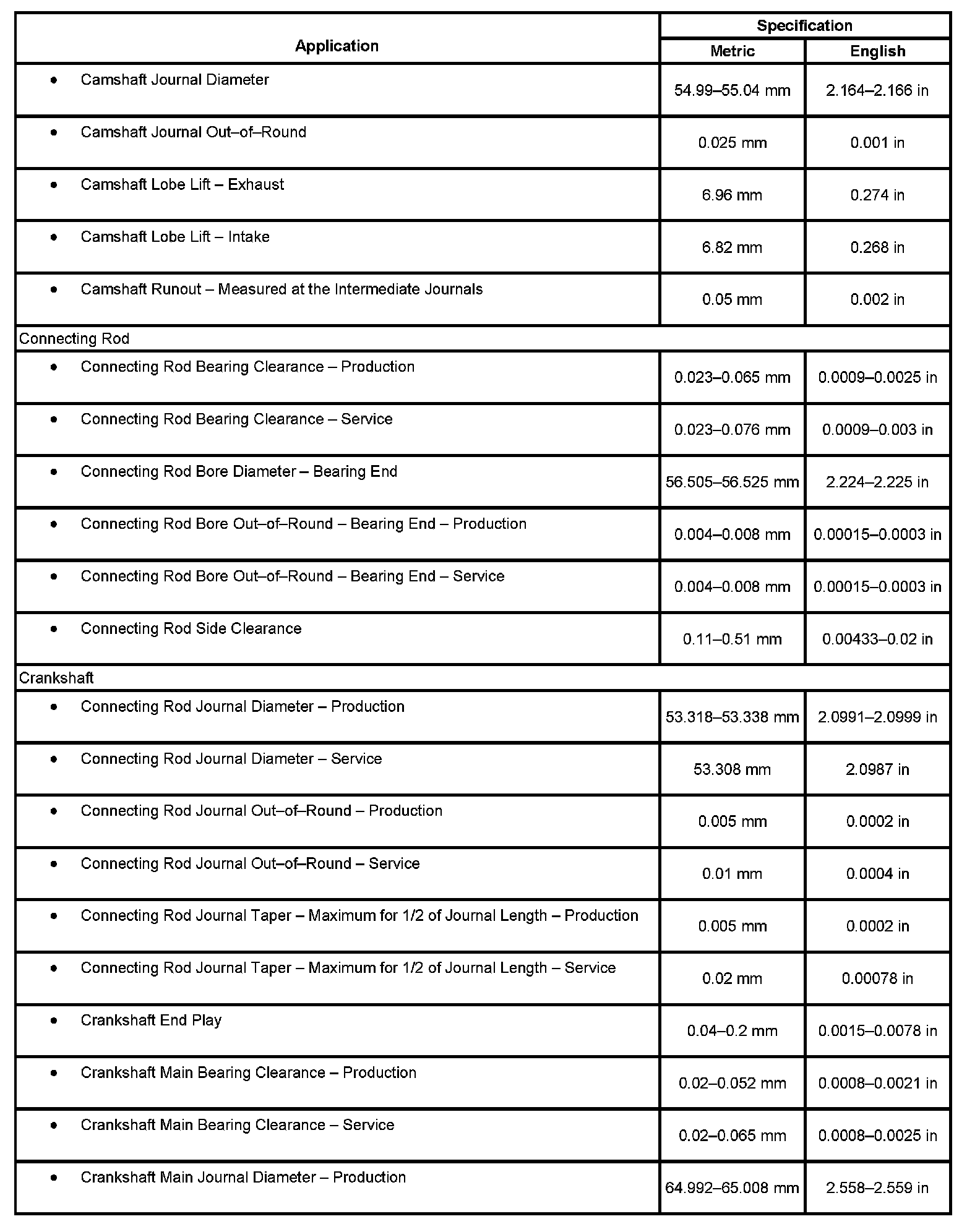

Engine Mechanical Specifications (L59 VIN Z) (Part 2):

Engine Mechanical Specifications (L59 VIN Z) (Part 3):

Engine Mechanical Specifications (L59 VIN Z) (Part 4):

Engine Mechanical Specifications (L59 VIN Z) (Part 5):

Engine Mechanical Specifications (L59 VIN Z) (Part 6):
