C249
C249

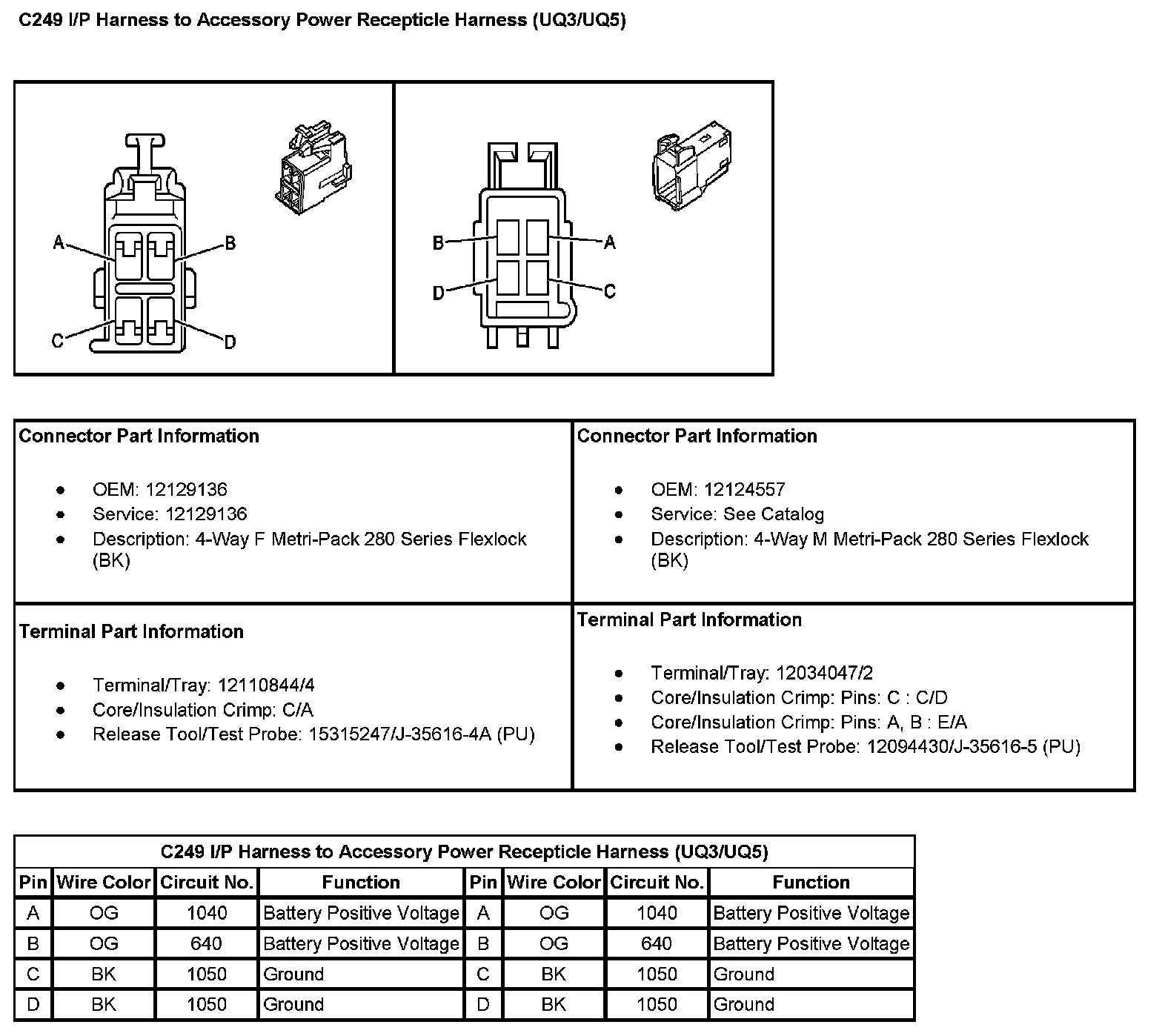

C249 I/P Harness To Accessory Power Recepticle Harness (with RPO Code UQ3/UQ5):

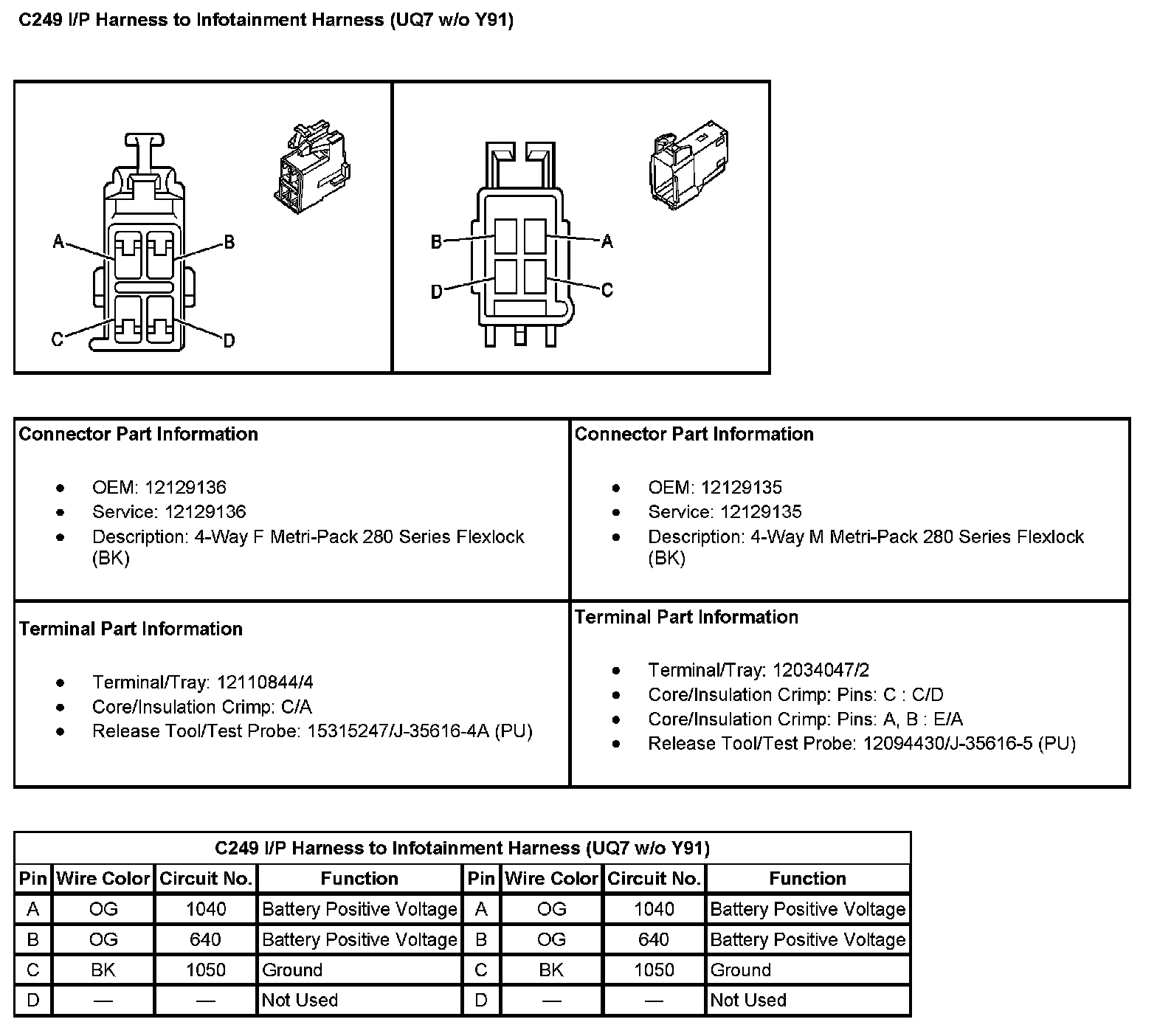

C249 I/P Harness To Infotainment Harness (With RPO Code UQ7 Without RPO Code Y91):
