P0336

DTC P0336

CIRCUIT DESCRIPTION
The crankshaft position (CKP) sensor signal indicates the crankshaft speed and position. The CKP sensor is connected directly to the powertrain control module (PCM), and consists of the following circuits:
- The 12-volt reference circuit
- The low reference circuit
- The CKP sensor signal circuit

If the PCM detects that the CKP sensor signal is incorrect for more than 120 seconds, DTC P0336 sets.

DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC P0336 Crankshaft Position (CKP) Sensor Circuit

CONDITIONS FOR RUNNING THE DTC
- The engine is cranking or running.
- This diagnostic runs continuously when the above conditions are met.

CONDITIONS FOR SETTING THE DTC
The PCM determines that the CKP sensor signal is out of range for more than 120 seconds.

ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.

TEST DESCRIPTION

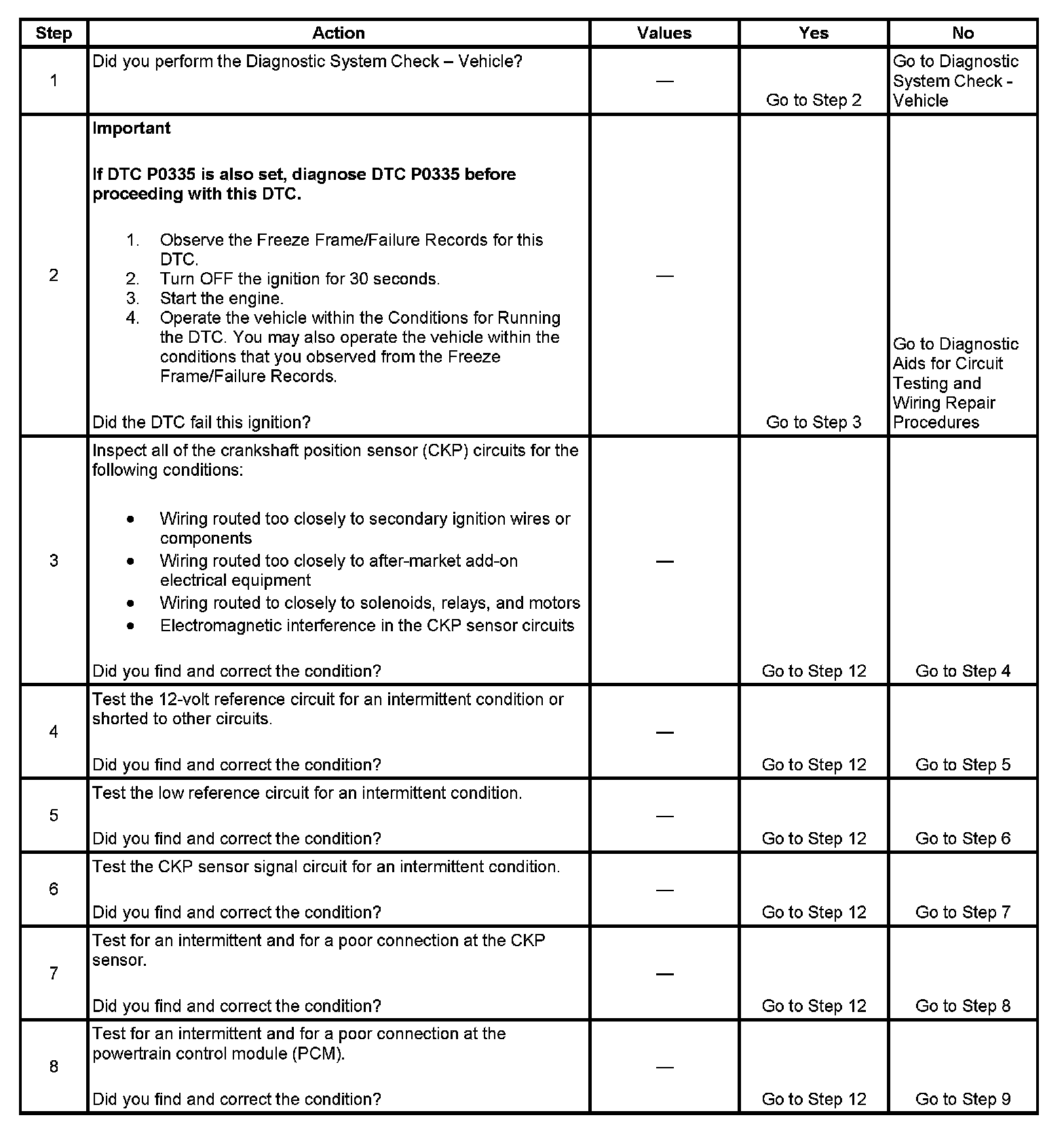

Step 1 - Step 8:

Step 9 - Step 13:

The numbers below refer to the step numbers on the diagnostic table.
2. This step verifies that the malfunction is present.
3. This step tests for electromagnetic interference (EMI) on the CKP sensor circuits.
