Torque Converter Clutch (TCC) Solenoid Valve, Wiring Harness Side

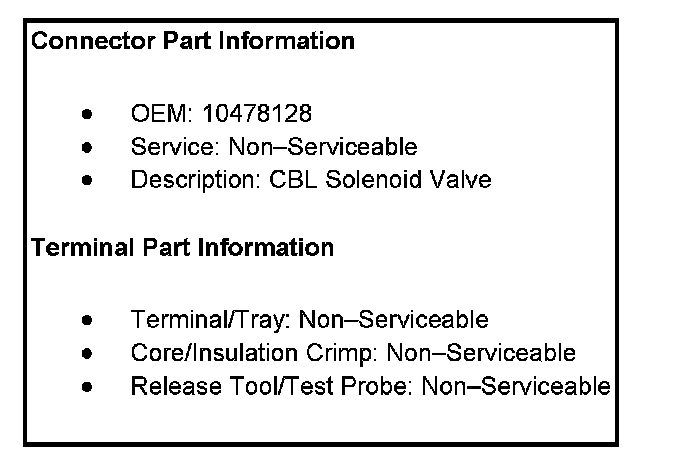

Automatic Transmission Internal Connector End Views (M30/M32)

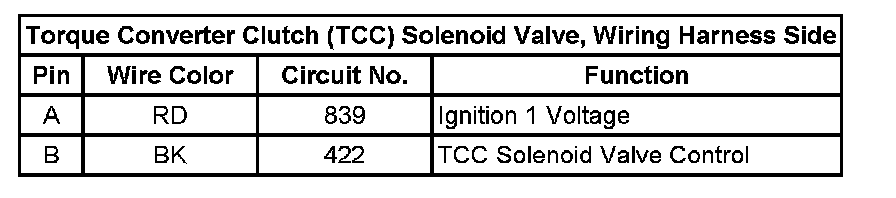

Torque Converter Clutch (TCC) Solenoid Valve, Wiring Harness Side:
