261-NP2 - Transfer Case



Transfer Case Control Connector End Views

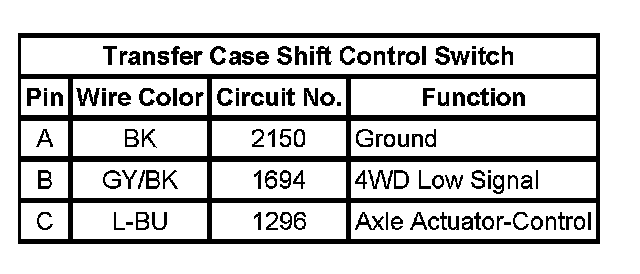

Transfer Case Shift Control Switch:
