NVG 246-NP8 - Transfer Case

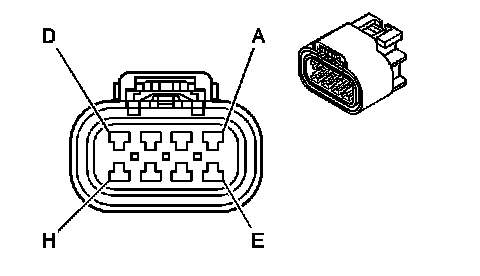

Transfer Case Control Connector End Views

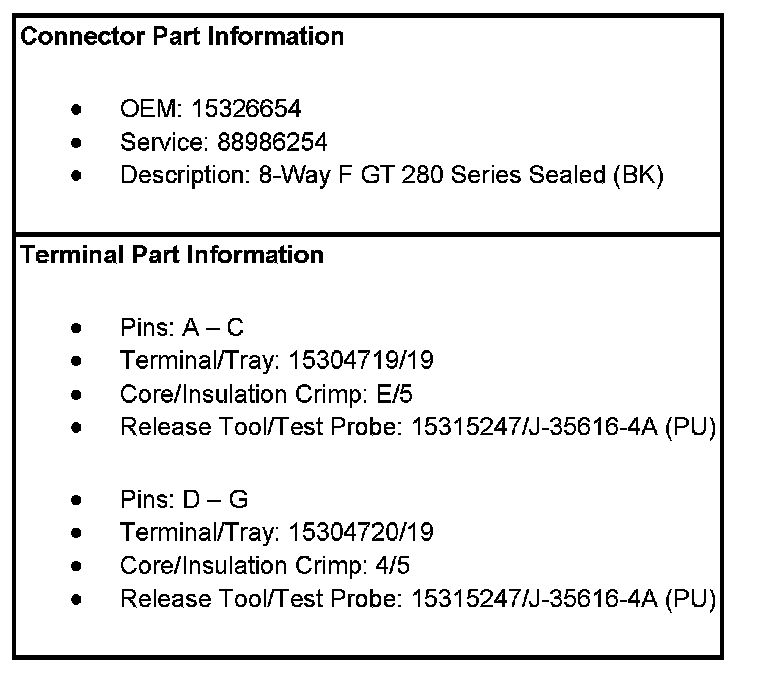

Transfer Case - Encoder Motor:

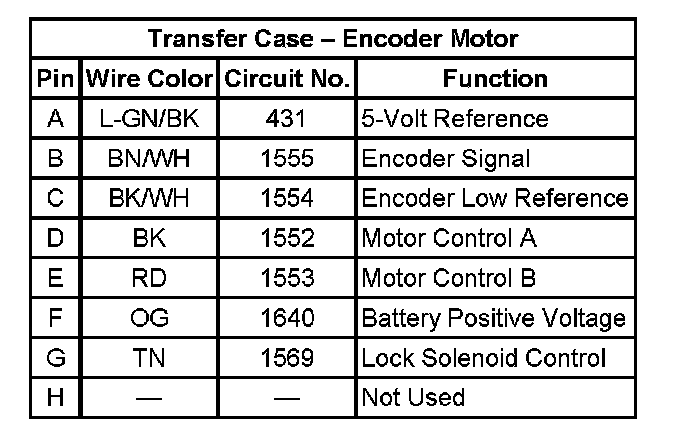

Transfer Case - Encoder Motor:
