NVG 263-NP1 - Transfer Case

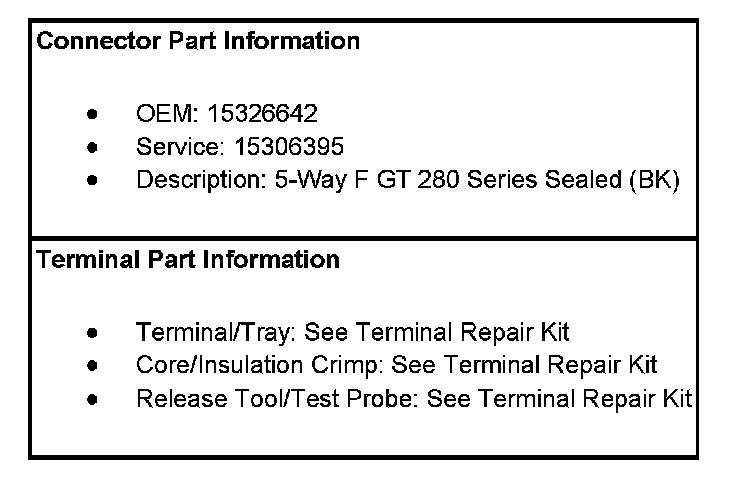

Transfer Case Control Connector End Views

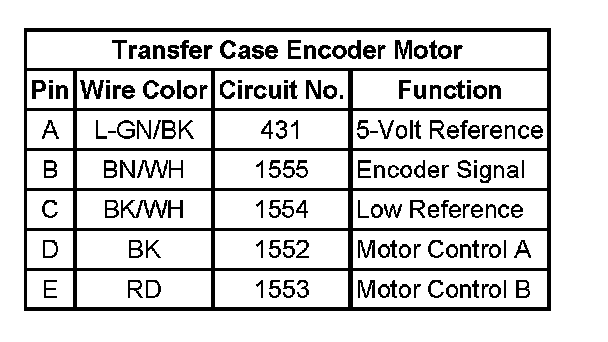

Transfer Case Encoder Motor:







Transfer Case Encoder Motor:
