Blower Motor Resistor: Service and Repair

Blower Motor Resistor Replacement

Removal Procedure

1. If equipped, remove the IP sound insulator.




2. Disconnect the electrical connection from the blower motor.

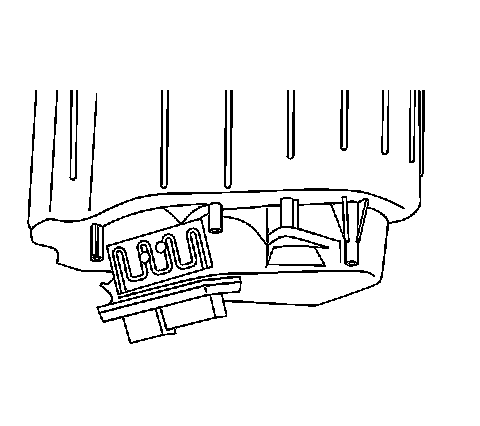

3. Disconnect the electrical connection from the blower motor resistor.

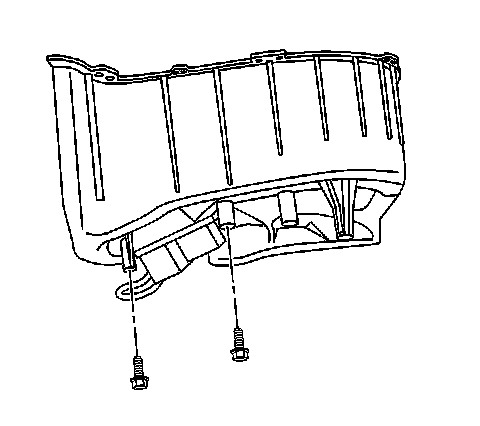

4. Remove the blower motor resistor retaining screws.




5. Remove the blower motor resistor.

Installation Procedure




1. Install the blower motor resistor.





Notice: Refer to Fastener Notice.

2. Install the blower motor resistor retaining screws.

Tighten the screws to 1.6 N.m (14 lb in).




3. Connect the electrical connection to the blower motor resistor.
4. Connect the electrical connection to the blower motor.
5. If equipped, install the IP sound insulator.
