Clearance Lamp: Diagrams

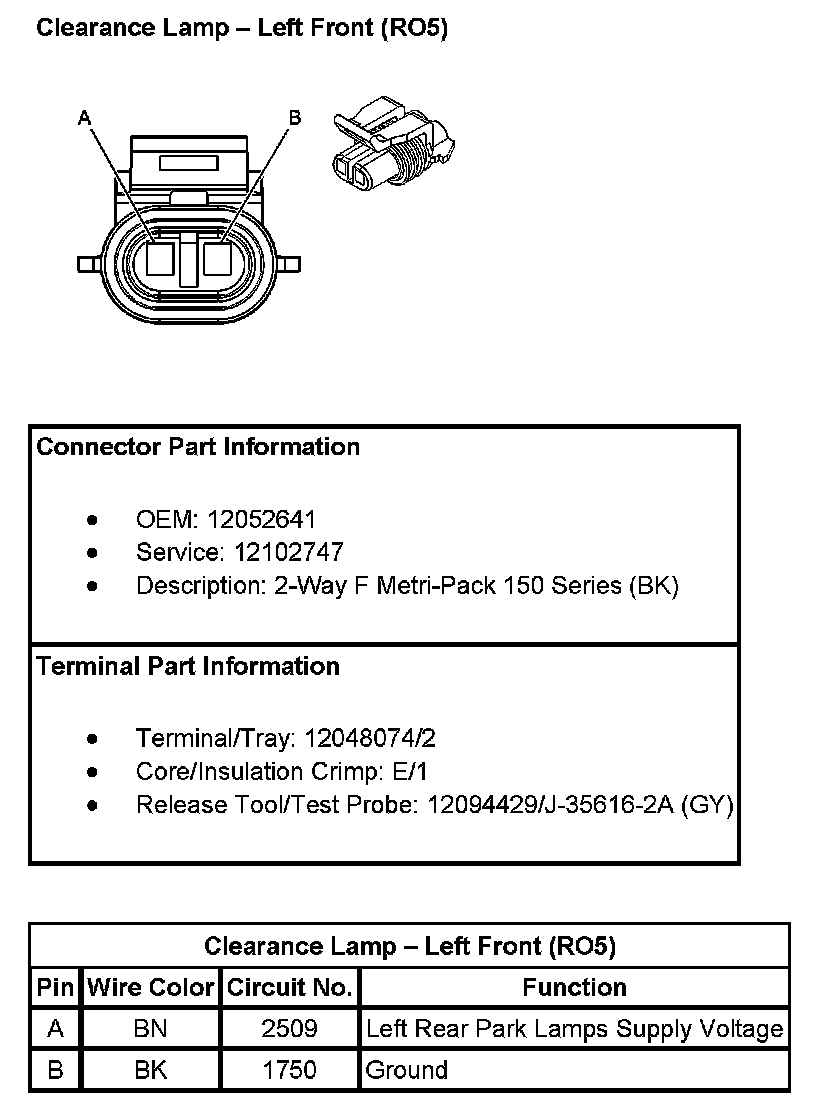

Clearance Lamp - Left Front (With RPO Code RO5):

Clearance Lamp - Left Rear (With RPO Code RO5):

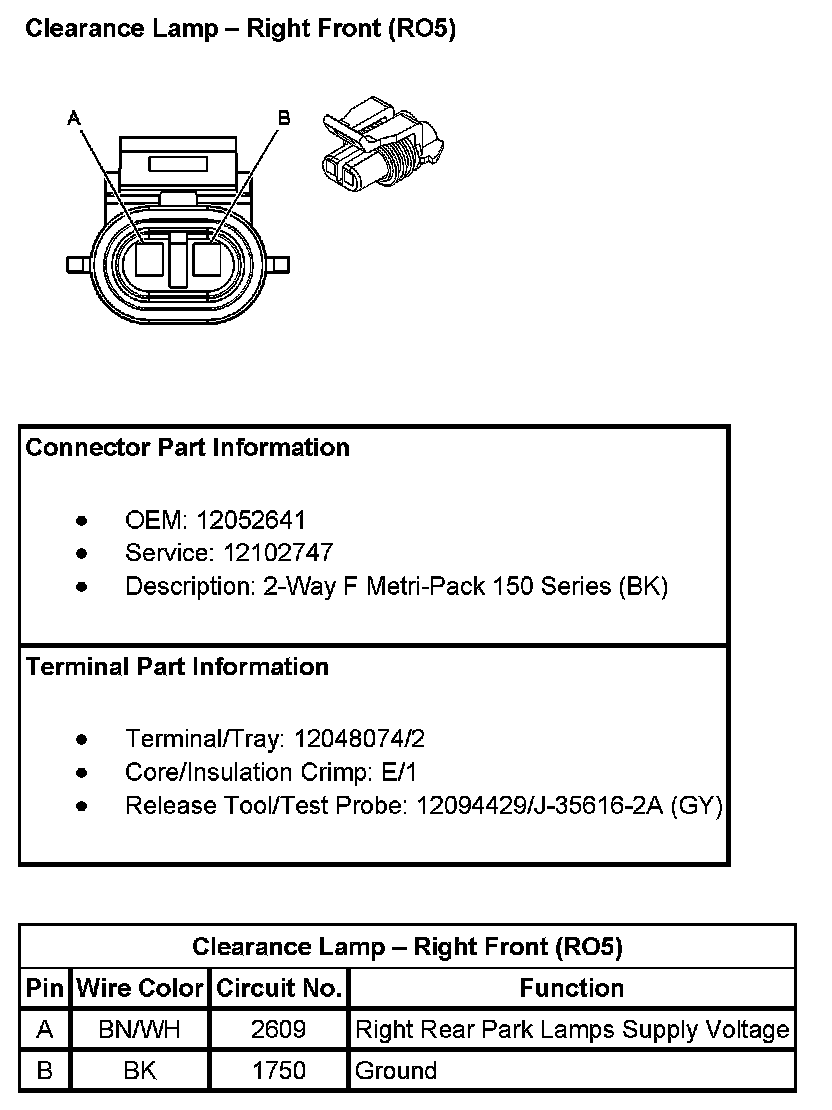

Clearance Lamp - Right Front (With RPO Code RO5):

Clearance Lamp - Right Rear (With RPO Code RO5):

Clearance Lamps (With RPO Code U01):
