License Plate Lamp: Service and Repair

REAR LICENSE LAMP REPLACEMENT (PICKUP W/O BUMPER)

REMOVAL PROCEDURE
1. Ensure the headlamp switch is in the OFF position.

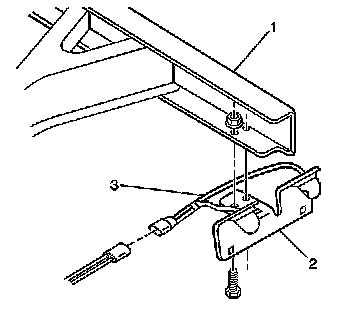

2. Remove the lens from the lamp assembly (2).
3. Remove the bulb.

INSTALLATION PROCEDURE




1. Install the bulb.
2. Install the lens to the lamp assembly (2).
3. Install the wiring (3) to the back of the lens assembly.
