HVAC System - Automatic

Blower Motor:

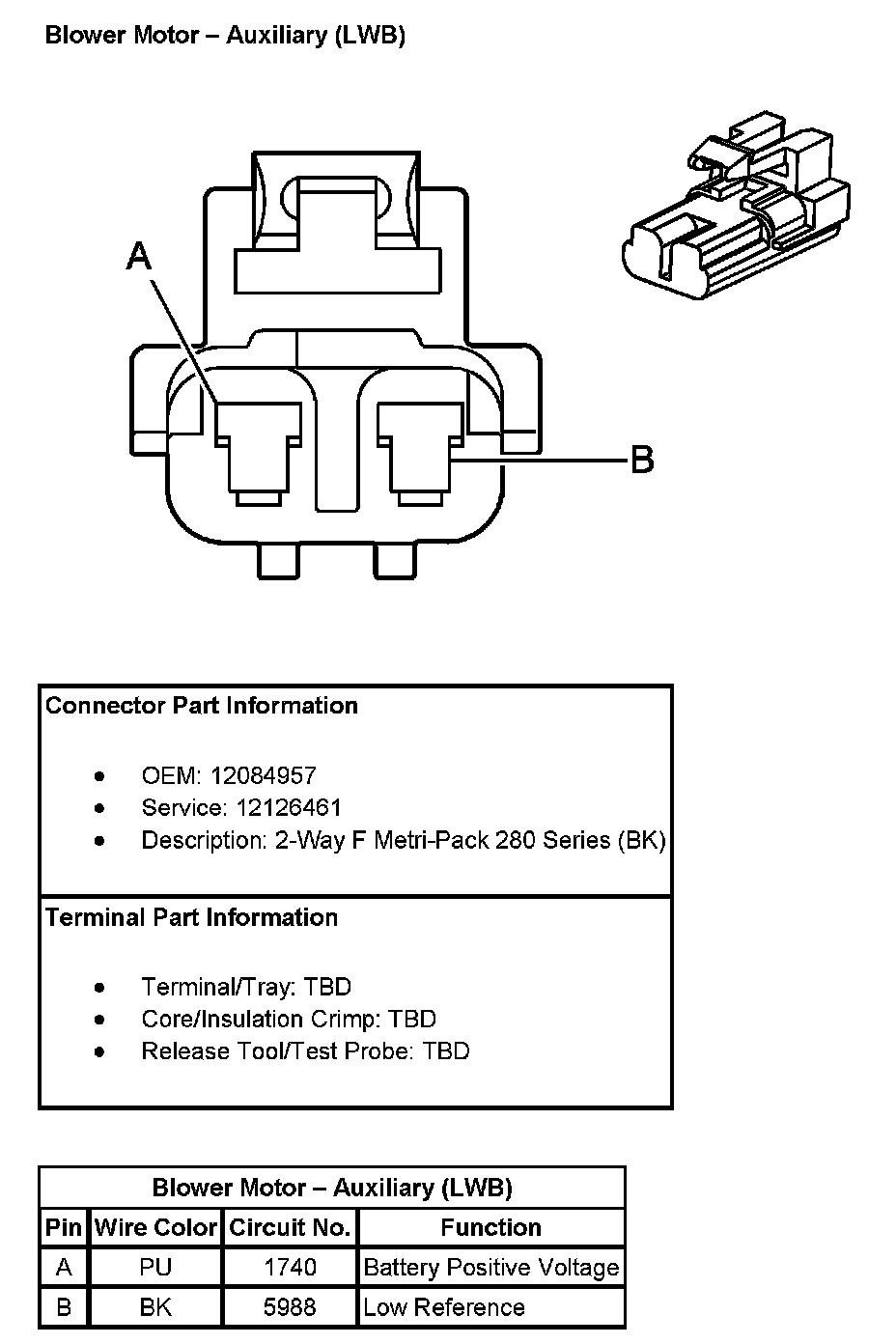

Blower Motor - Auxiliary (LWB):

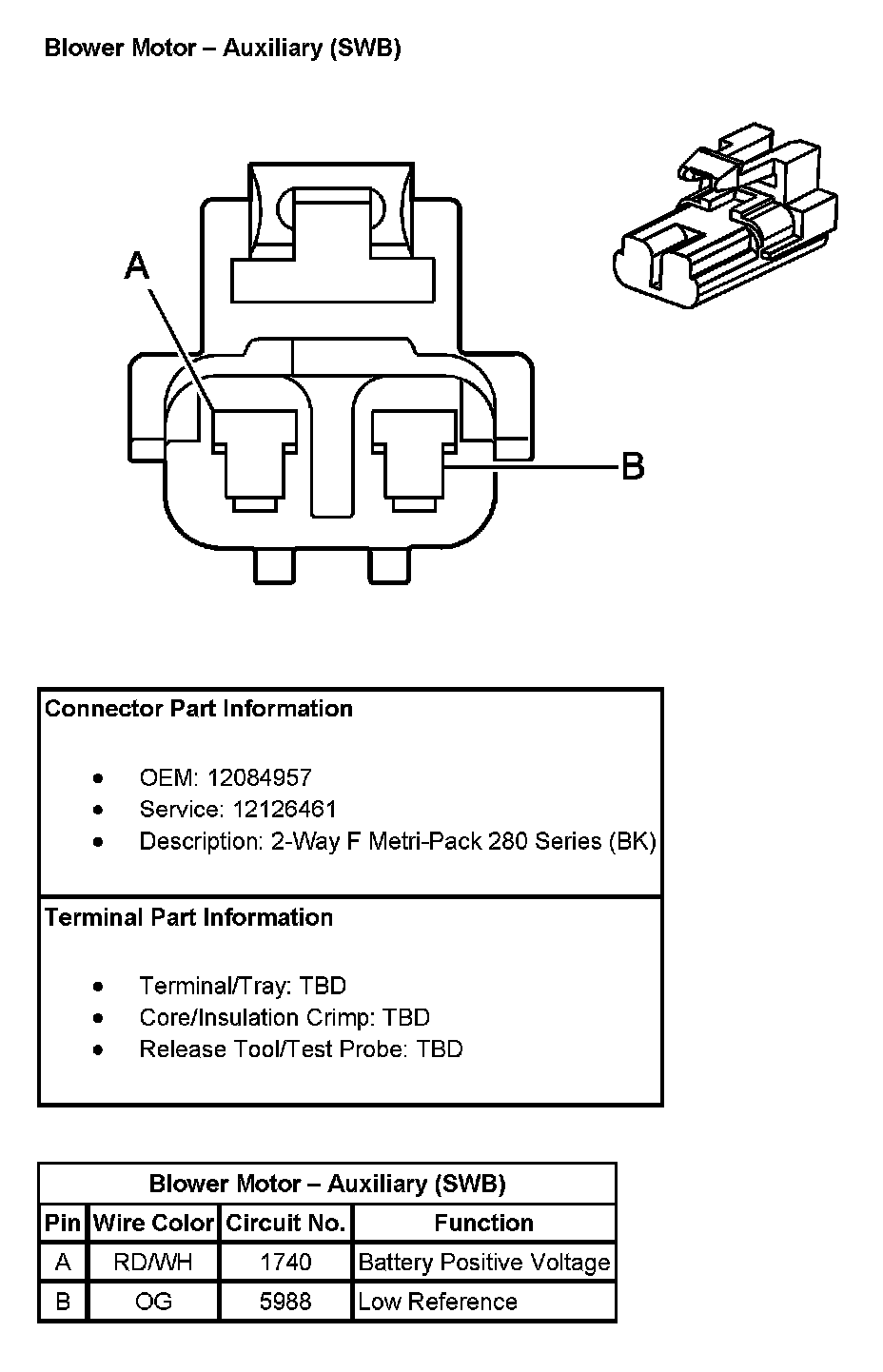

Blower Motor - Auxiliary (SWB):
