Front Door Latch

Door Latch Assembly - Driver:



Door Latch Assembly - LR:



Door Latch Assembly - Passenger:

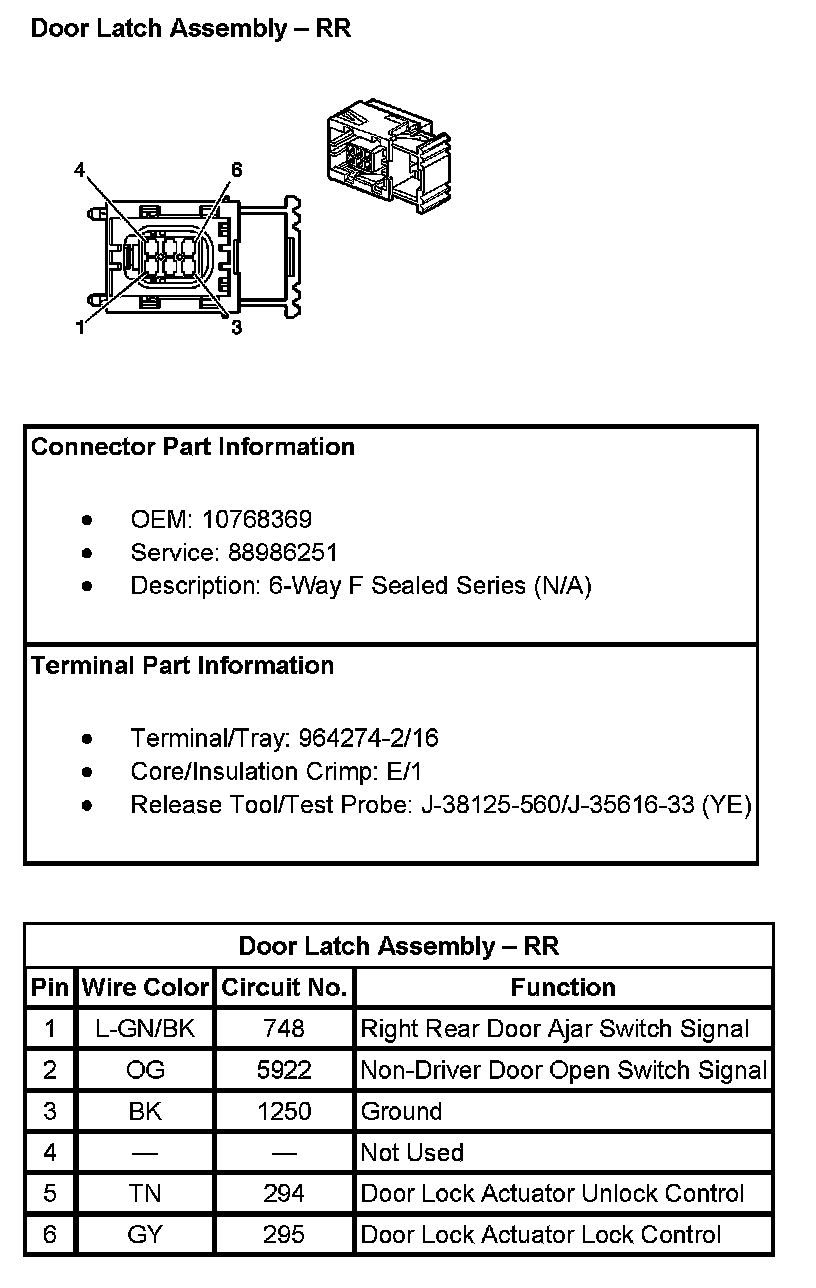

Door Latch Assembly - RR:
