Marker Lamp

Marker Lamp - LR (With RPO Code Z75 Except RPO Codes E52/X88):



Marker Lamp - LR (With RPO Code Z88):

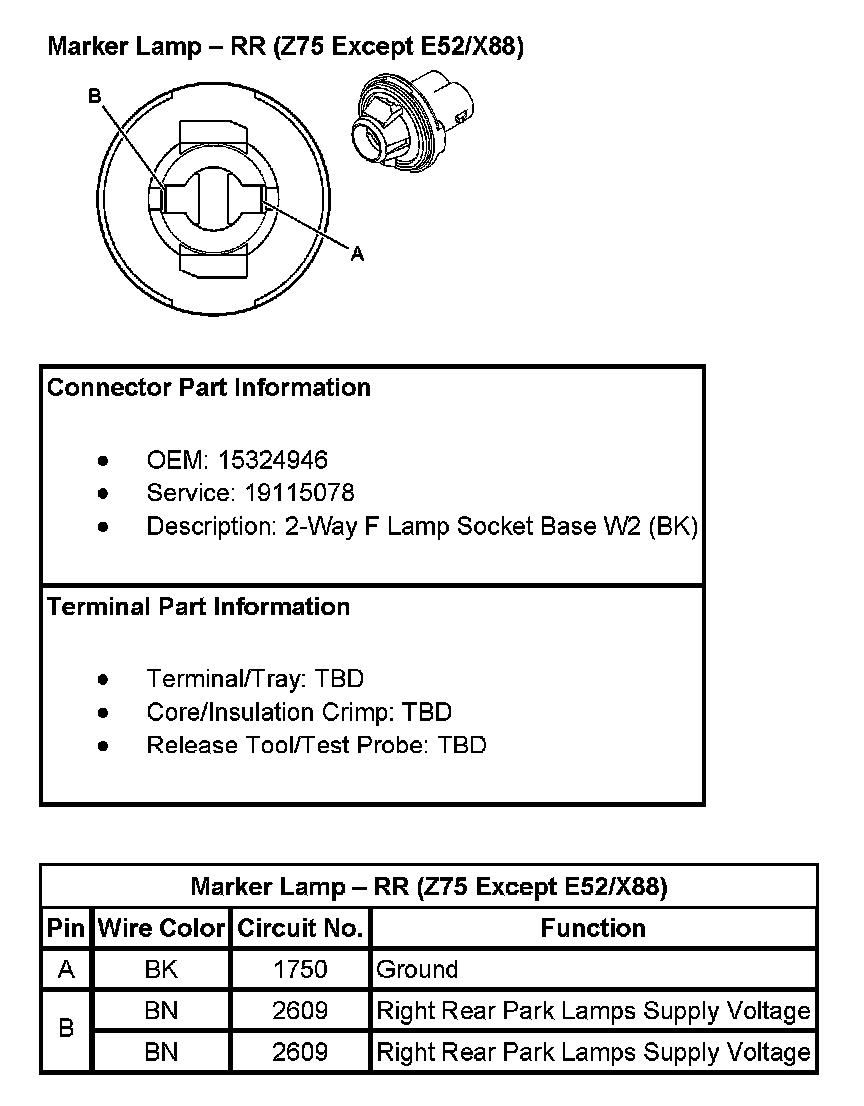

Marker Lamp - RR (With RPO Code Z75 Except RPO Codes E52/X88):



Marker Lamp - RR (With RPO Code Z88):
