Seat Adjuster Switch

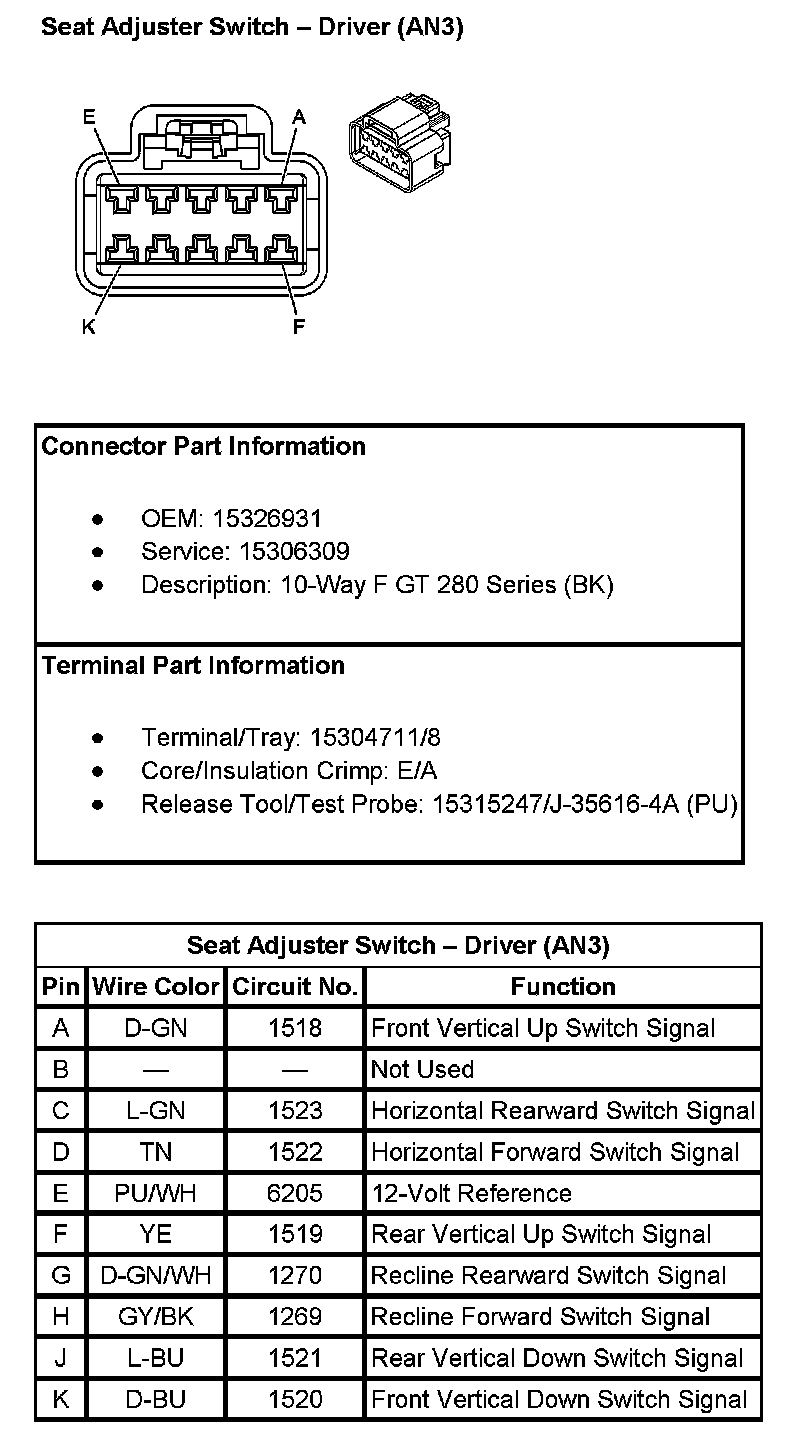

Seat Adjuster Switch - Driver (With RPO Code AN3):

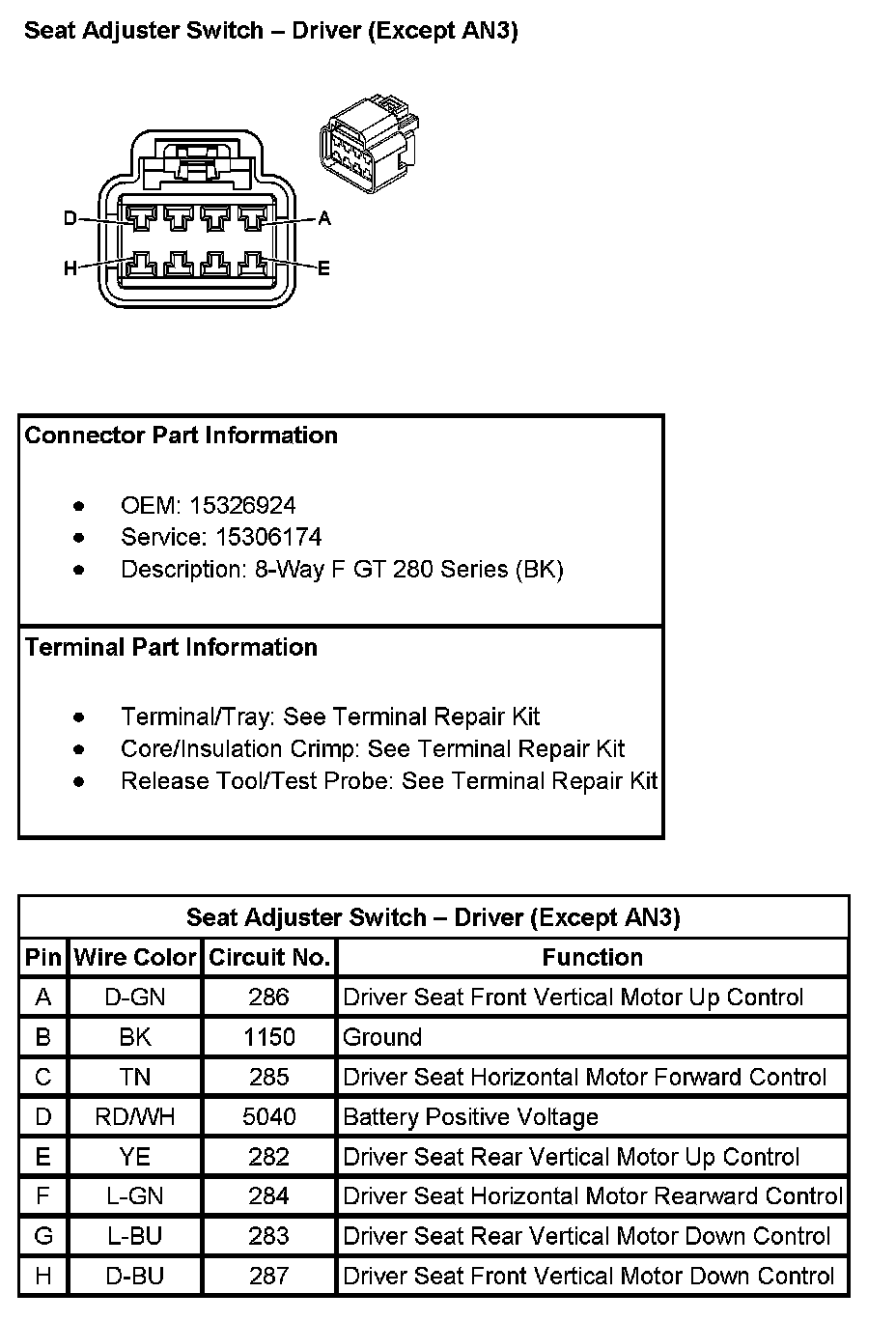

Seat Adjuster Switch - Driver (Except RPO Code AN3):

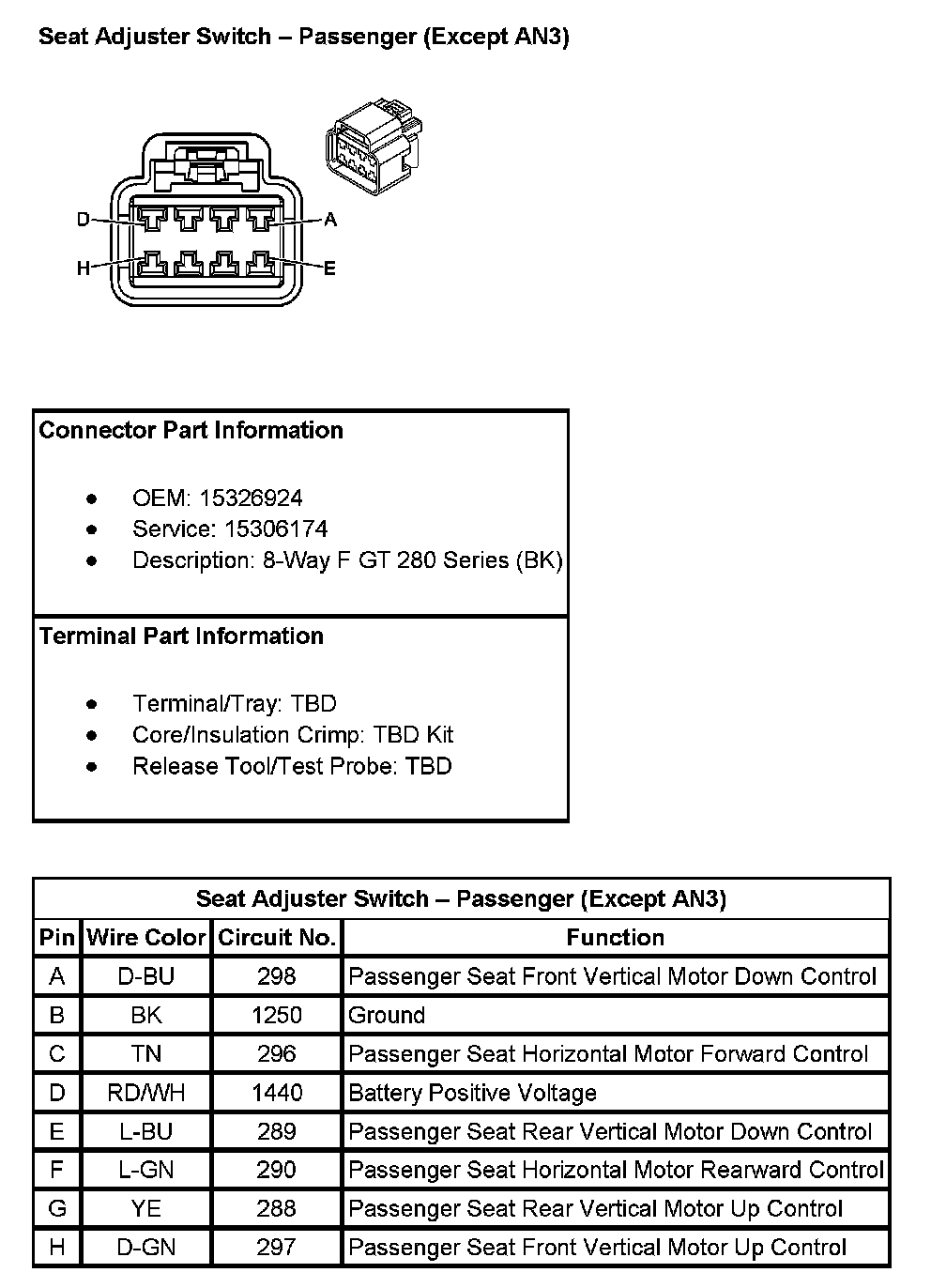

Seat Adjuster Switch - Passenger (Except RPO Code AN3):

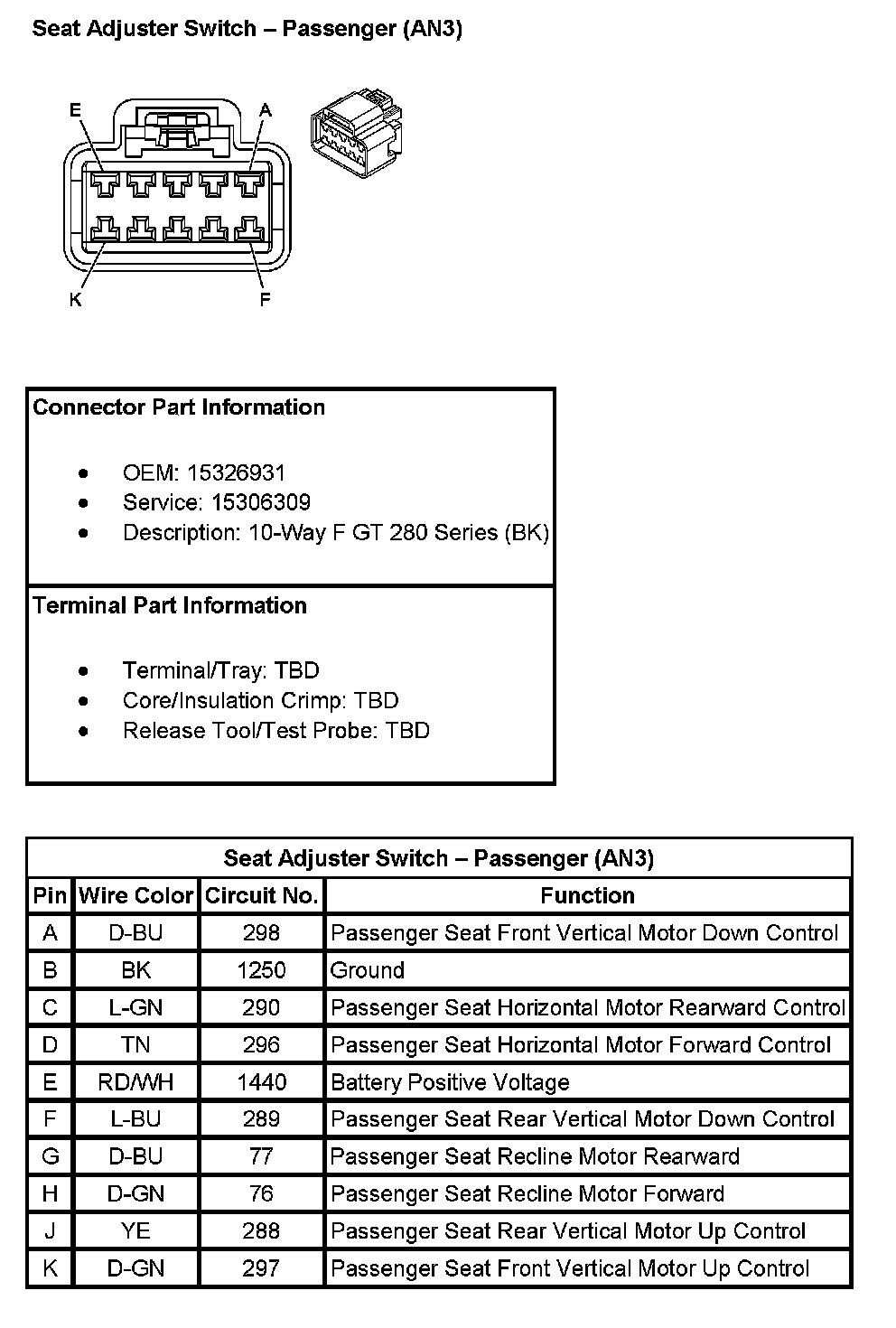

Seat Adjuster Switch - Passenger (With RPO Code AN3):
