Radio C1 (Except With RPO Code Y91)
Radio C1 (Except With RPO Code Y91)

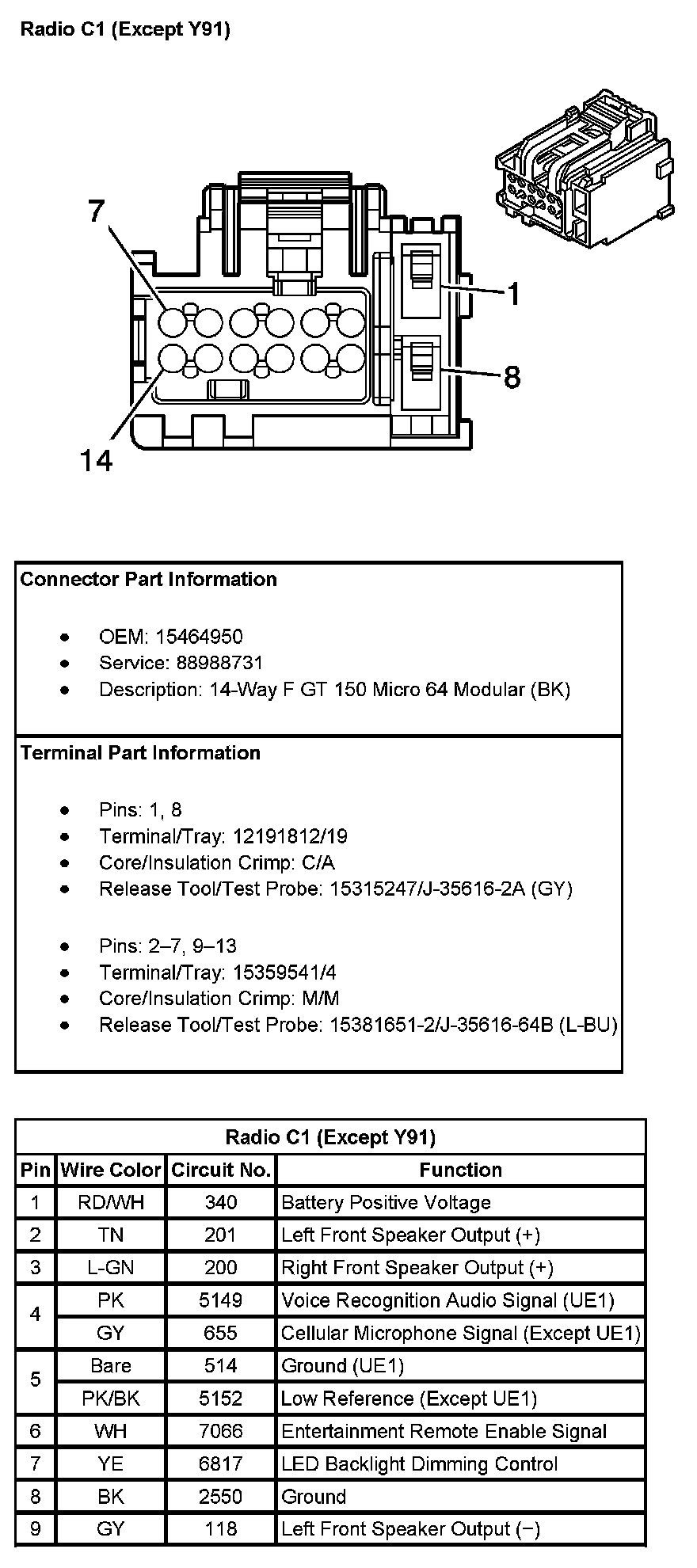

Radio C1 (Except RPO Code Y91) (Pin 1 To 9):
Radio C1 (Except RPO Code Y91) (Pin 10 To 14):
