Heated Seat Element - Driver
Heated Seat Element - Driver

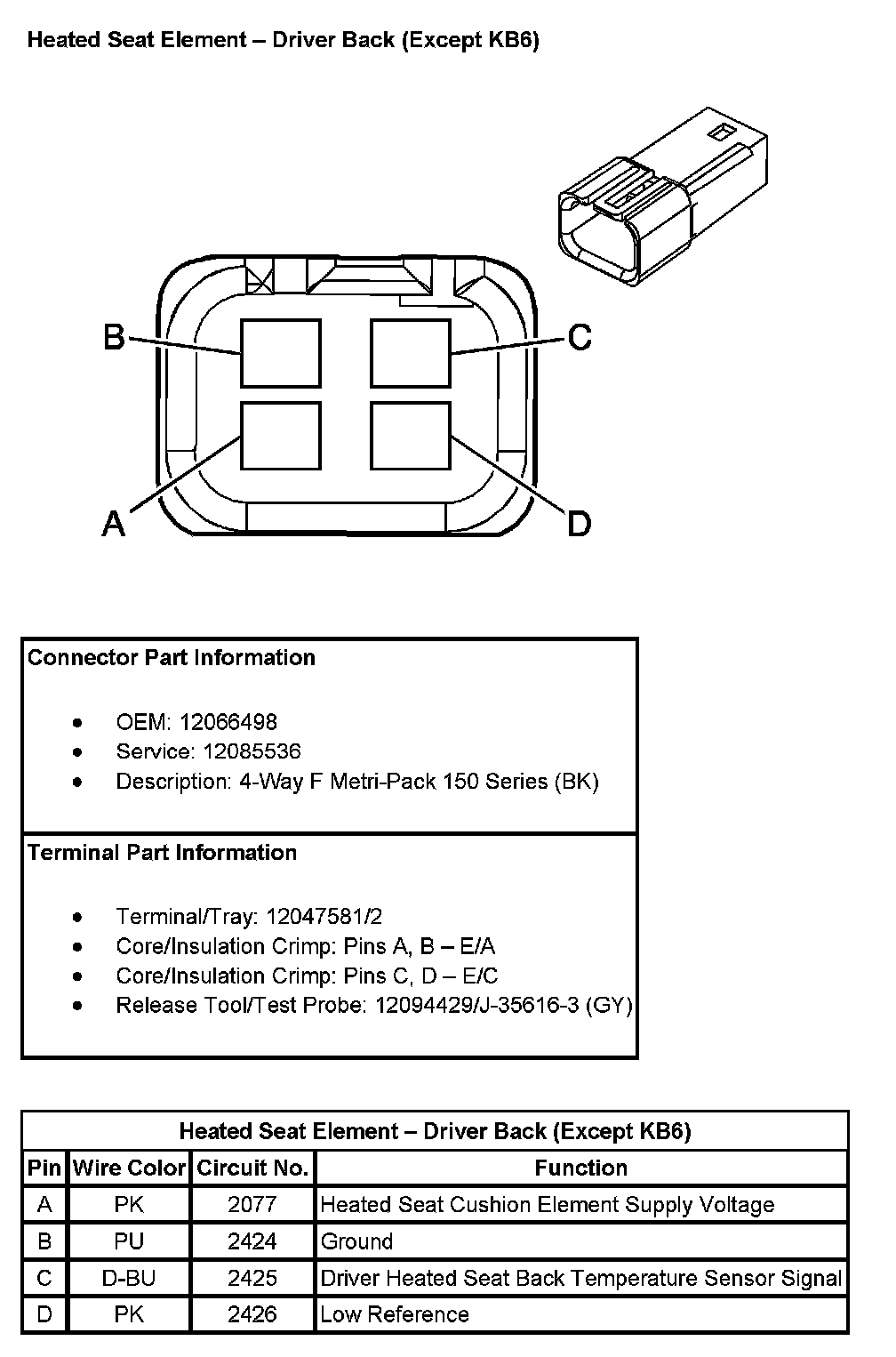

Heated Seat Element - Driver Back (Except RPO Code KB6):

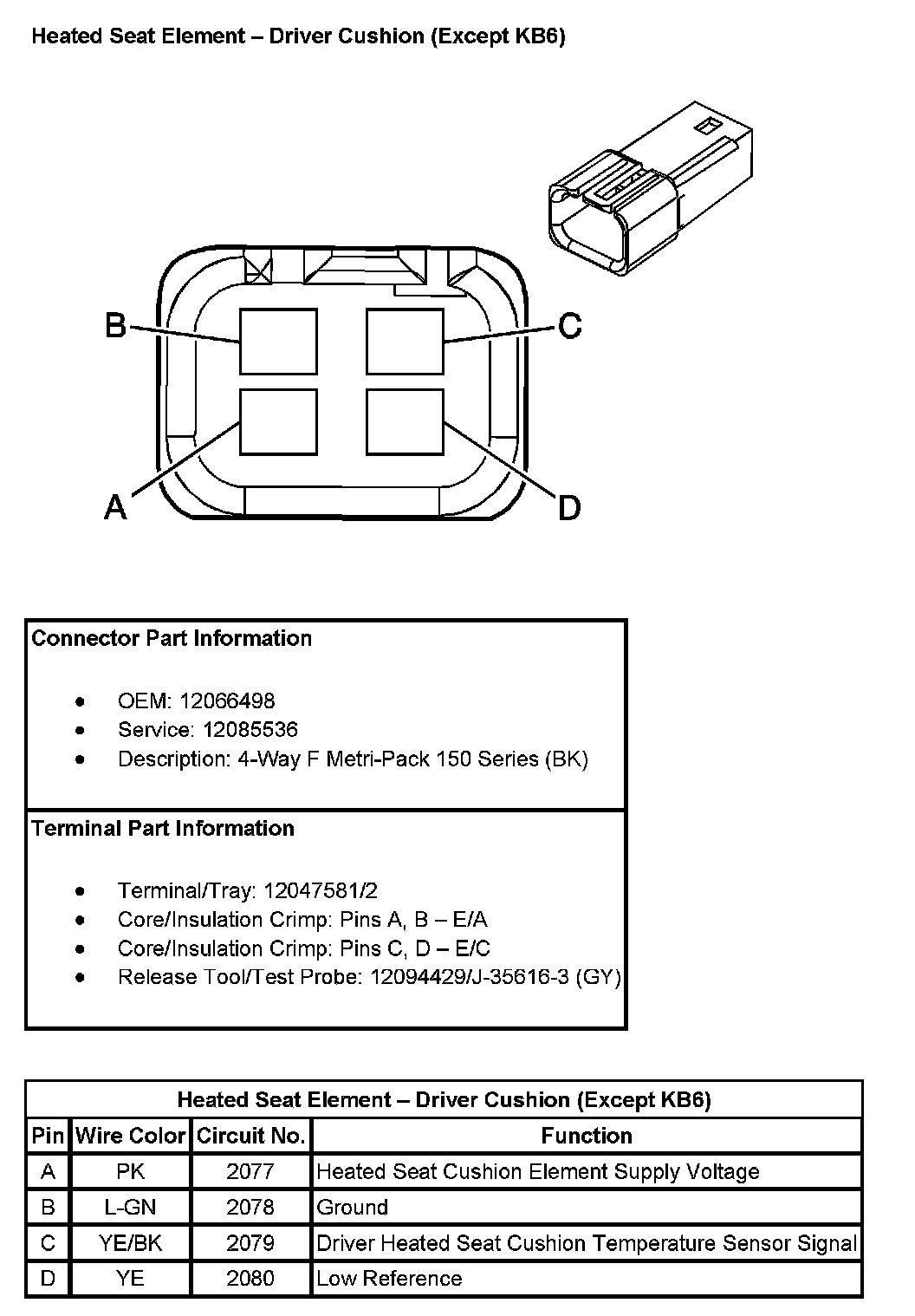

Heated Seat Element - Driver Cushion (Except RPO Code KB6):
