Chevy Truck
>>
2007
>>
Suburban 4WD V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>
Heated Seat Element - LR (With RPO Code KA6)
Heated Seat Element - LR (With RPO Code KA6)

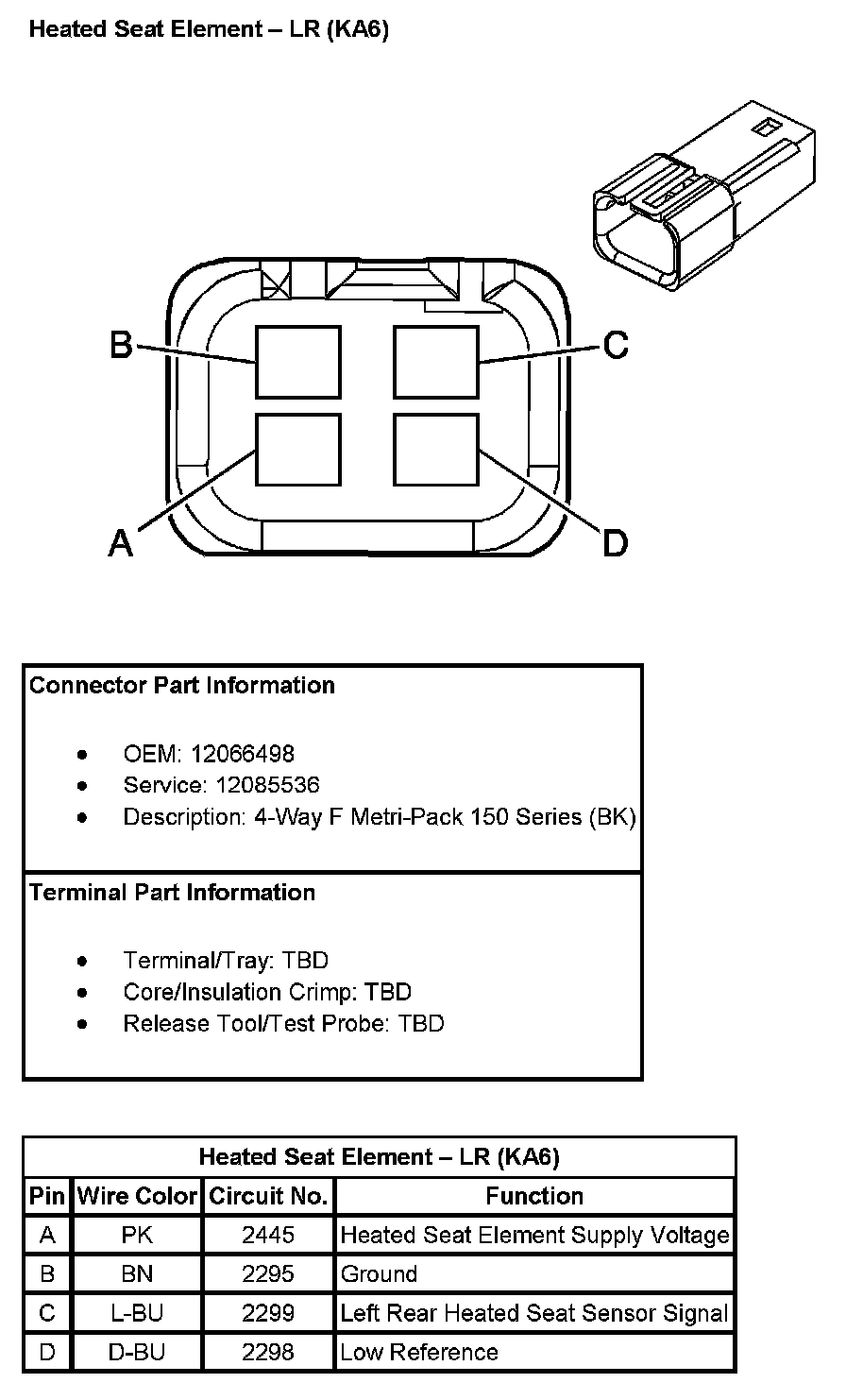

Heated Seat Element - LR (With RPO Code KA6):
