Front Axle Actuator



Transfer Case Control Connector End Views

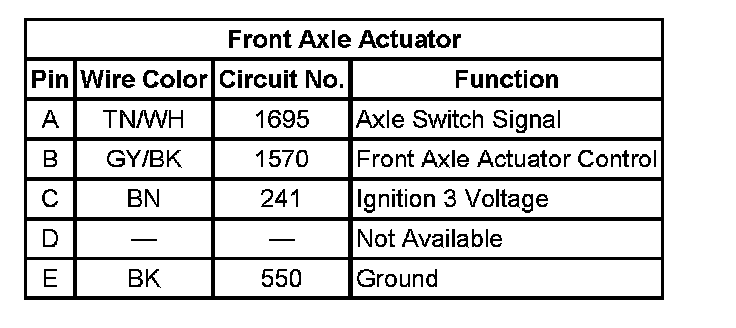

Front Axle Actuator:







Front Axle Actuator:
