Transfer Case Encoder Motor



Transfer Case Control Connector End Views

Transfer Case Encoder Motor (NP8)

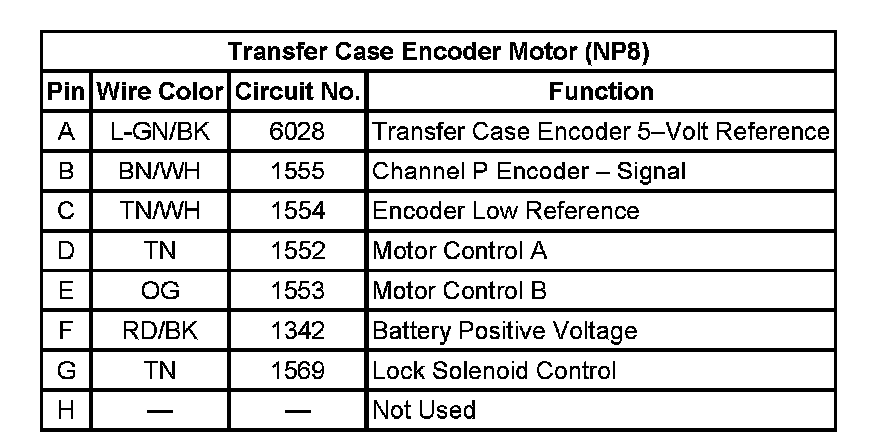

Transfer Case Encoder Motor (NP8):
