Trunk / Liftgate Latch
Trunk / Liftgate Latch
Liftgate Latch Assembly (With RPO Code E61):

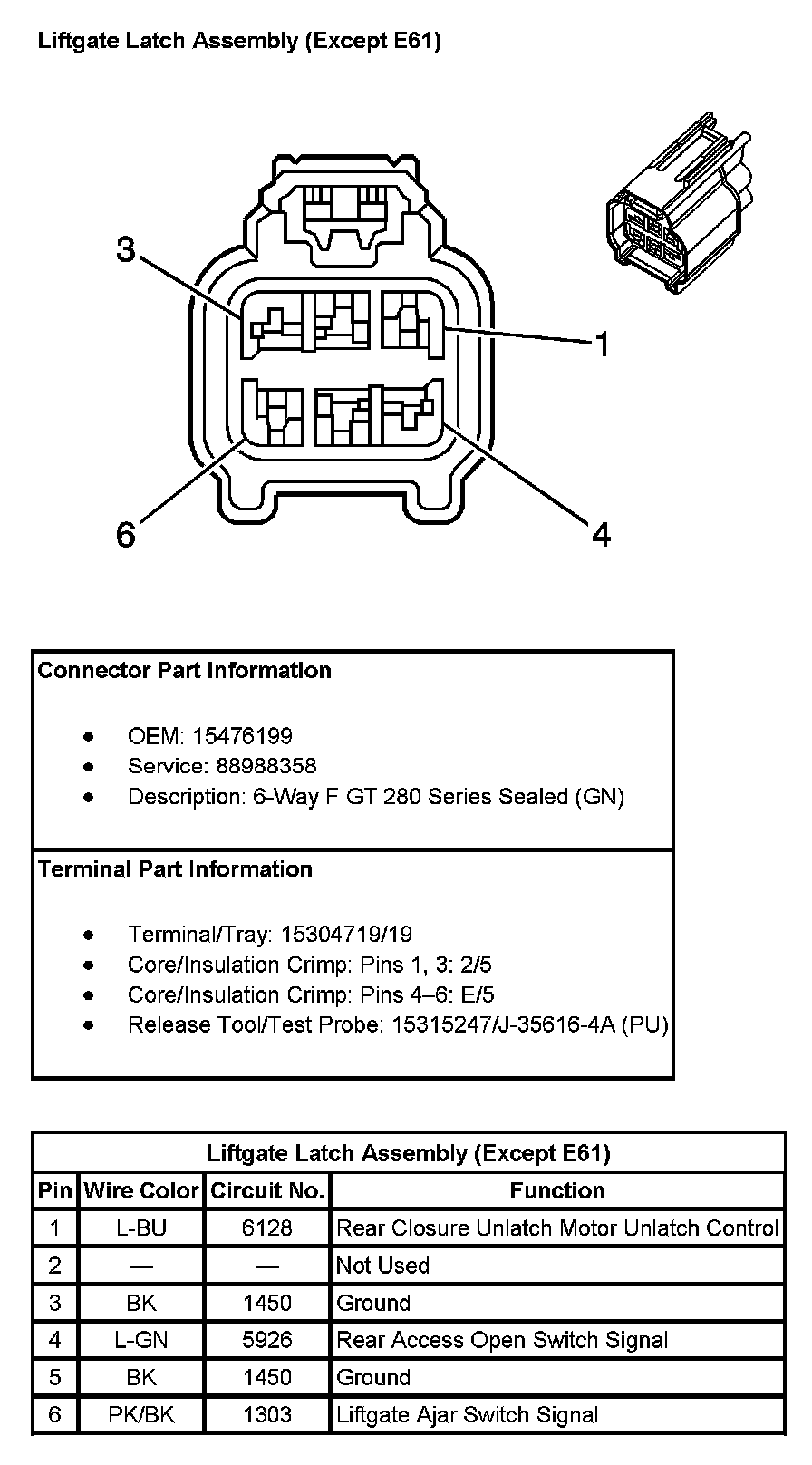

Liftgate Latch Assembly (Except RPO Code E61):
Liftglass Latch Assembly:
