Transfer Case

Transfer Case Control Schematics

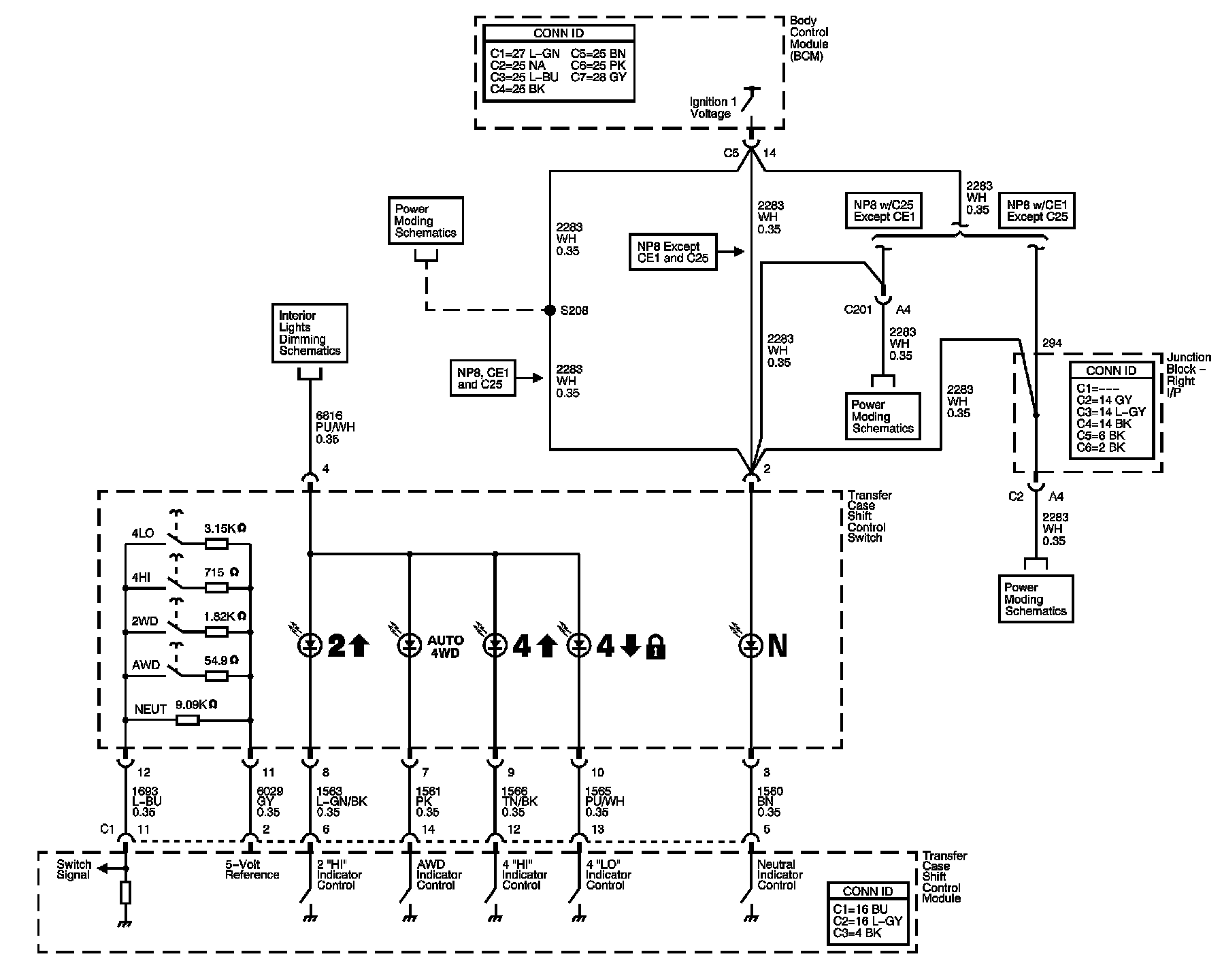

Transfer Case Control Schematics 1:

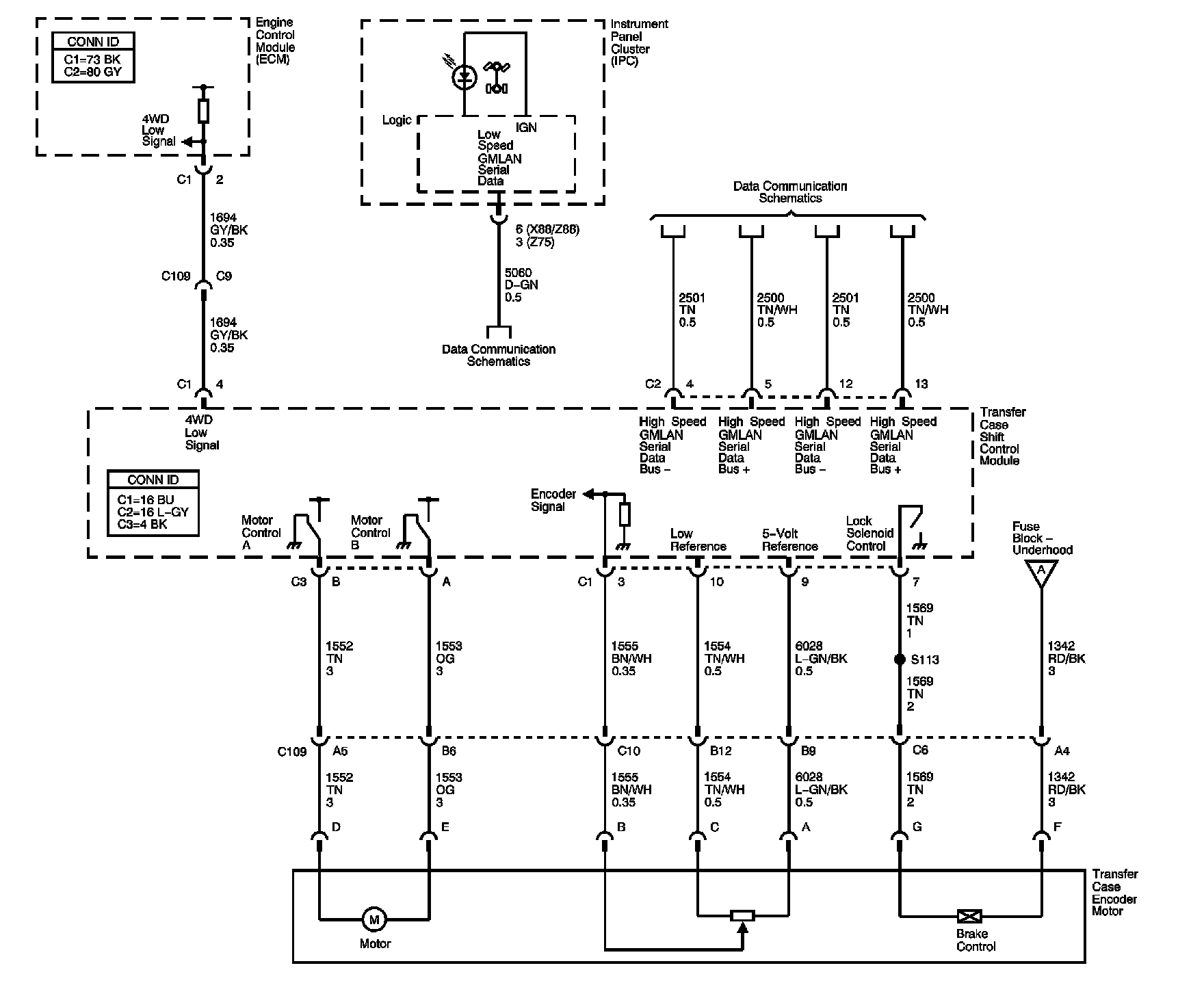

Transfer Case Control Schematics 2:

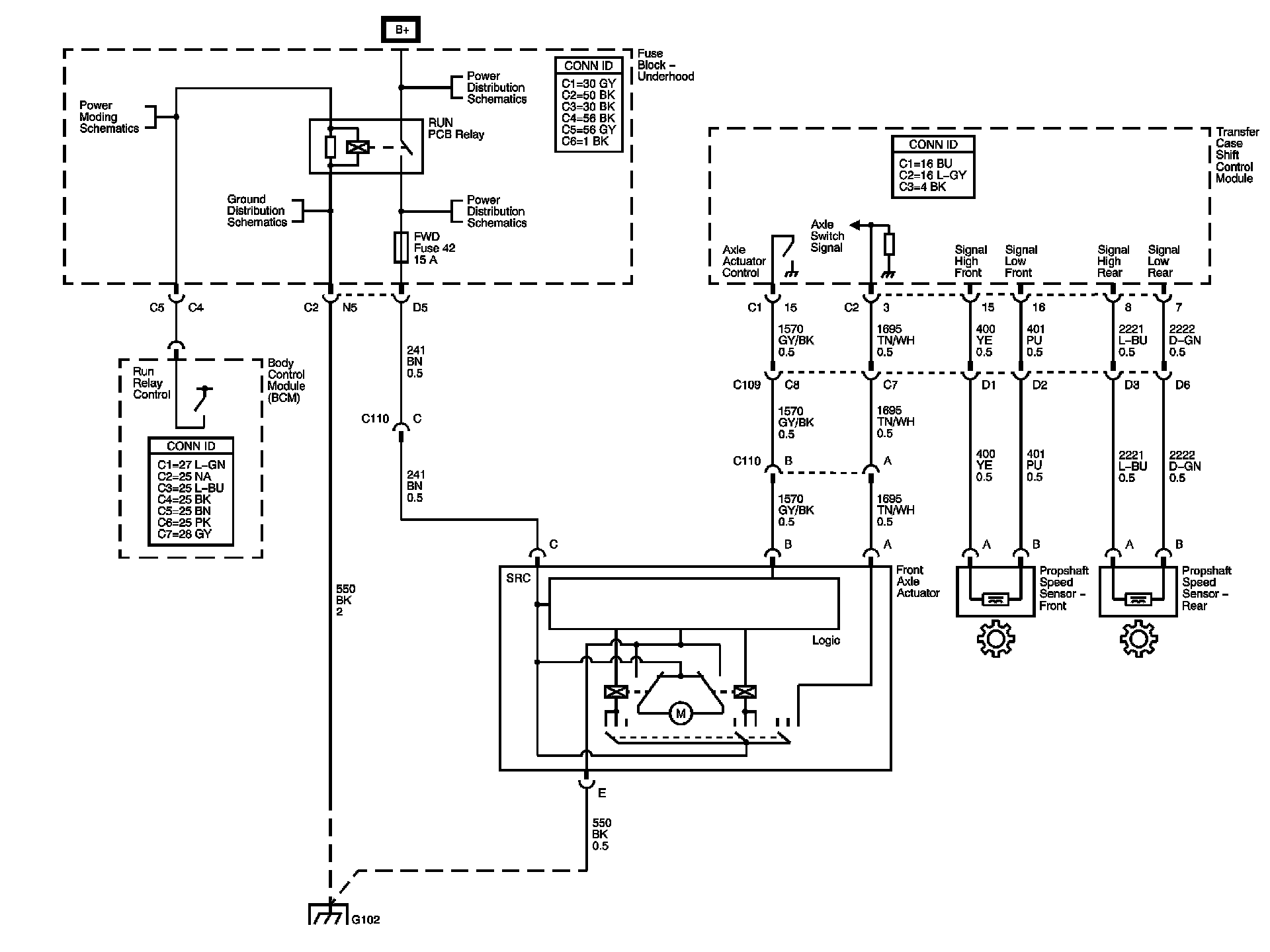

Transfer Case Control Schematics 3:

Transfer Case Control Schematics 4:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Location. Locations
