Home >> Chevy Truck >> 2007 >> Suburban 4WD V8-6.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Headliner Views >> Headliner Harness (Short Wheel Base With RPO Code Y91)

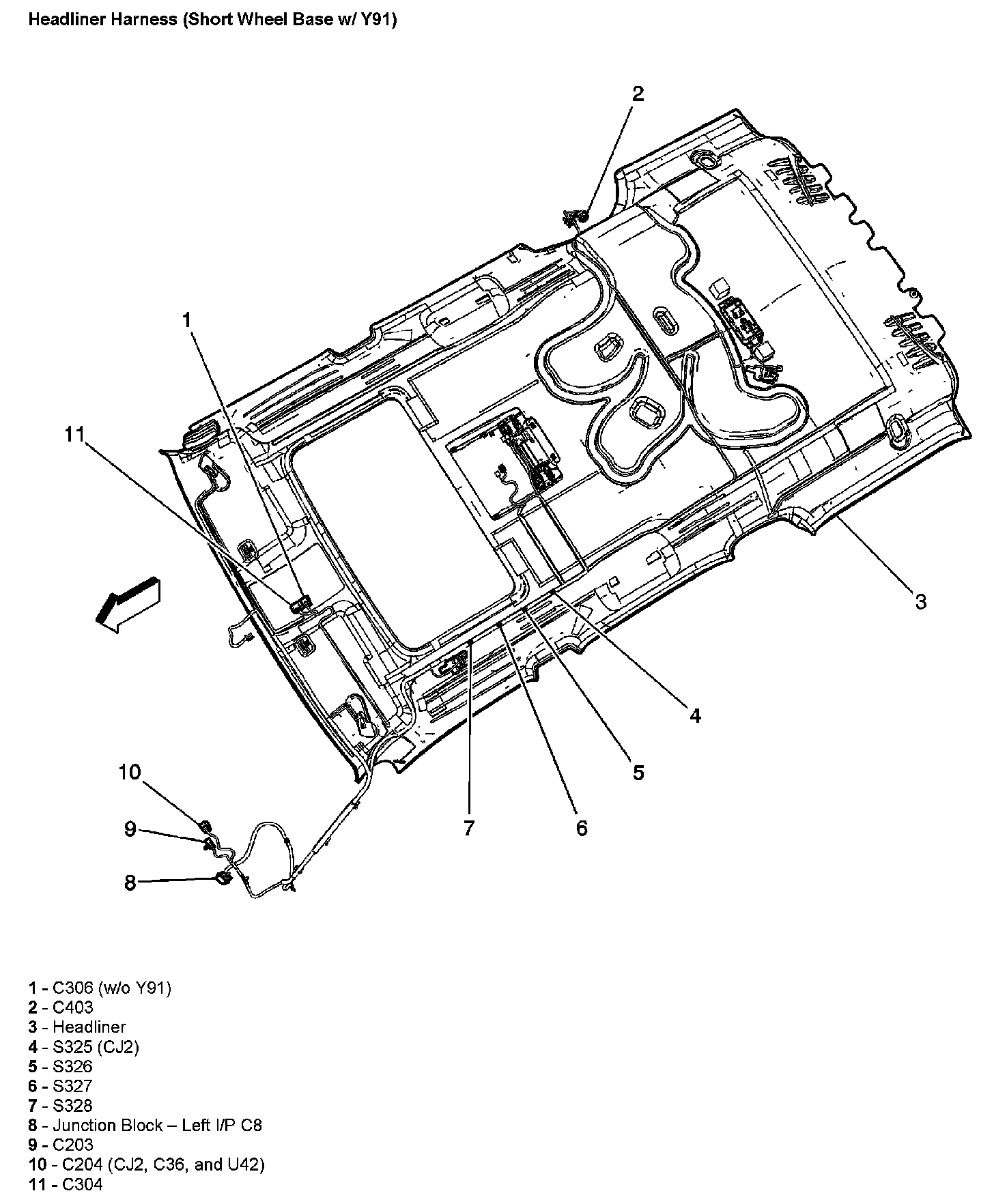

Headliner Harness (Short Wheel Base With RPO Code Y91)

Headliner Harness (Short Wheel Base With RPO Code Y91):
