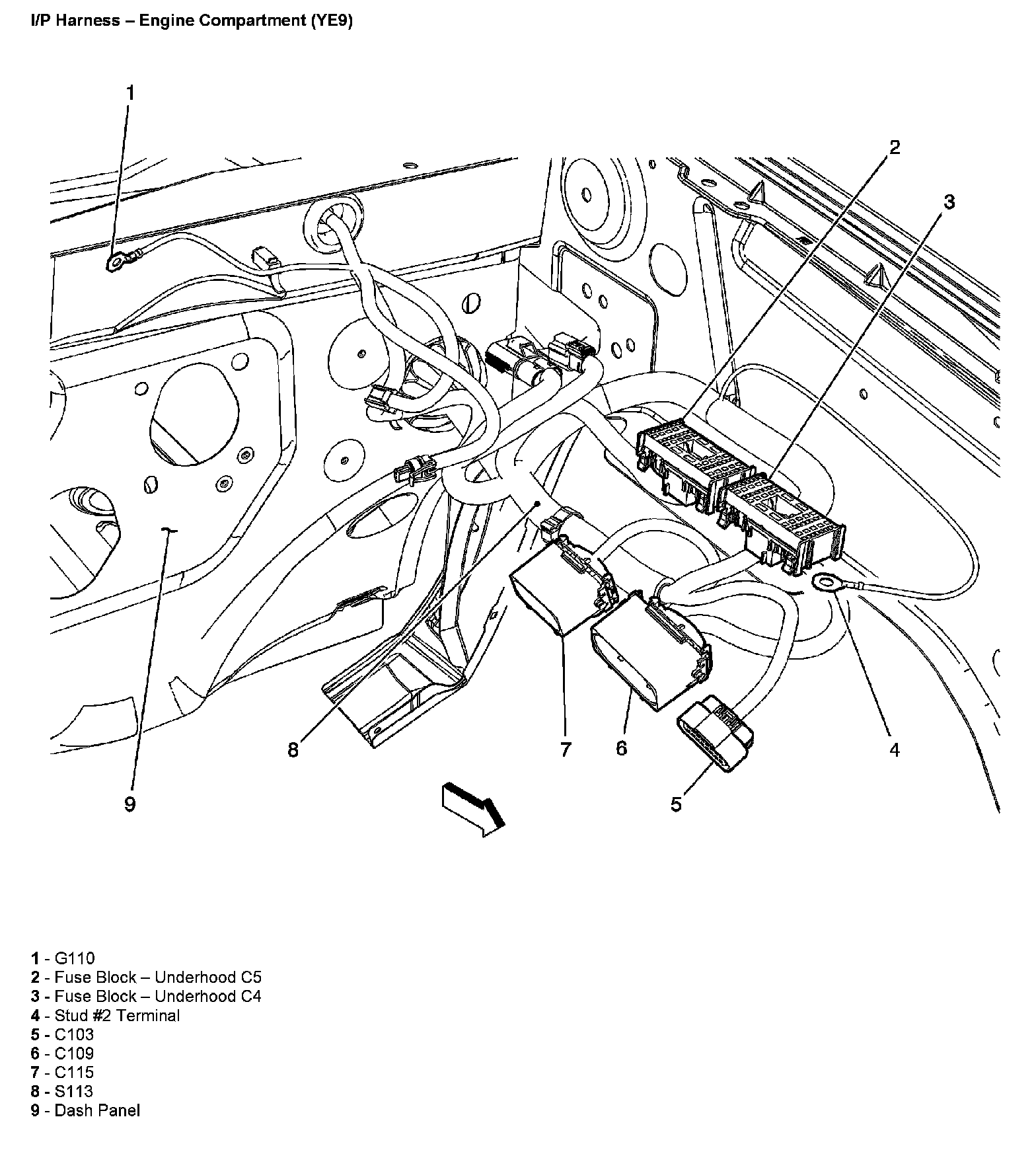

I/P Harness - Engine Compartment (With RPO Code YE9)

I/P Harness - Engine Compartment (With RPO Code YE9):
