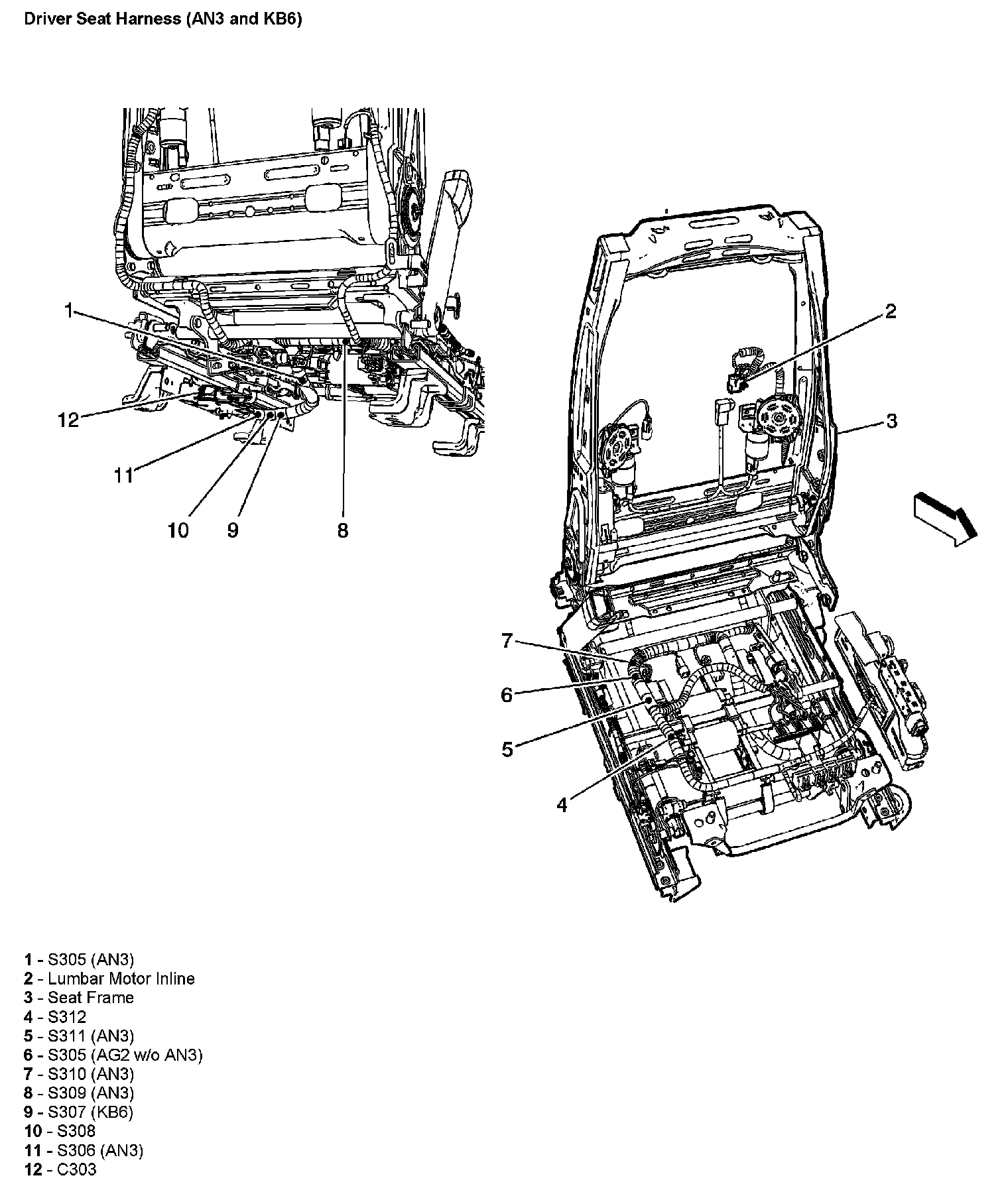

Driver Seat Harness (With RPO Code AN3 and KB6)
Driver Seat Harness (With RPO Code AN3 and KB6)
Driver Seat Harness (With RPO Codes AN3 And KB6):
