Control Assembly: Diagrams

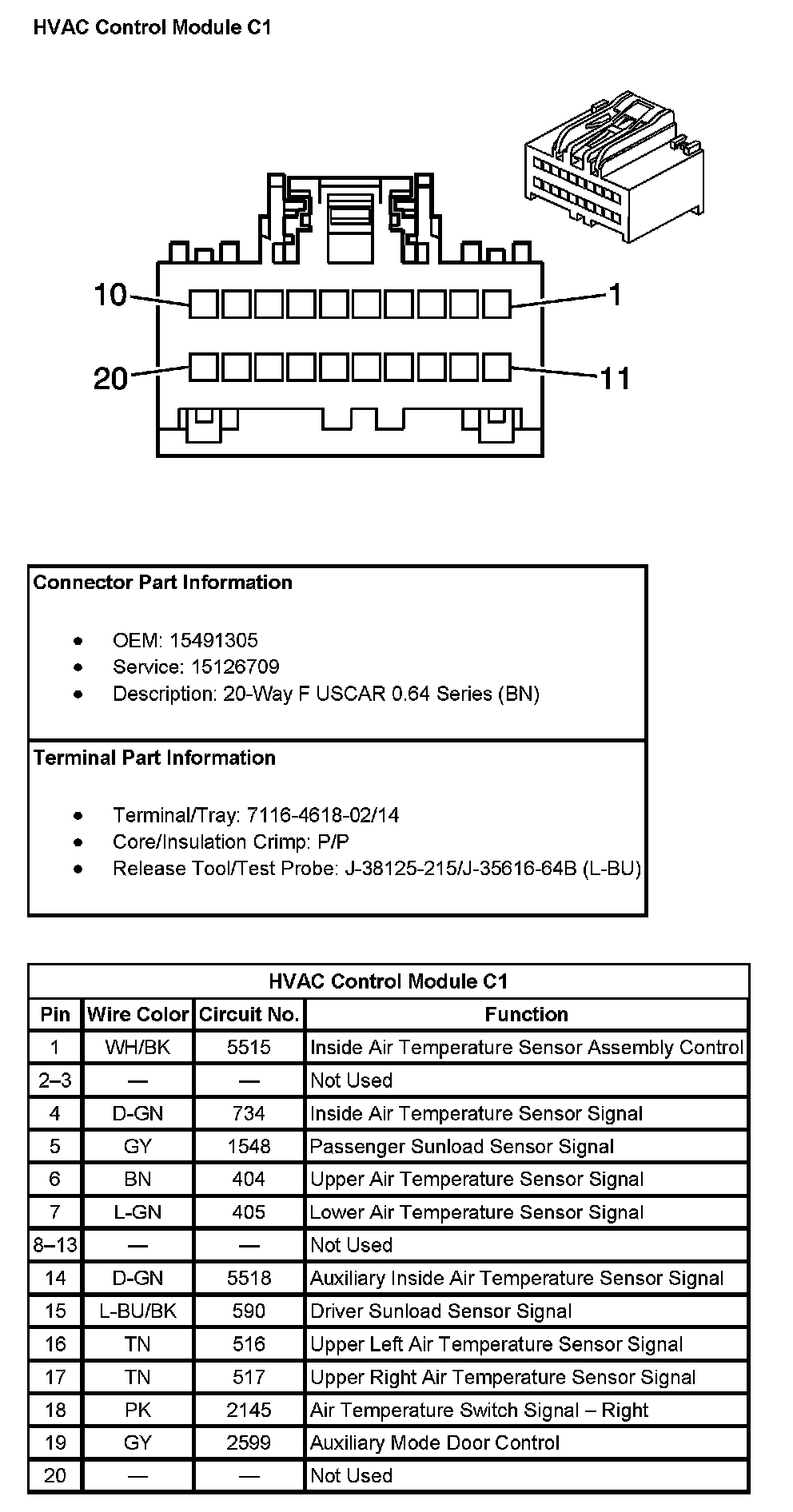

HVAC Control Module C1:

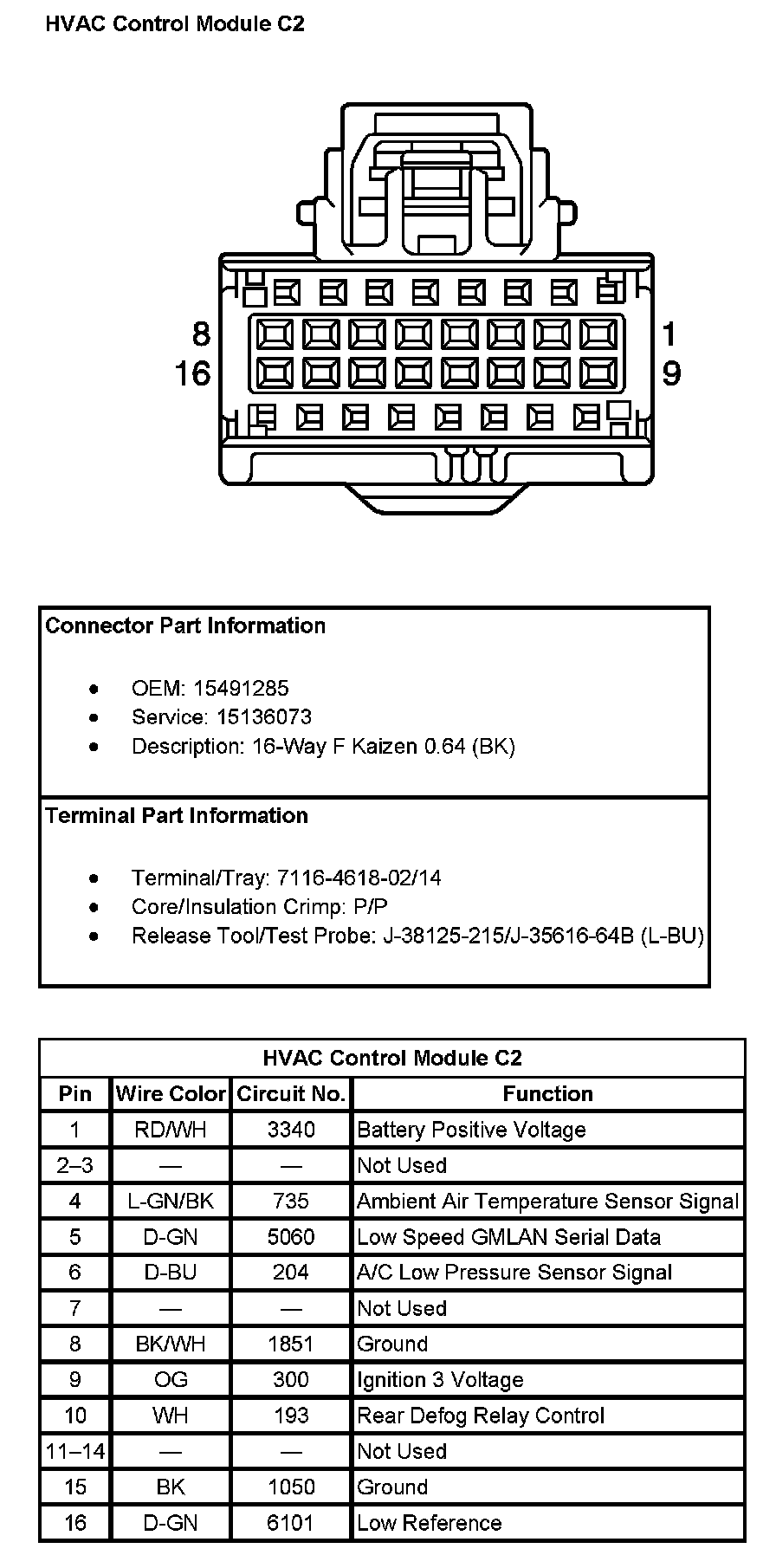

HVAC Control Module C2:

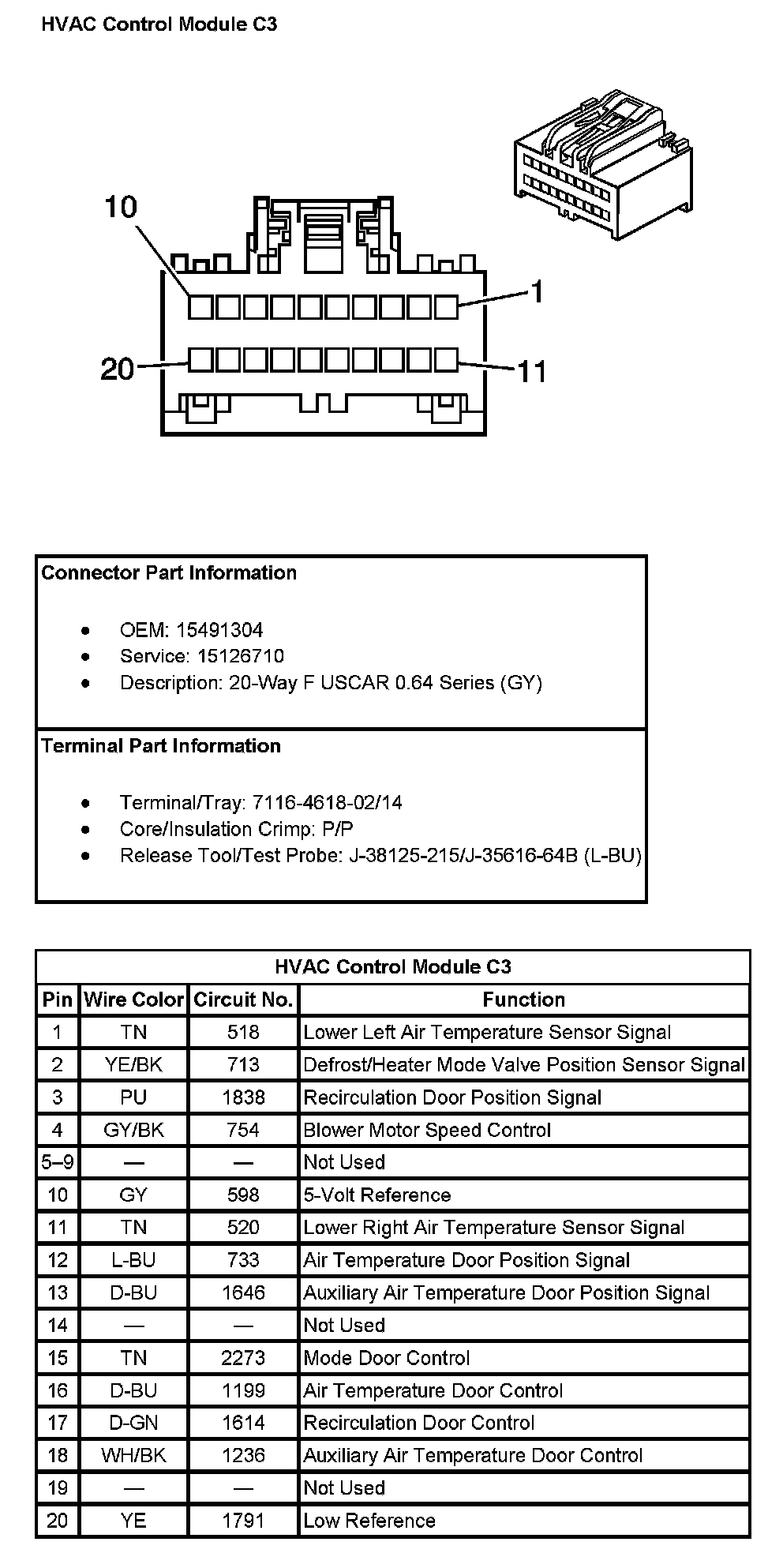

HVAC Control Module C3:

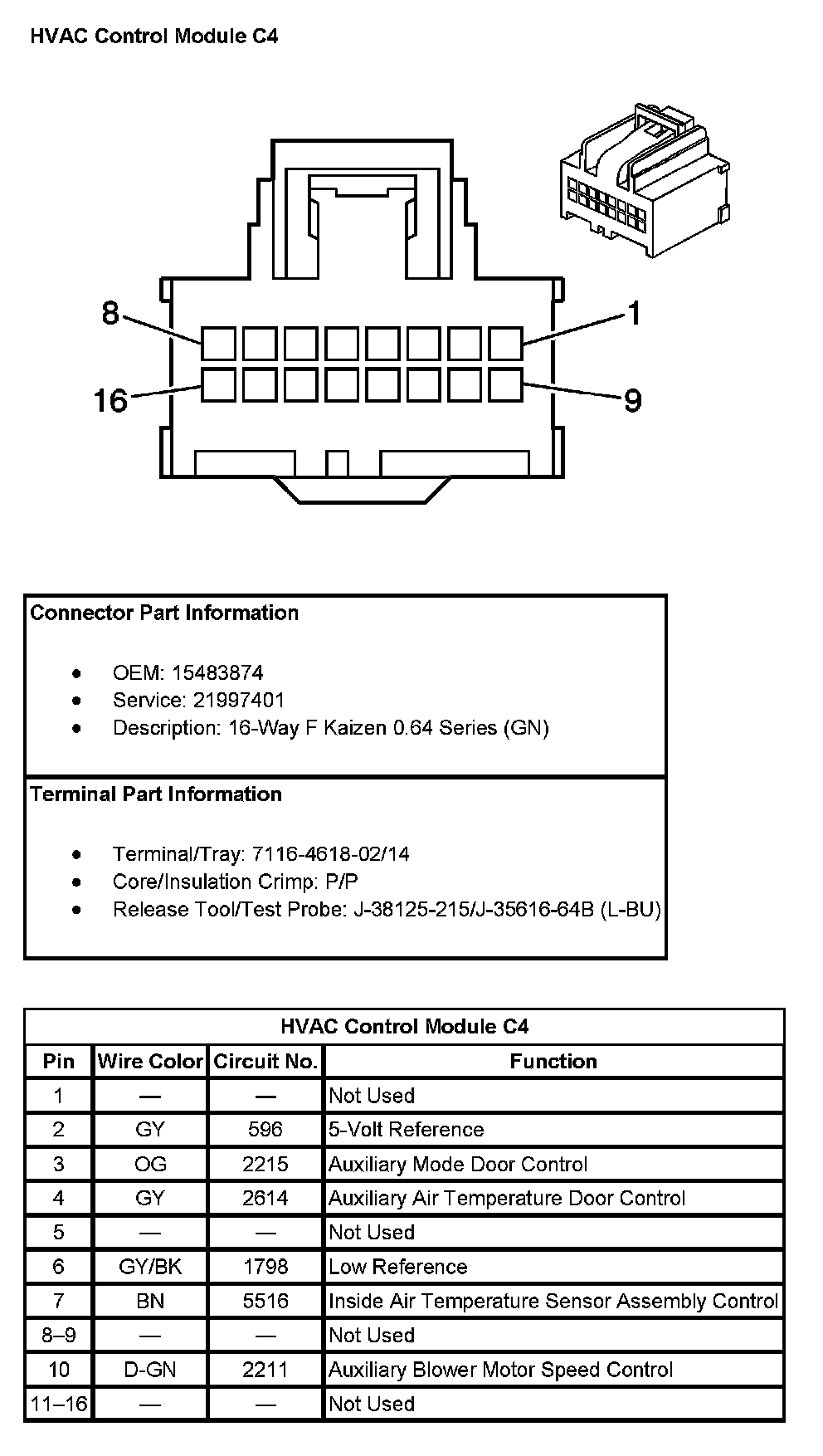

HVAC Control Module C4:
