Transfer Case: Locations

Transfer Case Control Component Views

Front Axle (NP8):

1 - Frame
2 - C110
3 - Front Axle Housing
4 - Front Axle Actuator

Below the I/P:

1 - I/P Trim
2 - I/P Cluster Trim
3 - Floor Panel
4 - Junction Block - Left I/P
5 - Body Control Module (BCM)
6 - Transfer Case Shift Control Module
7 - Fuse Block - I/P

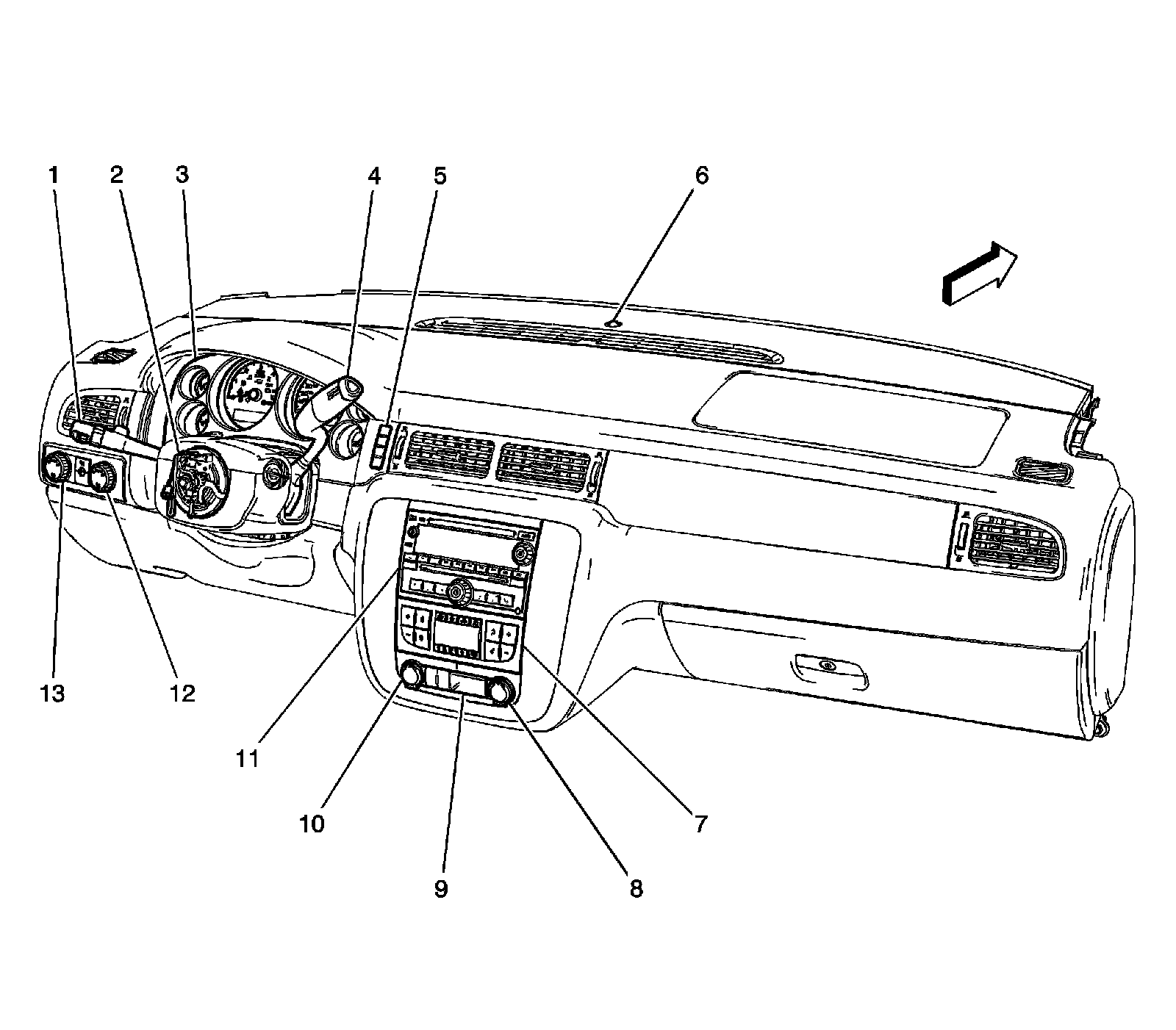

Front of the I/P (Except Z75):

1 - Turn Signal Multifunction Switch
2 - Inflatable Restraint Steering Wheel Module Coil
3 - Instrument Panel Cluster (IPC)
4 - Tow/Haul Switch
5 - Driver Information Center (DIC) Switch
6 - Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3)
7 - HVAC Control Module
8 - Auxiliary Power Outlet - Front 2
9 - I/P Multifunction Switch Assembly
10 - Auxiliary Power Outlet - Front 1
11 - Radio
12 - Transfer Case Shift Control Switch
13 - Headlamp and Panel Dimmer Switch

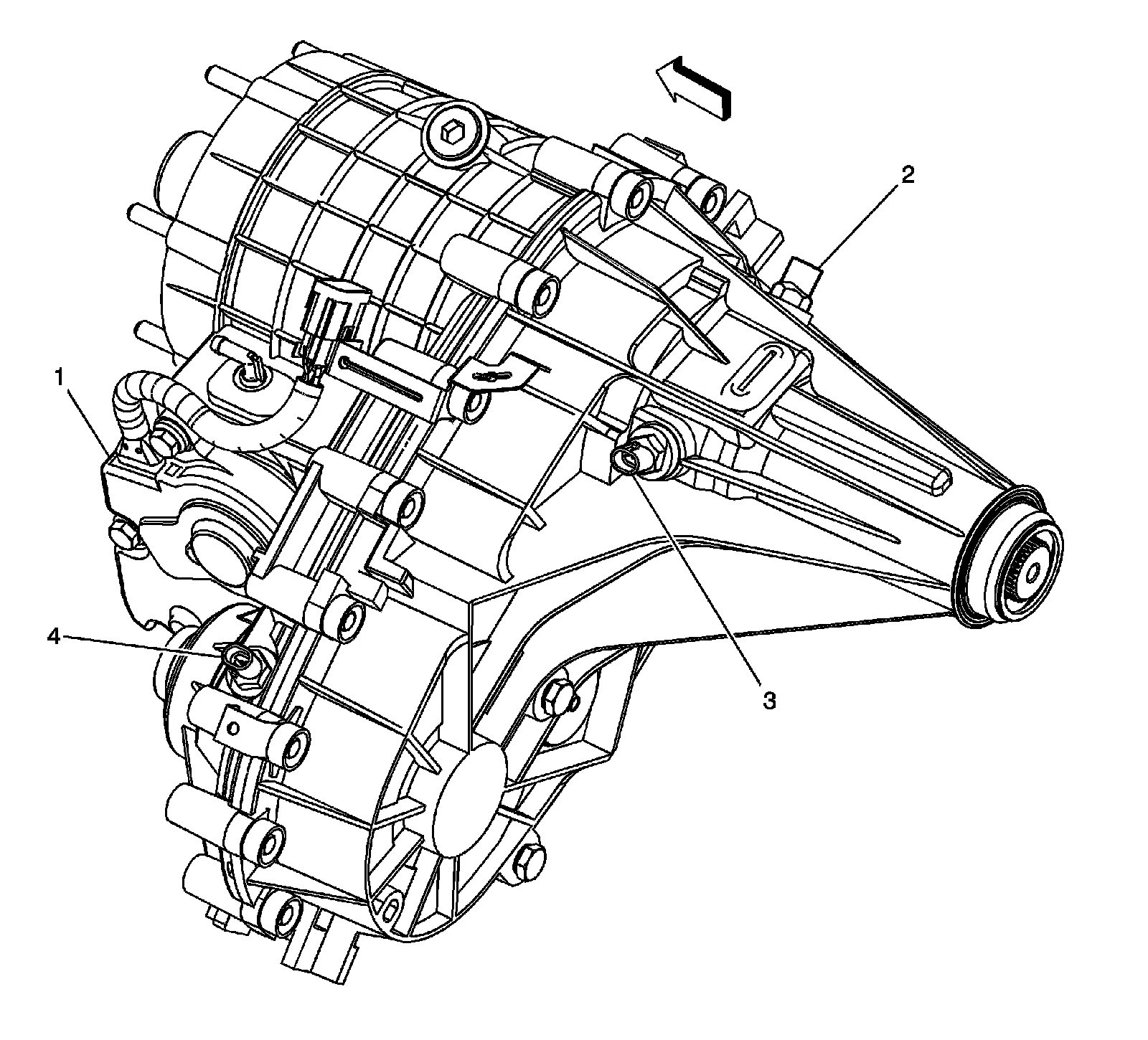

Transfer Case:

1 - Transfer Case Encoder Motor
2 - Propshaft Speed Sensor - Rear
3 - Vehicle Speed Sensor (VSS)
4 - Propshaft Speed Sensor - Front
