Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

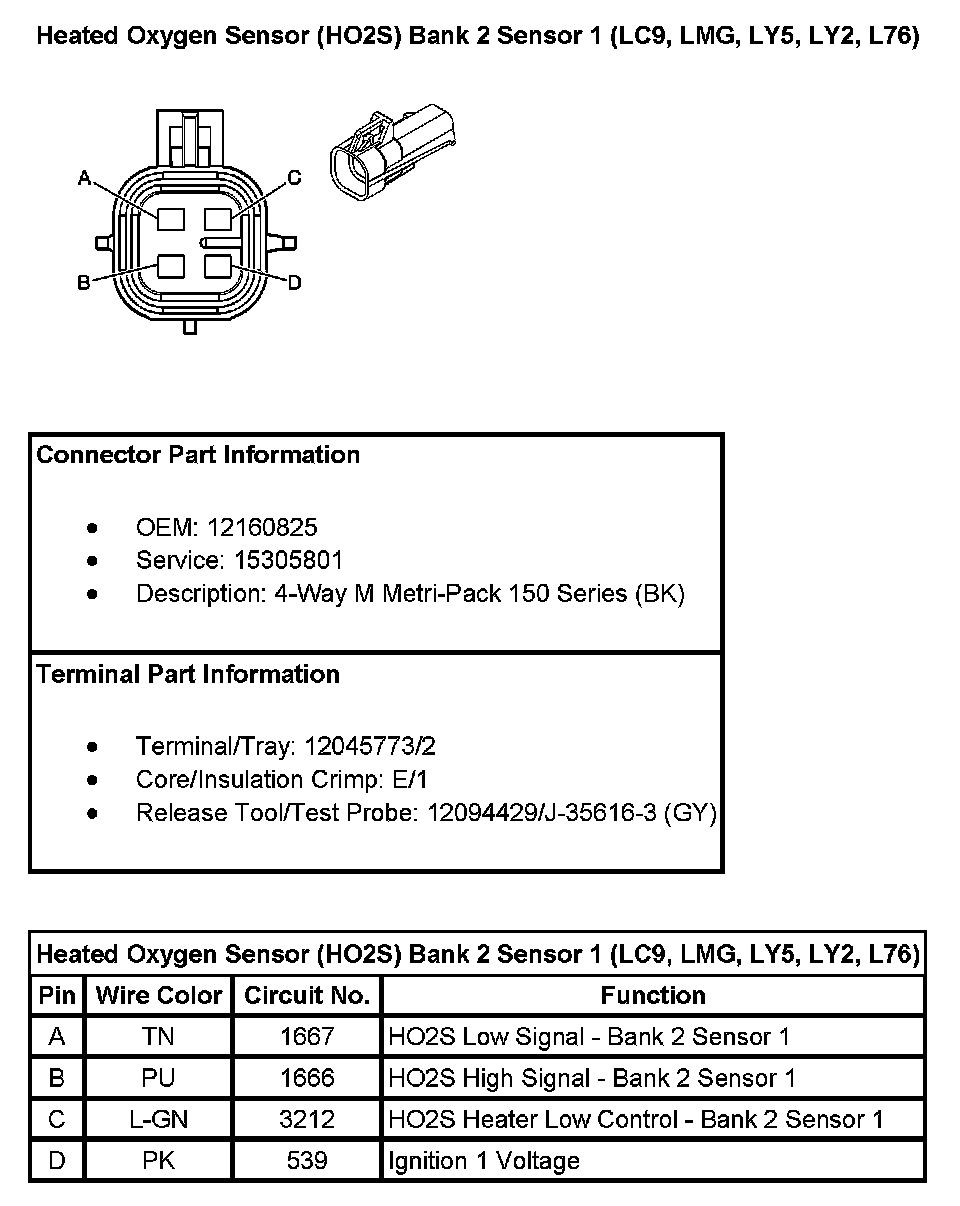

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LC9, LMG, LY5, LY2, L76):
