Connector Views



Immobilizer Connector End Views

Hood Ajar Switch (UA2)

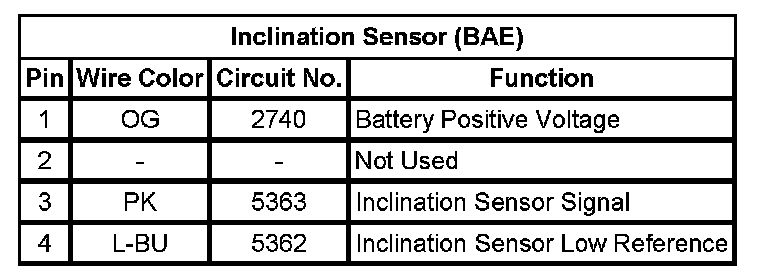

Inclination Sensor (BAE)














Passlock Sensor (w/o BAE)

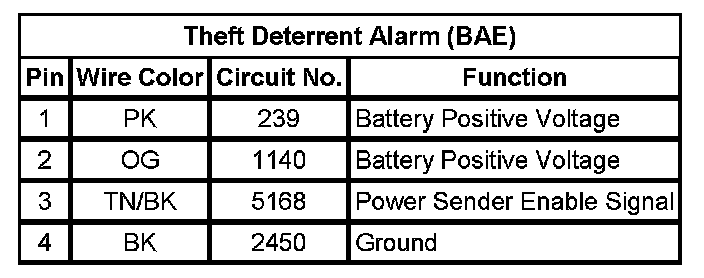

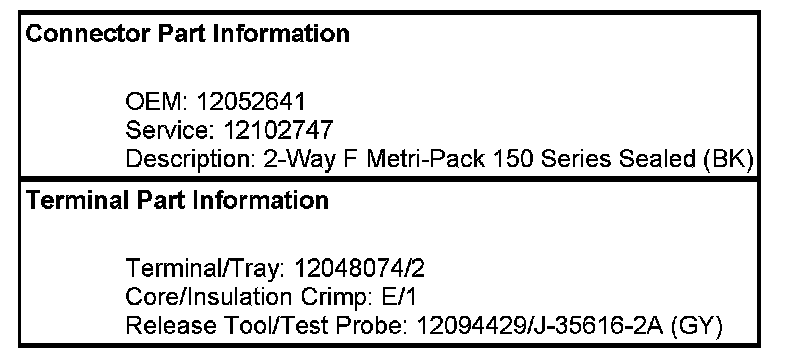

Theft Deterrent Alarm (BAE)














Theft Deterrent Control Module (BAE)
