Front of Vehicle (With RPO Code X88)

Entertainment/Communication Component Views

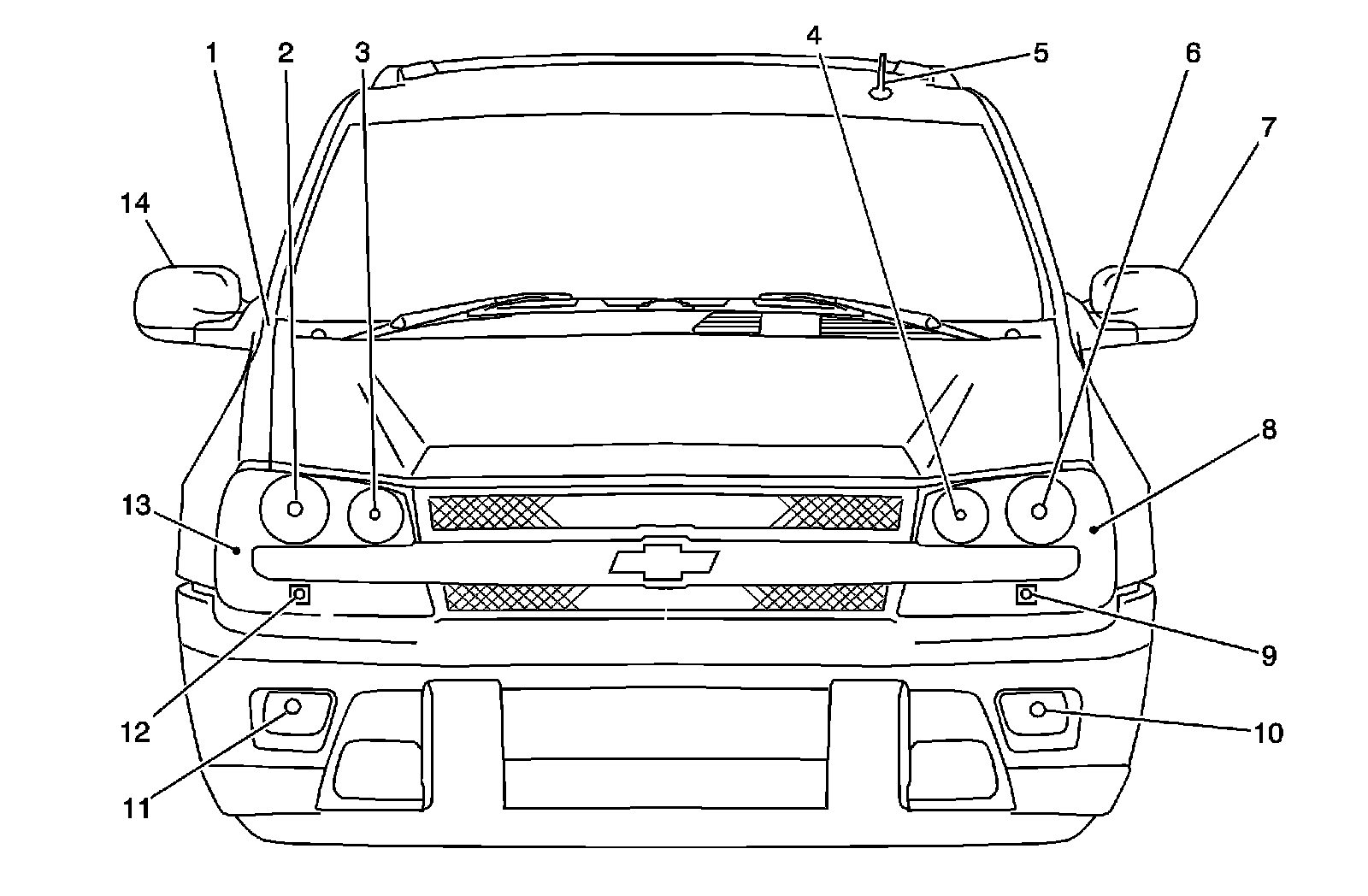

Front of Vehicle (X88)




1 - Radio Antenna
2 - Headlamp - High Beam - Right
3 - Headlamp - Low Beam - Right
4 - Headlamp - Low Beam - Left
5 - Cellular Antenna (UE1)
6 - Headlamp - High Beam - Left
7 - Outside Rearview Mirror - Driver
8 - Marker Lamp - LF
9 - Park/Turn Signal lamp - LF
10 - Fog Lamp - LF (T96)
11 - Fog Lamp - RF (T96)
12 - Park/Turn Signal lamp - RF
13 - Marker Lamp - RF
14 - Outside Rearview Mirror - Passenger
