Air Suspension Compressor Assembly C1



Air Suspension Compressor Assembly C1

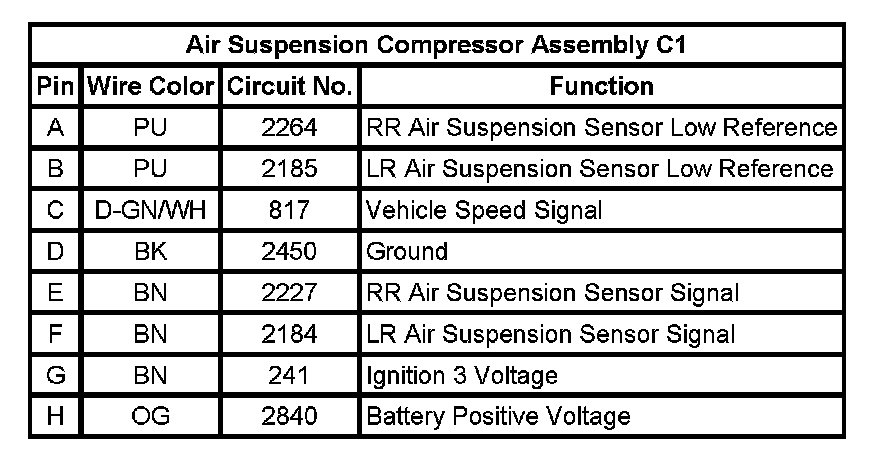

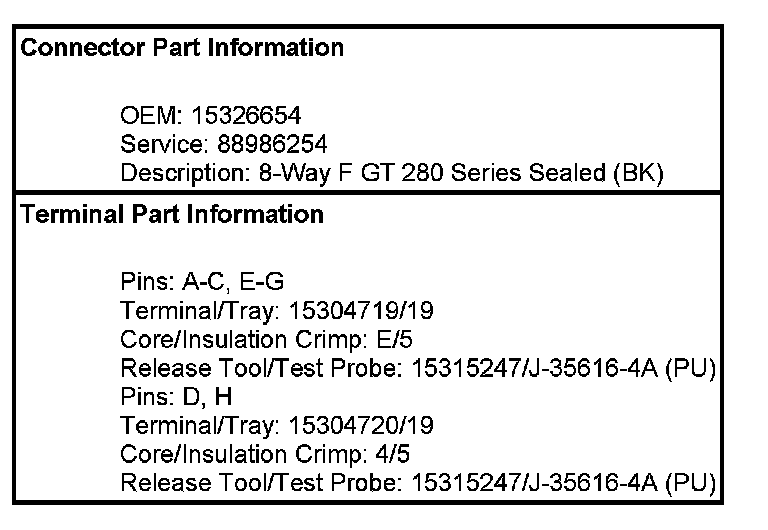

Air Suspension Compressor Assembly C1:
