Power Seat Motor Position Sensor
>>
Seat Position Sensor
Seat Position Sensor
Seat Position Sensor - Front (w/Memory):

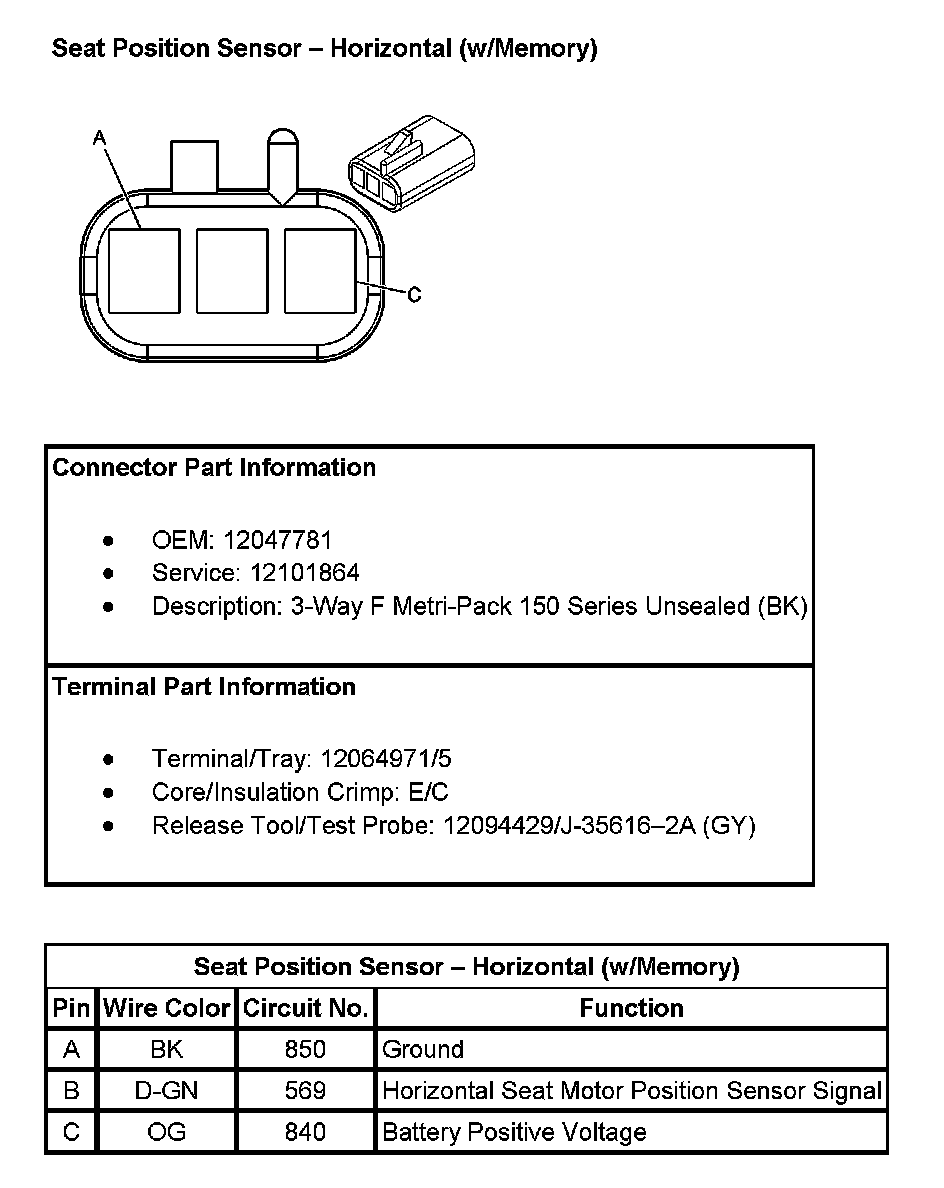

Seat Position Sensor - Horizontal (w/Memory):

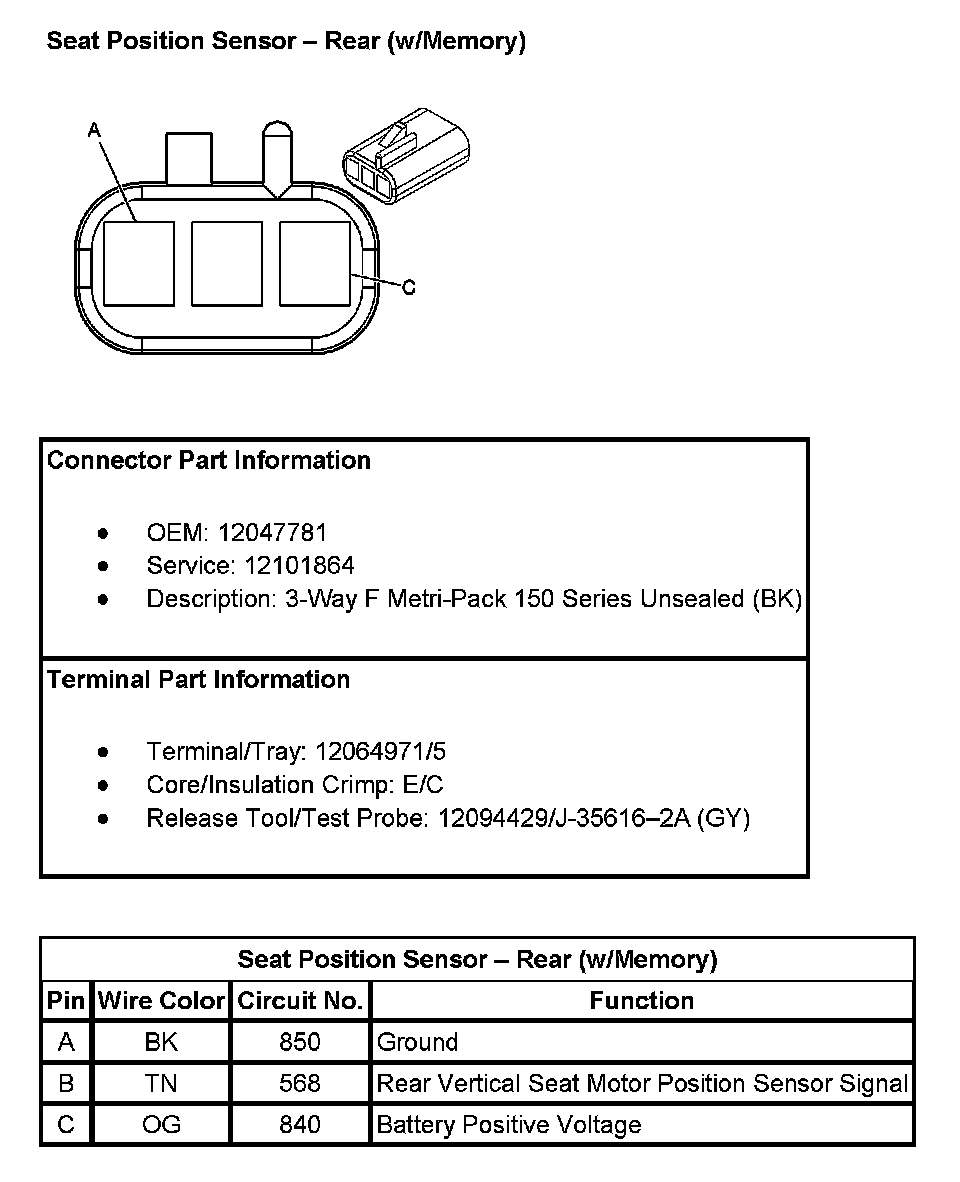

Seat Position Sensor - Rear (w/Memory):

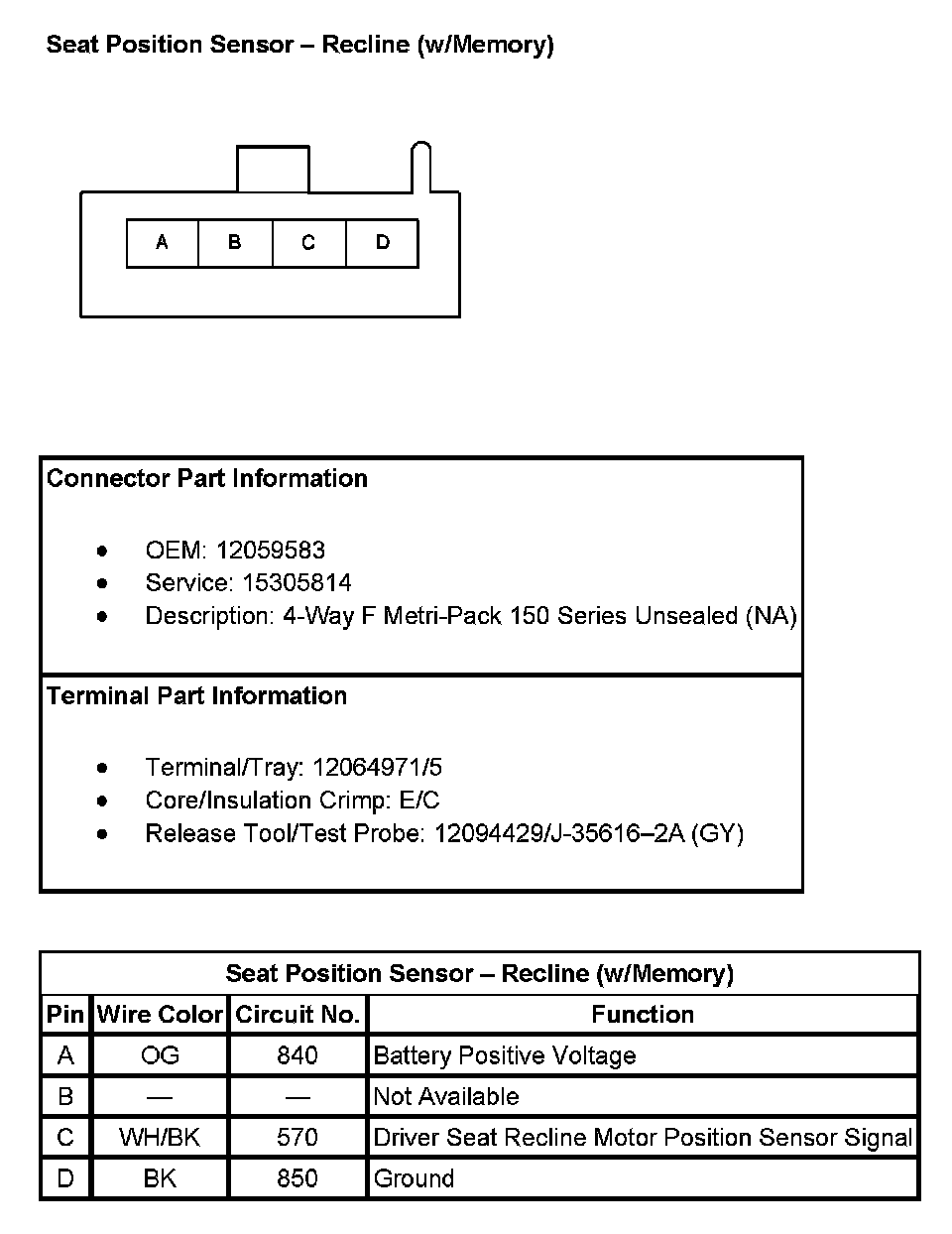

Seat Position Sensor - Recline (w/Memory):
